Parking space guidance controller

outdoor area controller KT-WB18

Technical parameters

Shell material: galvanized sheet

Communication method: 1 channel RF470MHz, 1 channel CAN, 1 channel RS485

Working voltage: AC 110～240V

Working temperature: -30℃ ~ +75℃

Environmental humidity: ≤90%RH (no condensation)

Power consumption: ≤2W

Communication distance: CAN: ≤1000m

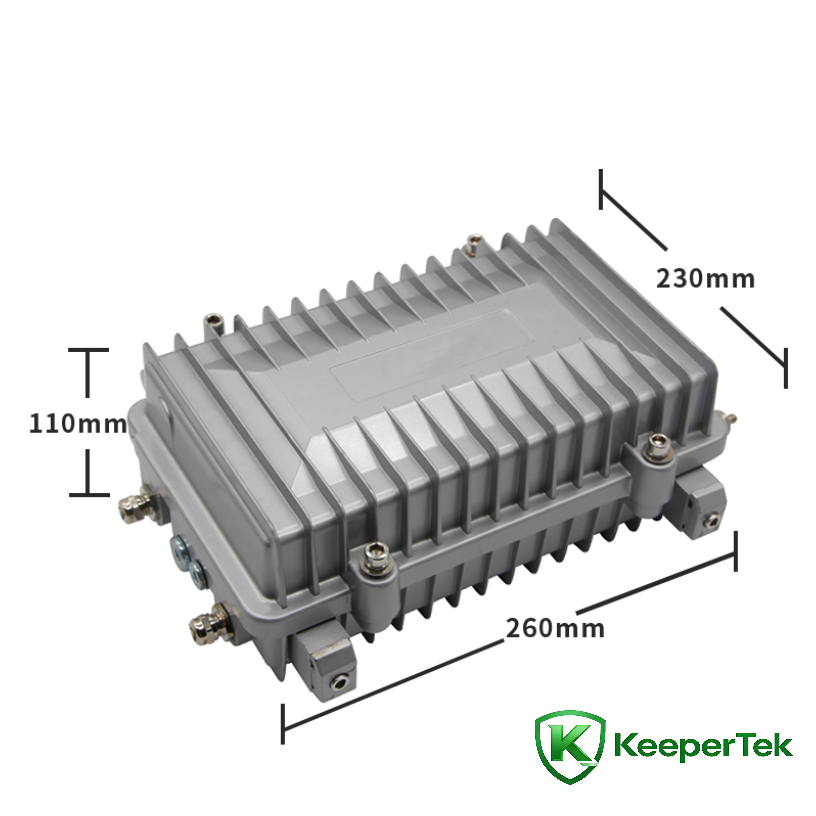

Specification size: 260*230*110mm

Applicable systems: outdoor parking guidance system

Features

The outdoor area controller is used to connect the centralized controller and dual-mode geomagnetic parking space detectors, guidance screens, etc. The outdoor area controller collects the status information of all geomagnetic parking space detectors in its area in real time through RF470MHz wireless communication, and uploads the status information of all parking spaces to the outdoor centralized controller. The protection level of the outdoor area controller is as high as IP66, which can effectively cope with the harsh environment of outdoor parking lots.

Adopt the nearby power supply method and wireless communication with the detector to reduce construction wiring and later maintenance costs.

Adopting the internationally advanced 32-bit ARM processor and fully industrial-grade design to ensure the stability and reliability of the product

The controller adopts waterproof and dustproof design, with a protection level of IP66, adapting to the requirements of harsh outdoor environments.

Multi-level routing with outdoor centralized controller, the system has strong networking capabilities

Customizable communication methods
