Parking space guidance controller

Outdoor centralized control device KT-WB19

Technical parameters

Shell material: galvanized sheet

Communication method: Ethernet/CAN

Working voltage: AC 110～240V

Working temperature: -30℃ ~ +75℃

Environmental humidity: ≤90%RH (no condensation)

Power consumption: ≤2W

Communication distance: CAN: ≤1000m

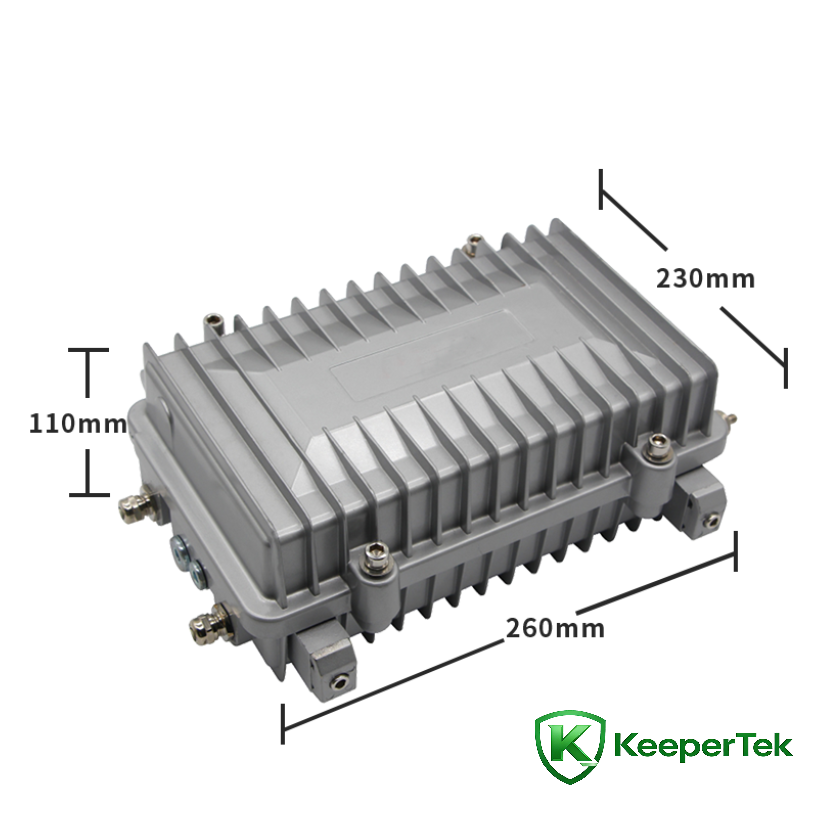

Specification size: 260*230*110mm

Applicable systems: outdoor parking guidance system

Features

The outdoor centralized controller is the core of the collection and control center of the entire intelligent parking guidance system. It realizes the guidance function of the vehicle by updating the real-time data of the parking guidance screen. An outdoor wired centralized controller can control up to 30,000 parking spaces.

Adopting the internationally advanced 32-bit ARM processor and fully industrial-grade design to ensure the stability and reliability of the product

The entire system controller can be remotely upgraded to facilitate system maintenance and upgrades and meet user needs at all times.

The equipment has short circuit, overvoltage, and overload protection functions to prevent electrical damage to related equipment due to wiring errors during construction.

The overall design is industrialized and has undergone strict tests on static electricity, lightning strikes, surges, and group pulses to effectively ensure the reliable use of the equipment.

The outdoor wired centralized controller can manage up to 256 partitions (that is, the parking spaces can be divided into 256 areas and associated with the guidance screen)

The partition information is not affected by the physical location of the detector and display screen, and can be associated with any detector and display screen underneath it.

After the related information is downloaded, the related information is automatically saved and can run independently and correctly without the computer.
