Parking space guidance controller

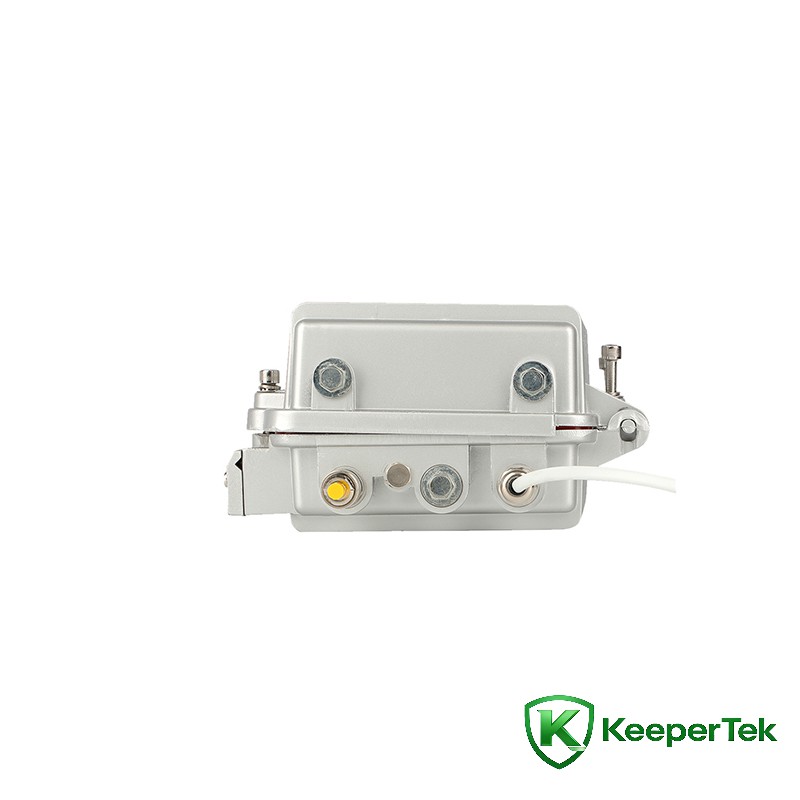

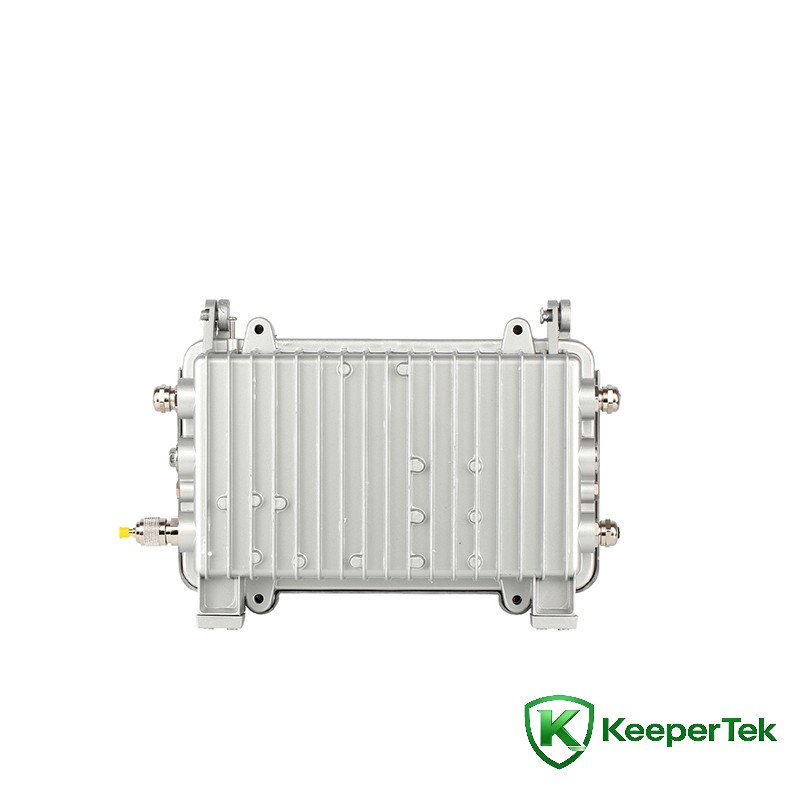

Outdoor node control device KT-WB17

Technical parameters

Shell material: galvanized sheet

Communication method: 2-way CAN@20Kbps

Working voltage: AC 110～240V

Working temperature: -30℃ ~ +75℃

Environmental humidity: ≤90%RH (no condensation)

Power consumption: ≤2W

Communication distance: CAN: ≤1000m

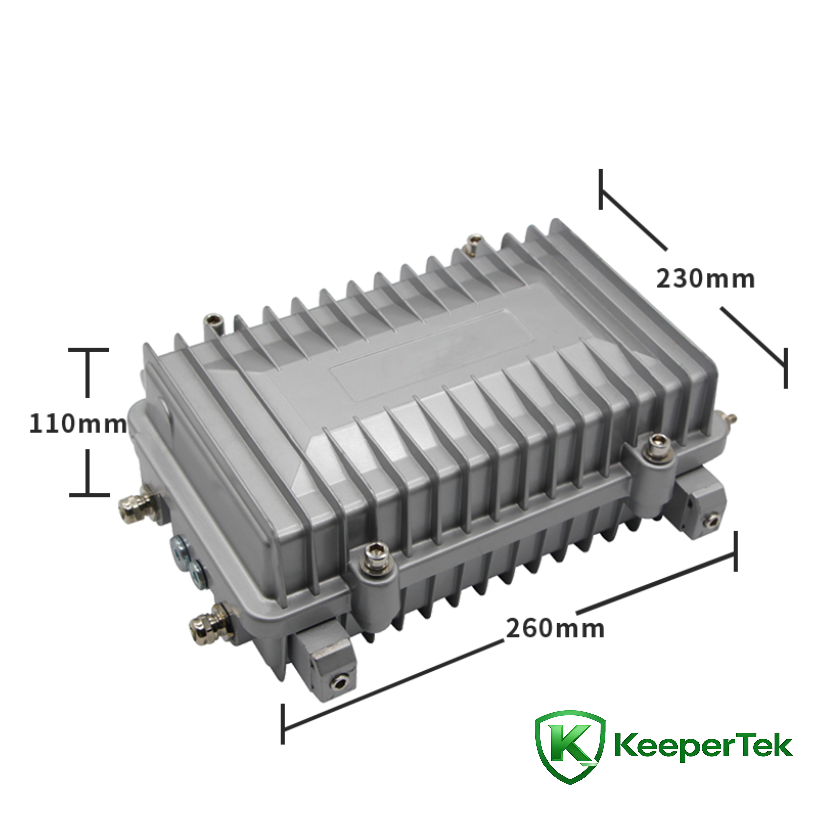

Specification size: 260*230*110mm

Applicable systems: outdoor parking guidance system

Features

The outdoor node controller summarizes all parking space information in the area and uploads the data encoding to the centralized controller. At the same time, it receives the available parking space information data from the centralized controller and then transmits it down to the outdoor area controller. Outdoor node controllers can effectively solve the problem of insufficient capacity of outdoor controller equipment in large-scale networking. ； And when used in parking lots with complex building structures, it can effectively ensure the stability of system communication.

The partition information is not affected by the physical location of the detector and display screen, and can be associated with any detector and display screen underneath it.

The overall design is industrialized and has undergone strict tests on static electricity, lightning strikes, surges, and group pulses to effectively ensure the reliable use of the equipment.

Adopting CAN bus industrial-grade communication design, signal communication is stable and reliable, and the transmission distance can reach 1 km.

Adopting the internationally advanced 32-bit ARM processor and fully industrial-grade design to ensure the stability and reliability of the product

After the related information is downloaded, the related information is automatically saved and can run independently and correctly without the computer.

The equipment has short circuit, overvoltage, and overload protection functions to prevent electrical damage to related equipment due to wiring errors during construction.

The overall design is industrialized and has undergone strict tests on static electricity, lightning strikes, surges, and group pulses to effectively ensure the reliable use of the equipment.

It can carry out group management for regional control, realize optimized management of network communication, and realize functions such as data conversion and data group processing.
