Parking space guidance controller

indoor area controller KT-WB12

Technical parameters

Shell material: galvanized sheet

Communication method: 1 channel CAN, 2 channels RS485

Working voltage: AC 110～240V

Working temperature: -30℃ ~ +75℃

Net weight: 3.5Kg

Environmental humidity: ≤90%RH (no condensation)

Power consumption: ≤2W

Communication distance: CAN: ≤1000m RS485: ≤300m

Node capacity: 25

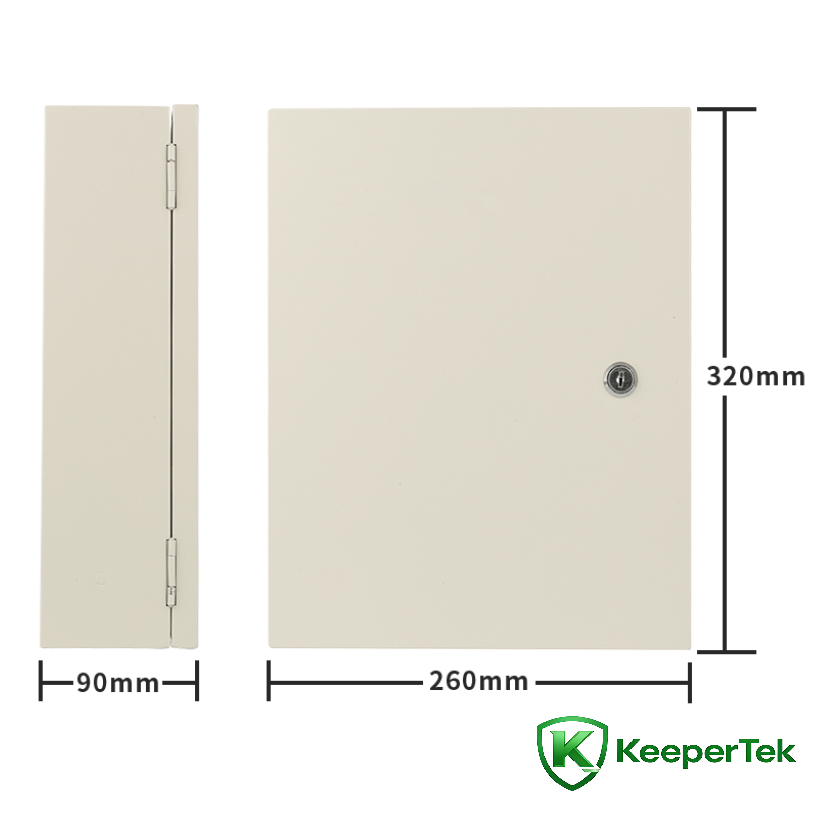

Specification size: 320*260*90mm

Applicable systems: indoor ultrasonic parking space guidance system

Features

The indoor area controller is used to cyclically detect the status of the connected detectors and upload relevant information to the upper-level controller. Adopt RS485, CAN bus (or Ethernet) hybrid communication mechanism to solve the problems of unreliable long-distance communication, expansion of the number of network nodes, group management problems, etc.

Adopting the internationally advanced 32-bit ARM processor and fully industrial-grade design to ensure the stability and reliability of the product

The entire system controller can be remotely upgraded to facilitate system maintenance and upgrades and meet user needs at all times.

Using CAN (or Ethernet) and RS485 hybrid networking, it has strong networking capability, stable and reliable data communication, and long transmission distance

Independent dual-channel RS485 interface design, capable of managing 60 detectors or guidance screens

The equipment has short circuit, overvoltage, and overload protection functions to prevent electrical damage to related equipment caused by wiring errors during construction.

The overall design is industrialized and has undergone strict tests on static electricity, lightning strikes, surges, and group pulses to effectively ensure the reliable use of the equipment.

It can quickly and effectively detect various statuses of the equipment. After the installation is completed, one-click detection of the RS485 equipment communication status can be performed to quickly diagnose the bus connection status.
