Parking space guidance controller

indoor wireless zone controller KT-WB13

Technical parameters

Shell material: galvanized sheet

Communication method: 1 channel CAN, 1 channel RS485, 1 channel RF470MHz

Working voltage: AC 110～240V

Working temperature: -30℃ ~ +75℃

Net weight: 3.5Kg

Environmental humidity: ≤90%RH (no condensation)

Power consumption: ≤2W

Communication distance: CAN: ≤1000m RS485: ≤300m

Node capacity: 25

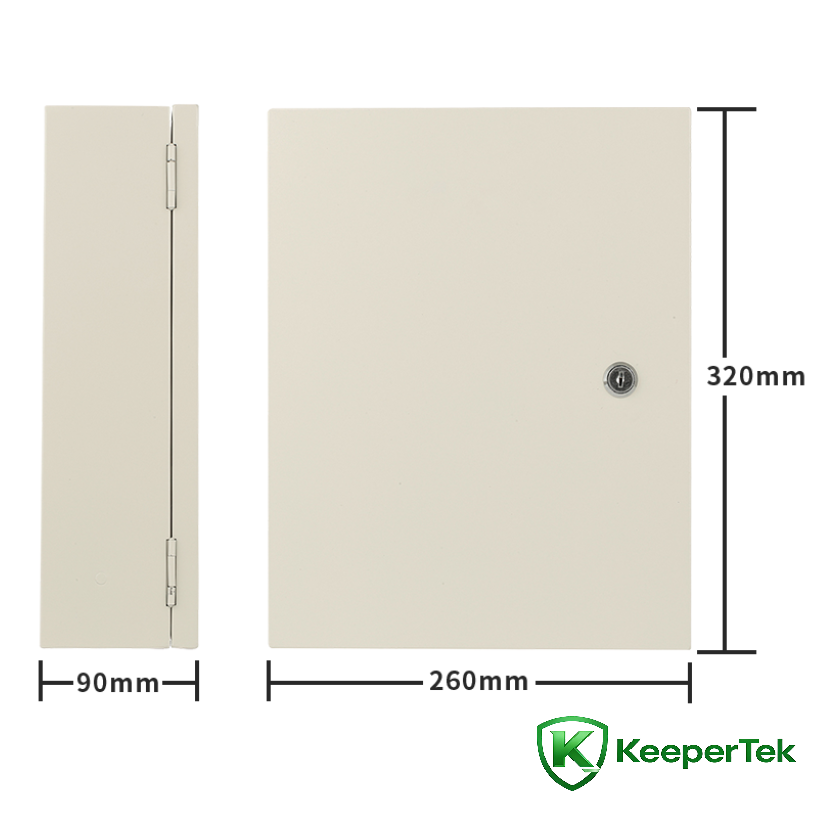

Specification size: 320*260*90mm

Applicable system: Three-dimensional garage parking space guidance system

Features

The indoor wireless area controller manages its subordinate wireless devices (wireless parking space indicators, wireless parking space detectors) and uploads parking space status information to the centralized controller. At the same time, the indoor wireless area controller is compatible with system wired devices, fully satisfying the use of parking lots where mechanical parking spaces and ordinary parking spaces are mixed.

Adopting the internationally advanced 32-bit ARM processor and fully industrial-grade design to ensure the stability and reliability of the product

The entire system controller can be remotely upgraded to facilitate system maintenance and upgrades and meet user needs at all times.

Adopt wireless networking multi-channel network design to avoid internal networking wireless interference and prevent external wireless communication crosstalk

The equipment has short circuit, overvoltage, and overload protection functions to prevent electrical damage to related equipment due to wiring errors during construction.

The overall design is industrialized and has undergone strict tests on static electricity, lightning strikes, surges, and group pulses to effectively ensure the reliable use of the equipment.

Reserved industrial isolation level isolation RS-485 interface, allowing the perfect integration of wired equipment and wireless equipment, and high flexibility of use

Support remote upgrade
