Parking space guidance controller

Indoor node control device KT-WB11

Technical parameters

Shell material: galvanized sheet

Communication method: 2-way CAN@20kbps

Working voltage: AC 110～240V

Working temperature: -30℃ ~ +75℃

Net weight: 3.2Kg

Environmental humidity: ≤90%RH (no condensation)

Power consumption: ≤2W

Communication distance: ≤1000m

Node capacity: 25

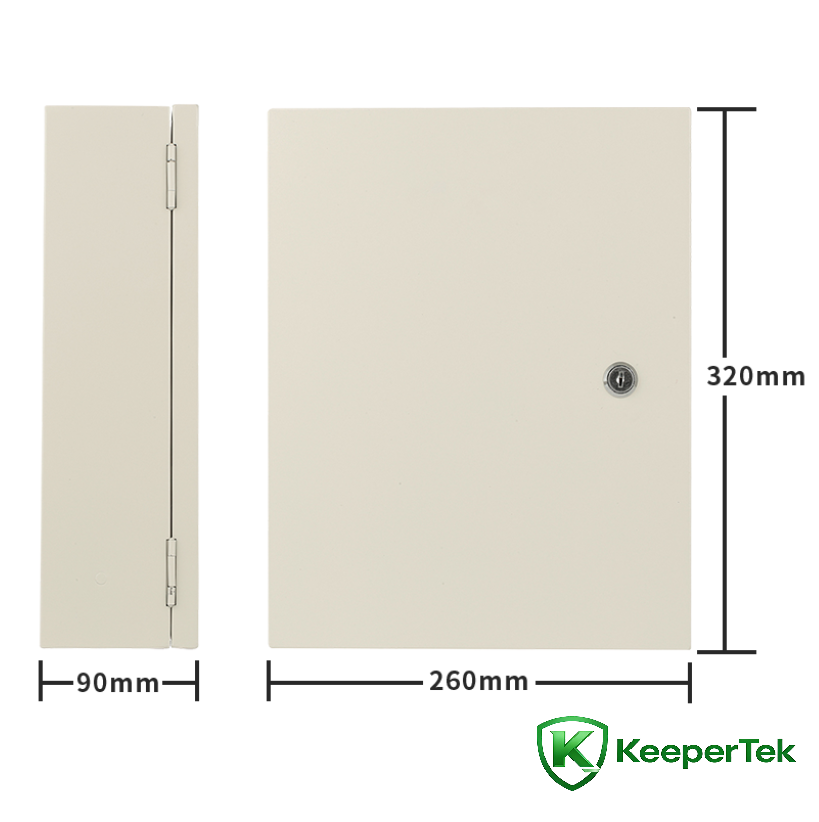

Specification size: 320*260*90mm

Applicable systems: indoor ultrasonic parking space guidance system

Features

The indoor node controller summarizes all parking space information in the area and uploads the data encoding to the indoor centralized controller. At the same time, it receives the available parking space information data from the indoor centralized controller and then downloads it to the indoor area controller. Indoor node controllers can effectively solve the problem of insufficient indoor node controller equipment capacity in large-scale networking ； Or used in parking lots with complex structures, which can effectively ensure the stability of system communication.

Adopting the internationally advanced 32-bit ARM processor and fully industrial-grade design to ensure the stability and reliability of the product

The entire system controller can be remotely upgraded to facilitate system maintenance and upgrades and meet user needs at all times.

Adopting CAN bus industrial-grade communication design, signal communication is stable and reliable, and the transmission distance can reach 1 km.

The equipment has short circuit, overvoltage, and overload protection functions to prevent electrical damage to related equipment due to wiring errors during construction.

The overall design is industrialized and has undergone strict tests on static electricity, lightning strikes, surges, and group pulses to effectively ensure the reliable use of the equipment.

It can carry out group management for regional control, realize optimized management of network communication, and realize functions such as data conversion and data group processing.

Support remote upgrade.
