Non-motor vehicle charging equipment

Technical parameters

Appearance material: sheet metal + tempered glass:

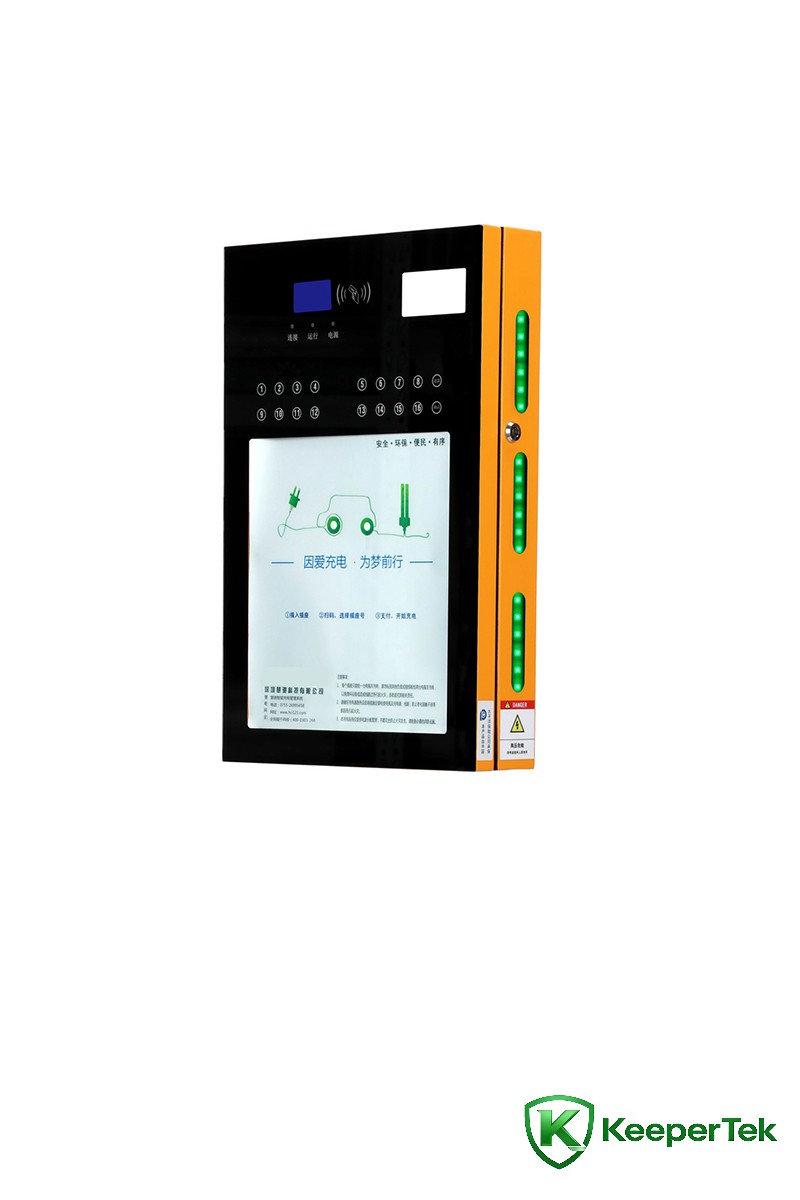

Installation method: wall-mounted\floor-standing (with column)

*Number of charging channels (channels): 4\8\12\16 (can be customized):

Input voltage: AC220V±10%

Input frequency: 50±10Hz:

Output voltage: AC220V±10%

Output power: single channel maximum load 3500W:

Standby power: ≦0.7～2W

Current size: 0.1～20A (can be set):

Current detection: supports real-time monitoring of dynamic current 10 times/second

*Human-machine interface: LCD display, LED indicator light (can be customized):

Operation instructions: power, operation, communication

Charging mode: auto-stop when full/fixed amount of electricity/fixed amount/fixed time:

*Payment method: pay by card/pay by scanning QR code (can be customized)

Billing mode: counting/timing/metering (can be set):

Communication interface: RS485/2G/4G (optional)

*Data openness: Support third-party software platform access (can be customized):

*Support extension: face recognition (customizable)

Implementation standards: GB\T20234, GB\T18487, NB\T33008, NB\T33002

Management features: power-off memory, settable rates, black and white lists, data communications, integrated card

Safety functions: overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, overtemperature protection, lightning protection, leakage protection

Applicable environment: indoor/outdoor

Working temperature: -20℃～+70℃:

Relative humidity: 5% to 95% without condensation

Protection level: IP54:

Optional items: The above * options can be customized

Features

Product Category: 8-way/12-way/16-way

Installation classification: wall-mounted/outdoor/column-mounted

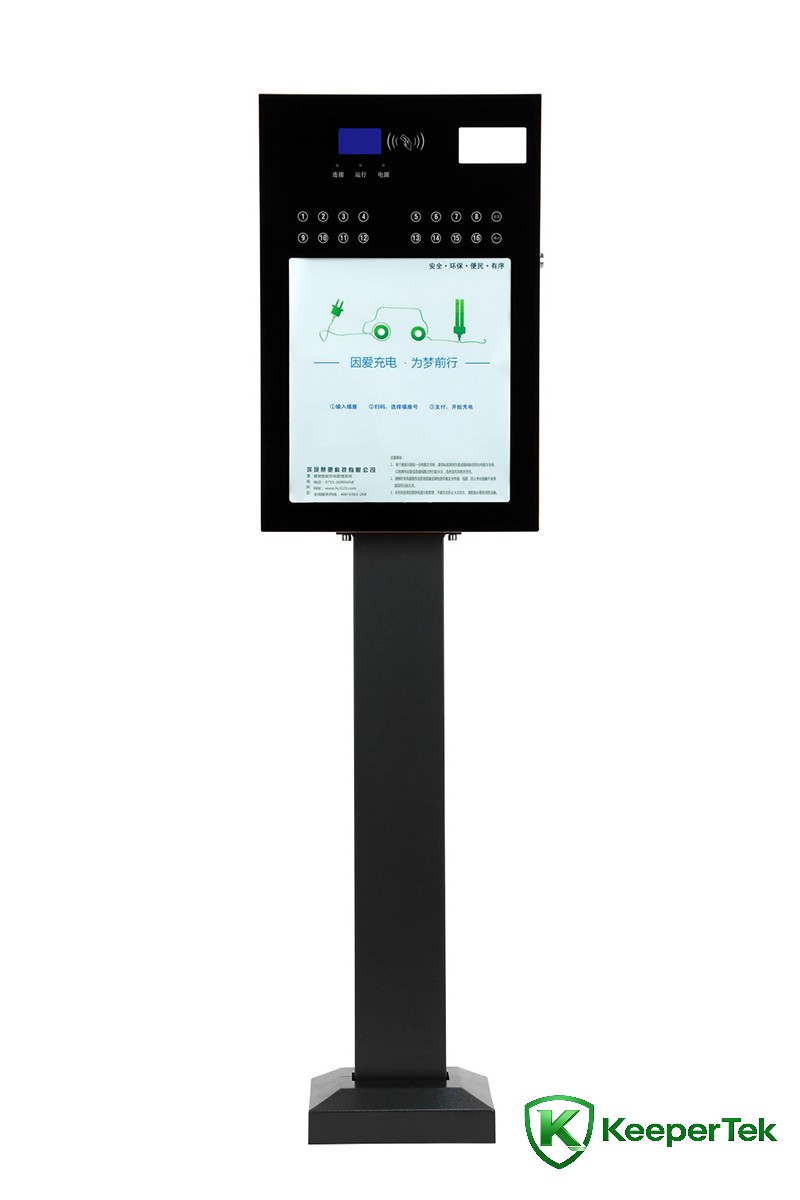

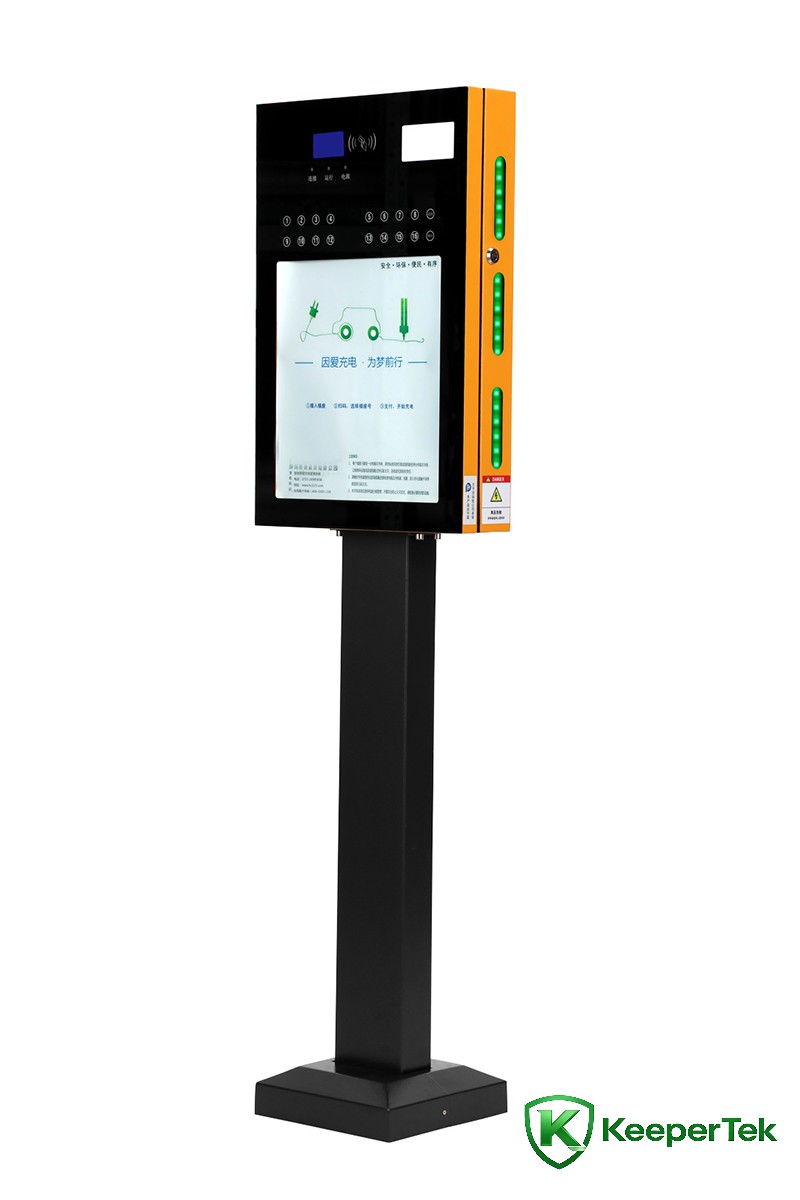

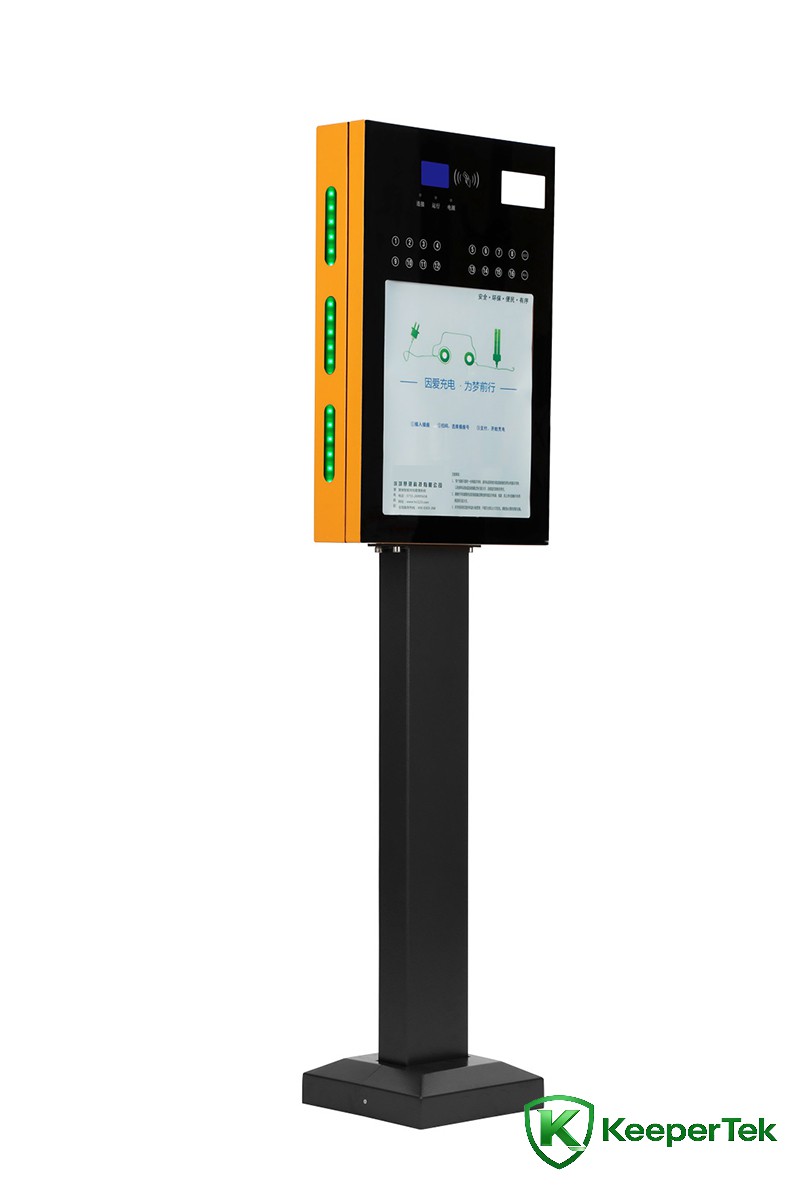

Product description: This product is a 16-way community charging station that can charge 16 electric vehicles at the same time. It has basic functions such as overcharging prevention, overloading, voice prompts, automatic power off, etc. It has scan code payment, swipe card payment, and two-in-one functions, which is safe and convenient.

Product Features: In order to solve the troubles of community property, manage the problem of random parking of electric vehicles, and solve the problem of owners’ difficulty in charging electric vehicles, Huichi intelligent community charging stations are used to provide a full set of community charging supporting facilities solutions to solve charging problems.
