Non-motor vehicle charging equipment

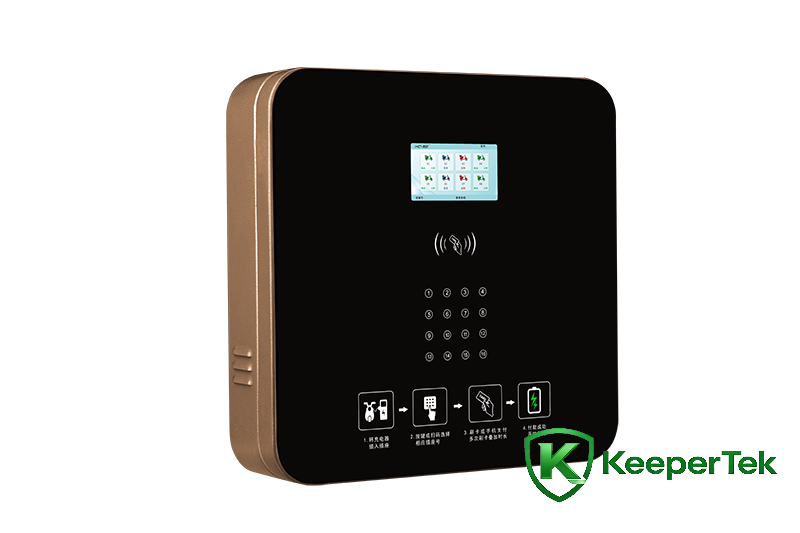

16road Motorcycle wall-mounted charging pile KT-HC15

Technical parameters

Appearance material: sheet metal + tempered glass

Installation method: wall-mounted\column type (optional column)

*Number of charging channels (channels): 16 channels

Input voltage: AC220V±10%

Input frequency: 50±1Hz

Output voltage: AC220V±10%

Output power: single channel maximum load 1000W

Standby power: ≦2W

Current size: 0.1～10A (can be set)

Current detection: supports real-time monitoring of dynamic current 10 times/second

*Human-machine interface: 4.3-inch LCD display

Operation instructions: power, operation, communication

Charging mode: automatic stop when full/fixed amount of electricity/fixed time

*Payment method: pay by card/pay by scanning QR code (optional)

Billing mode: counting/timing/metering (can be set)

Communication interface: RS485/4G (optional)

*Data openness: Support third-party software platform access (can be customized)

*Support extension: face recognition (customizable)

Safety design: Implementation standards: GB\T 20234, GB\T 18487, NB\T 33008, NB\T 33002

Management features: power-off memory, settable rates, black and white lists, data communications, integrated card

Safety functions: overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, overtemperature protection, lightning protection, leakage protection

Applicable environment: indoor/outdoor

Working temperature: -20℃～+50℃

Relative humidity: 5% to 95% without condensation

Protection level: IP54

Optional items: The above * options can be customized

Features

Product Category: 16-way

Installation classification: wall-mounted/outdoor/column-mounted

Product description: This product is a 16-way community charging station that can charge 16 electric vehicles at the same time. It has basic functions such as overcharging prevention, overloading, voice prompts, automatic power off, etc. It has scan code payment, swipe card payment, and two-in-one functions, which is safe and convenient.

Product Features: In order to solve the troubles of community property, manage the problem of random parking of electric vehicles, and solve the problem of owners’ difficulty in charging electric vehicles, Huichi intelligent community charging stations are used to provide a full set of community charging supporting facilities solutions to solve charging problems.
