Non-motor vehicle charging equipment

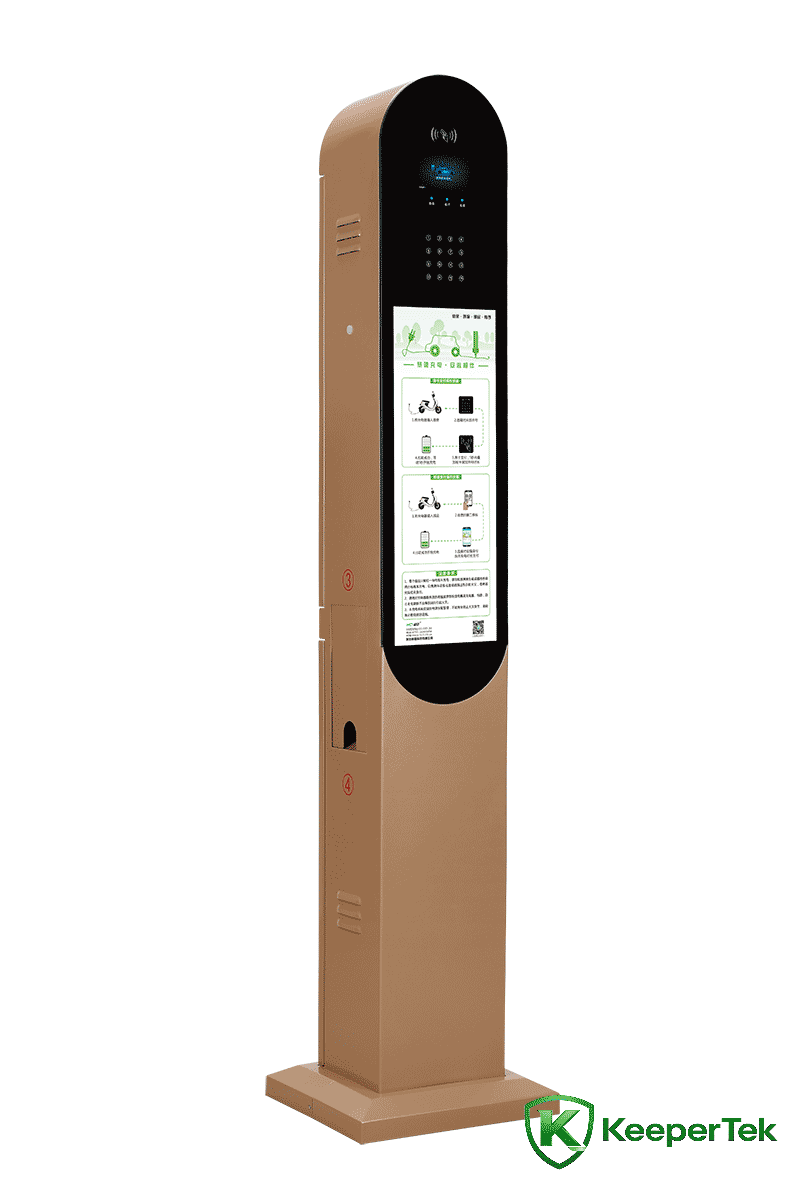

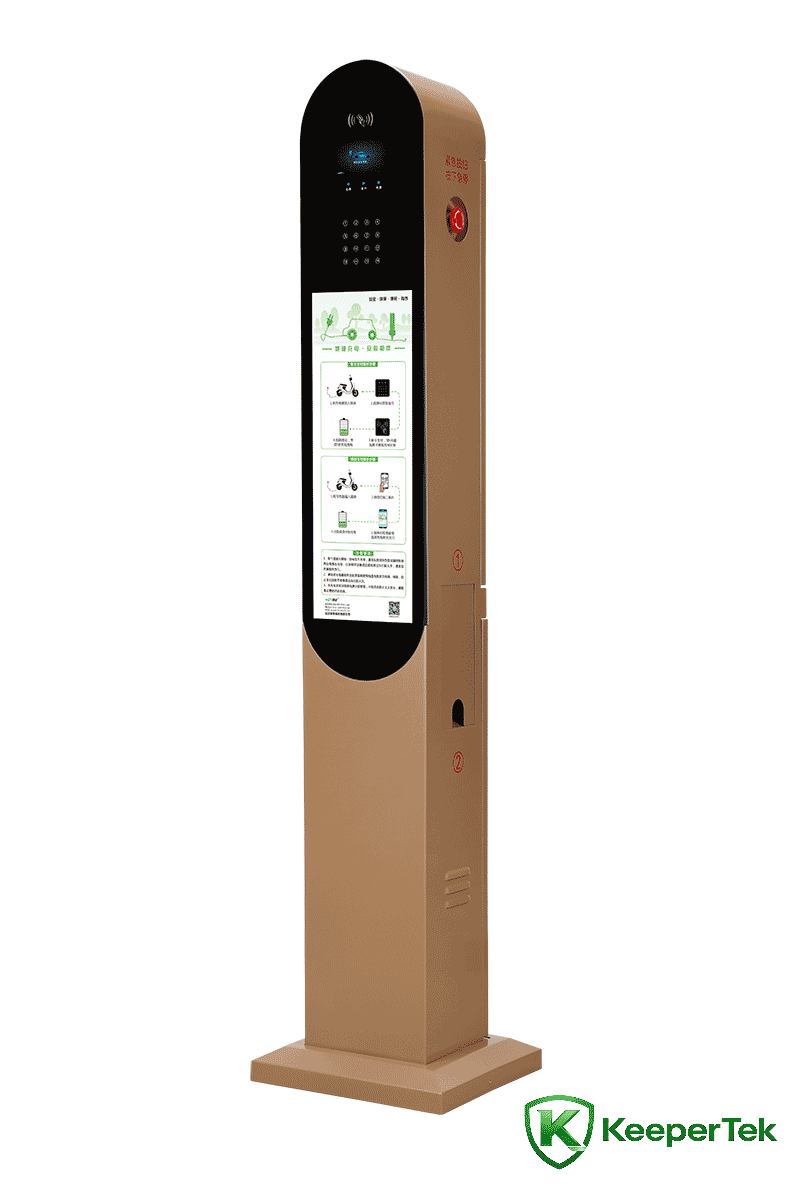

Customized low-speed electric vehicle charging pile KT-HC17

Technical parameters

Appearance material: sheet metal + tempered glass:

Installation method: floor-standing

*Number of charging channels (channels): 2/4 (can be customized):

Input voltage: AC220V±10%

Input frequency: 50±1Hz:

Output voltage: AC220V±10%

Output power: single channel maximum load 3500W:

Standby power: ≦2W

Current size: 0.1～20A (can be set):

Current detection: supports real-time monitoring of dynamic current 10 times/second

*Human-machine interface: 4.3-inch LCD display, LED indicator light (can be customized)

Operation instructions: power, operation, communication

Charging mode: auto-stop when full/fixed amount of electricity/fixed amount/fixed time:

*Payment method: pay by card/pay by scanning QR code (can be customized)

Billing mode: counting/timing/metering (can be set):

Communication interface: RS485/4G (optional)

*Data openness: Support third-party software platform access (can be customized):

*Support extension: face recognition (customizable)

Implementation standards: GB\T 20234, GB\T 18487, NB\T 33008, NB\T 33002

Management features: settable rates, data communication, integrated card

Safety functions: overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, overtemperature protection, lightning protection, emergency stop protection, leakage protection

Applicable environment: indoor/outdoor

Working temperature: -20℃～+50℃:

Relative humidity: 5% to 95% without condensation

Protection level: IP54:

Optional items: The above * options can be customized

Features

The dedicated charging pile for low-speed vehicles has metering and billing, operation platform access functions, and simple and convenient WeChat and Alipay QR code payment functions, so operators can collect payments anytime and anywhere. It can be widely used in tourist attractions, government unit security patrols, urban public law enforcement parking lots, and golf courses to provide AC charging for electric vehicles. It also has advertising functions and meets market demand.

Product description: Charging piles for sightseeing cars, golf carts, electric classic cars, hotel car charging piles, real estate viewing RV charging piles, electric patrol car charging piles, small and medium-sized trucks and various engineering modified vehicles and other industries-specific urban charging piles.
