DC charging pile

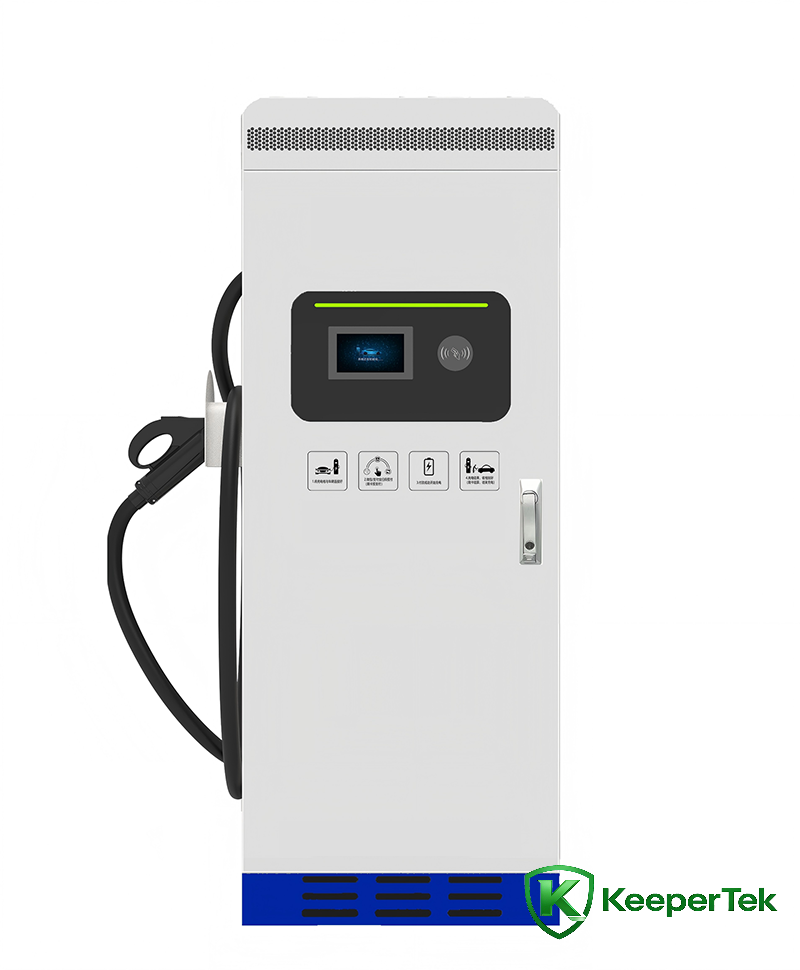

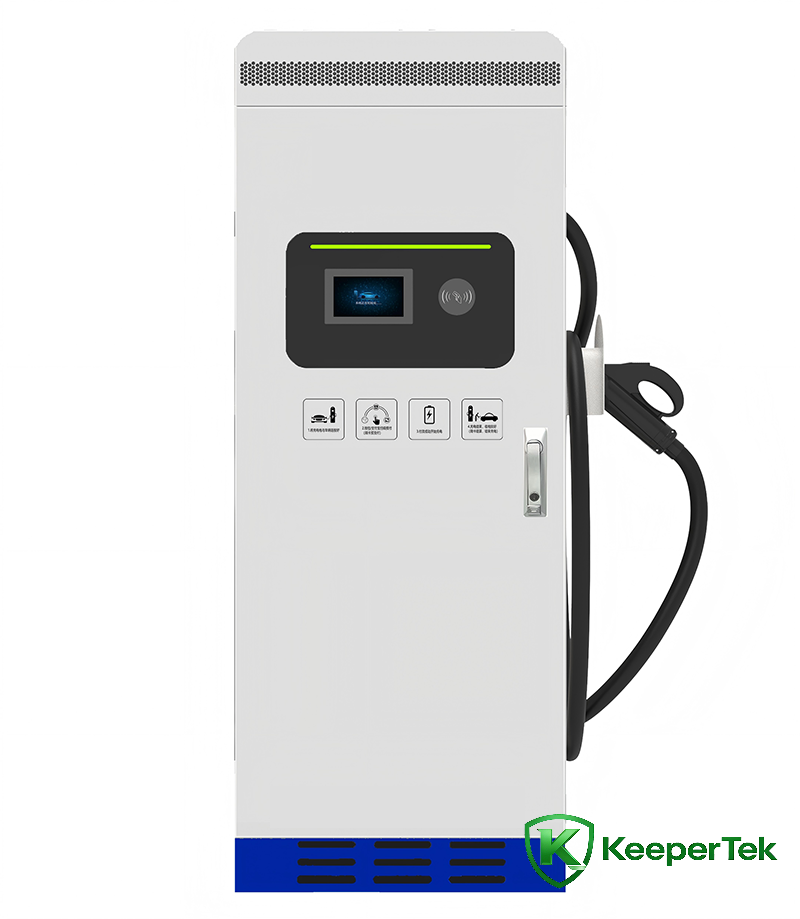

40/60/80KW Floor-standing DC charging pile KT-HC11

Technical parameters

Appearance material: sheet metal + tempered glass

Installation method: floor-standing

Wiring method: bottom in and bottom out

*Charging cable length (m): 5m (can be customized)

Input voltage: AC380V±15%

Input frequency: 50±1Hz

Rated power: 40KW

Output voltage: DC200-1000V

Maximum output current: 134A

Measurement accuracy: 0.5 level

Current limiting protection value: 1.1 times

Human-machine interface: 7-inch LCD touch screen, LED indicator light

Charging mode: auto-stop when fully charged/swipe card to charge

*Payment method: pay by card/pay by scanning QR code (can be customized)

Communication interface: Ethernet/RS485/4G (optional)

Implementation standards: GB/T20234.1-2015, GB/T 27930-2015, NB/T 33008.1-2013, GB/T 29318-2012

Safety functions: overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, overtemperature protection, lightning protection, leakage protection

Applicable environment: indoor/outdoor

Working temperature: -20℃～+50℃

Relative humidity: 5% to 95% without condensation

Protection level: IP54

Cooling method: natural cooling

Optional items: The above * options can be customized

Features

Supports 40/60/80KW multi-power flexible selection, DC fast charging, greatly shortening charging time.

Floor-standing integrated design, stable structure, convenient installation, suitable for various indoor and outdoor scenes.

Wide voltage output DC200-1000V, compatible with most electric vehicles on the market.

Equipped with a high-definition LCD touch screen, it is easy to operate and displays charging data in real time.

Supports multiple activation and payment methods such as card swiping, QR code scanning, and APP to meet operational needs.

It has multiple protections such as overvoltage, undervoltage, overload, short circuit, overtemperature, lightning protection, leakage and emergency stop.

Supports Ethernet and 4G communication, and can be connected to the cloud platform for remote monitoring and management.

Supports electricity billing, time-of-use billing, and rate customization, adapting to commercial operations.

The protection grade is IP54, which can operate stably outdoors and adapt to the environment of -20℃～+50℃.

It supports power-off memory and fault self-diagnosis, and can expand face recognition, license plate recognition, and parking space lock linkage.
