DC charging pile

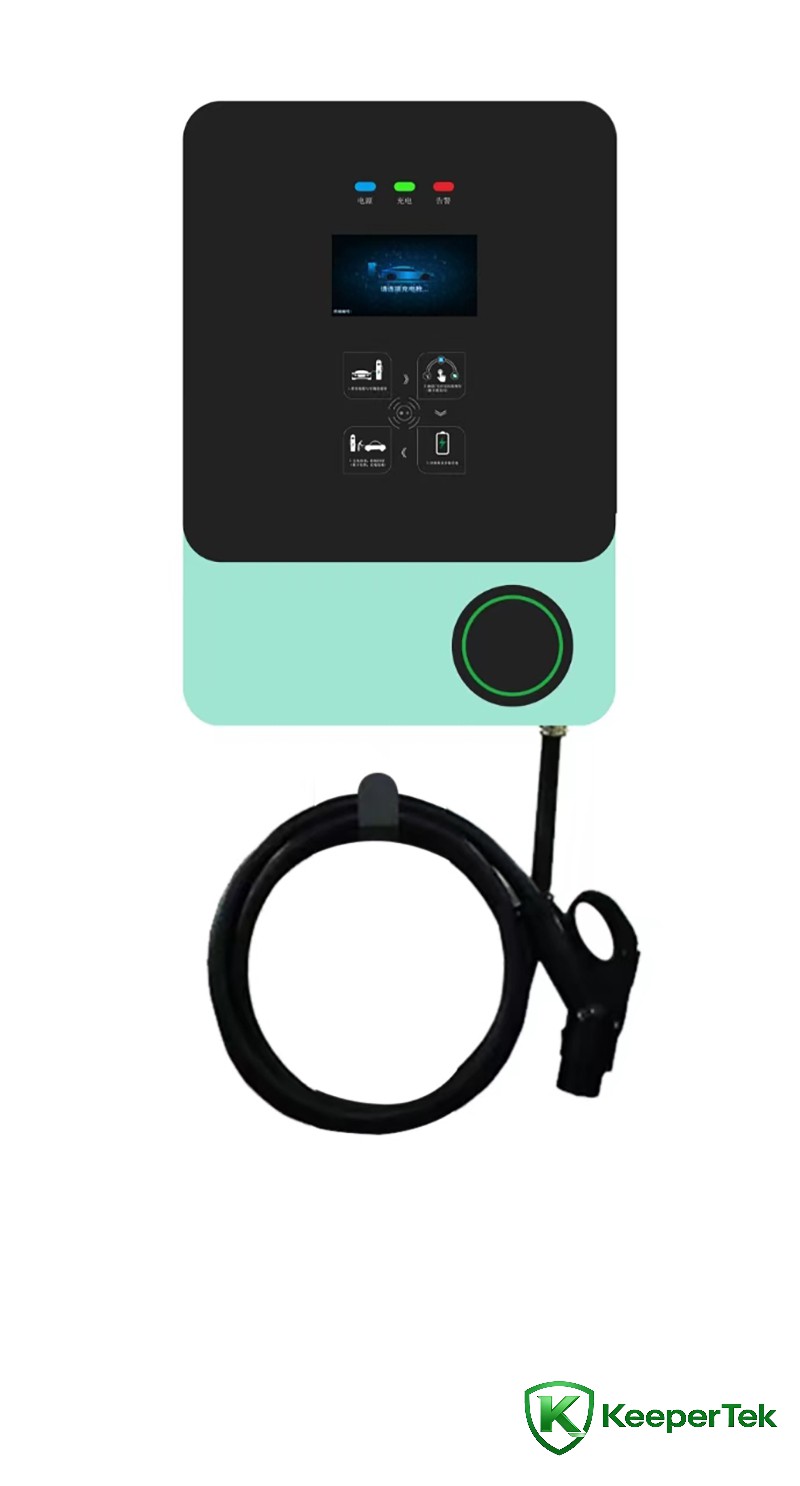

20/30/40/60KW wall hanging/Pole type DC charging pile KT-HC10

Technical parameters

Appearance material: sheet metal + tempered glass:

Installation method: wall-mounted\floor-standing

Wiring method: bottom in and bottom out:

*Charging cable length (m): 5m (can be customized)

Input voltage: AC380V±15%:

Input frequency: 50±1Hz

Rated power: 20KW/30KW/40KW/60KW

Output voltage: DC200-1000V

Output current: 50A*1:

Measurement accuracy: 0.5 level

Current limiting protection value: 1.1 times:

Human-machine interface: 7-inch LCD touch screen, LED indicator light

Charging mode: auto-stop when full/swipe card charging:

*Payment method: pay by card/pay by scanning QR code (optional)

Communication interface: Ethernet/4G (optional):

Implementation standards: GB/T20234.1-2015, GB/T 27930-2015, NB/T 33008.1-2013, GB/T 29318-2012

Safety functions: overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, overtemperature protection, lightning protection, leakage protection

Applicable environment: indoor/outdoor

Working temperature: -20℃～+50℃:

Relative humidity: 5% to 95% without condensation

Protection grade: IP54:

Cooling method: natural cooling

Optional items: The above * options can be customized

Features

Supports 20/30/40/60KW multi-power options, DC fast charging, high charging efficiency, and meets the rapid energy replenishment needs of different models.

Wall-mounted/column dual installation method, compact structure, small footprint, suitable for residential areas, parking lots, service areas and other scenarios.

Equipped with a high-definition display and status indicator light, the charging status, voltage, current, and power data are clear at a glance.

It supports multiple payment methods such as card swiping and QR code scanning, and can be connected to the operation platform to support remote management and time-of-use billing.

It has comprehensive safety protection functions such as overvoltage, undervoltage, overload, short circuit, overtemperature, lightning protection, leakage, and emergency stop.

Supports power-off memory, rate setting, black and white list management, and can expand face recognition, license plate recognition, and parking space lock linkage.
