DC charging pile

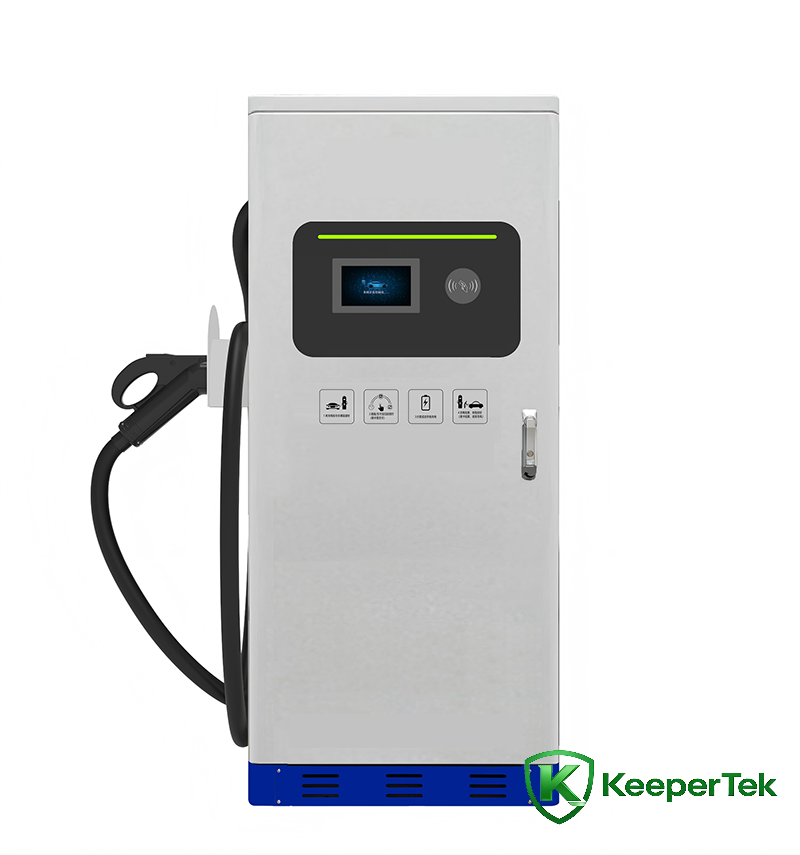

120KW/240KW/360KW/400KW floor-standing DC charging pile KT-HC12

Technical parameters

Appearance material: sheet metal + tempered glass:

Installation method: floor-standing

Wiring method: bottom in and bottom out:

*Charging cable length (m): 5m (can be customized)

Input voltage: AC380V±15%:

Input frequency: 50±1Hz

Rated power: 60KW~240KW:

Output voltage: DC200-1000V

Maximum output current: Maximum 200A/250A:

Smart meter accuracy level: Level 2.0

Current limiting protection value: 1.1 times:

Human-machine interface: 7-inch LCD touch screen, LED indicator light

Operation instructions: power, charging, alarm:

Charging mode: automatic full/fixed power/fixed amount/fixed time

*Payment method: Pay by card/pay by scanning QR code (can be customized):

Metering and billing: electricity billing (accuracy level 1.0)

Communication interface: Ethernet/RS485/4G (optional):

*Data openness: Support third-party software platform access (can be customized)

*Support expansion: face recognition/license plate recognition/parking space lock/parking radar (customizable):

Implementation standards: GB\T 20234, GB\T 18487, NB\T 33008, NB\T 33002

Management features: power-off memory, settable rates, black and white lists, data communications, integrated card:

Safety functions: overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, overtemperature protection, lightning protection, emergency stop protection, leakage protection

Applicable environment: indoor/outdoor:

Working temperature: -20℃～+50℃

Relative humidity: 5% to 95% without condensation:

Protection level: IP54

Cooling method: Intelligent forced air cooling:

Reliability (MTBF): ≥18000h

Optional items: The above * options can be customized

Features

Supports 120/240/360/400KW multi-power segment optional, single and double gun configurations are flexible, meeting high-power DC fast charging needs.

Ultra-wide voltage output DC200?1000V, fully compatible with all types of electric passenger cars, logistics vehicles, buses and other models.

It adopts a high-efficiency rectifier module, has fast charging speed, supports intelligent power distribution, and improves site utilization and operational efficiency.

Equipped with a large high-definition touch screen and status indicator lights, the operation is simple and charging data and fault information can be visualized in real time.

It supports multiple methods such as card swiping, QR code scanning, APP, and contactless payment, and can be connected to the cloud platform to achieve remote management and time-sharing billing.

It has full-dimensional safety protection such as overvoltage, undervoltage, overload, short circuit, overtemperature, lightning protection, leakage, and emergency stop, and the operation is stable and reliable.
