Anti-riot lifting column

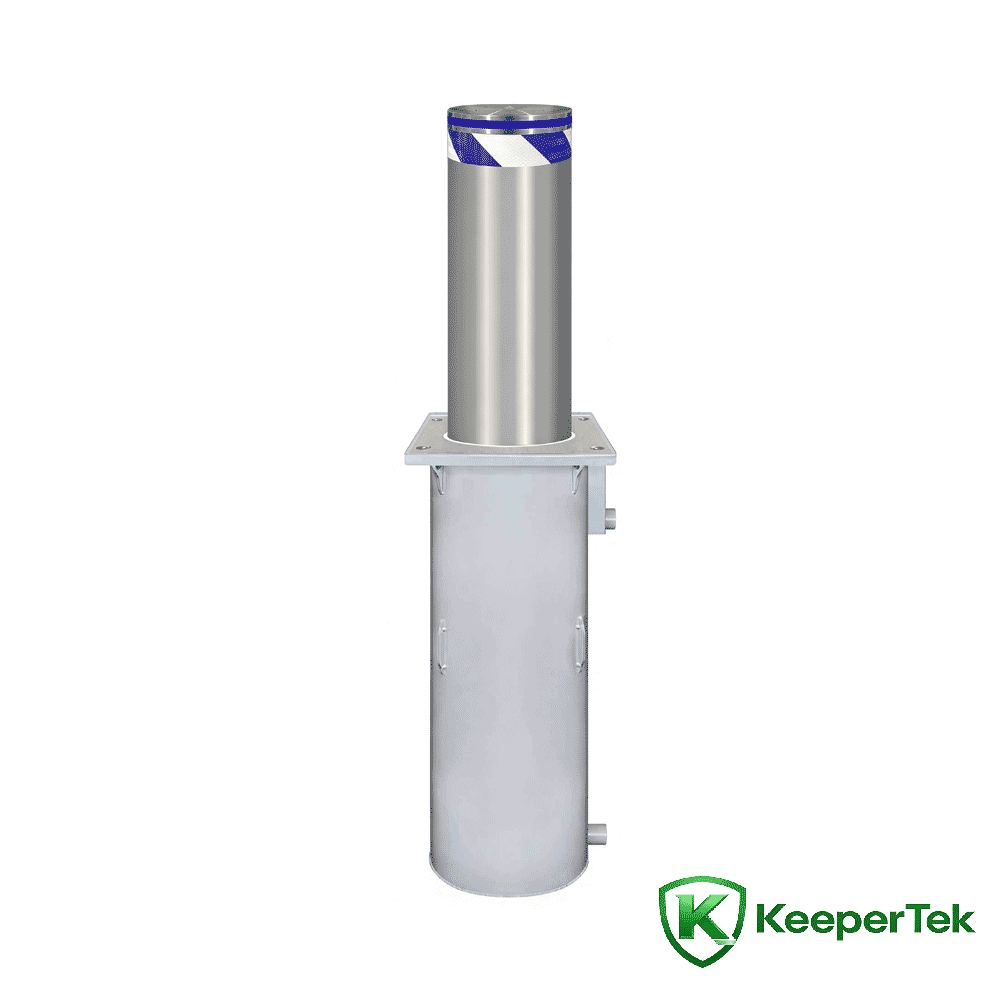

Square flange lifting column KT-DX04

Technical parameters

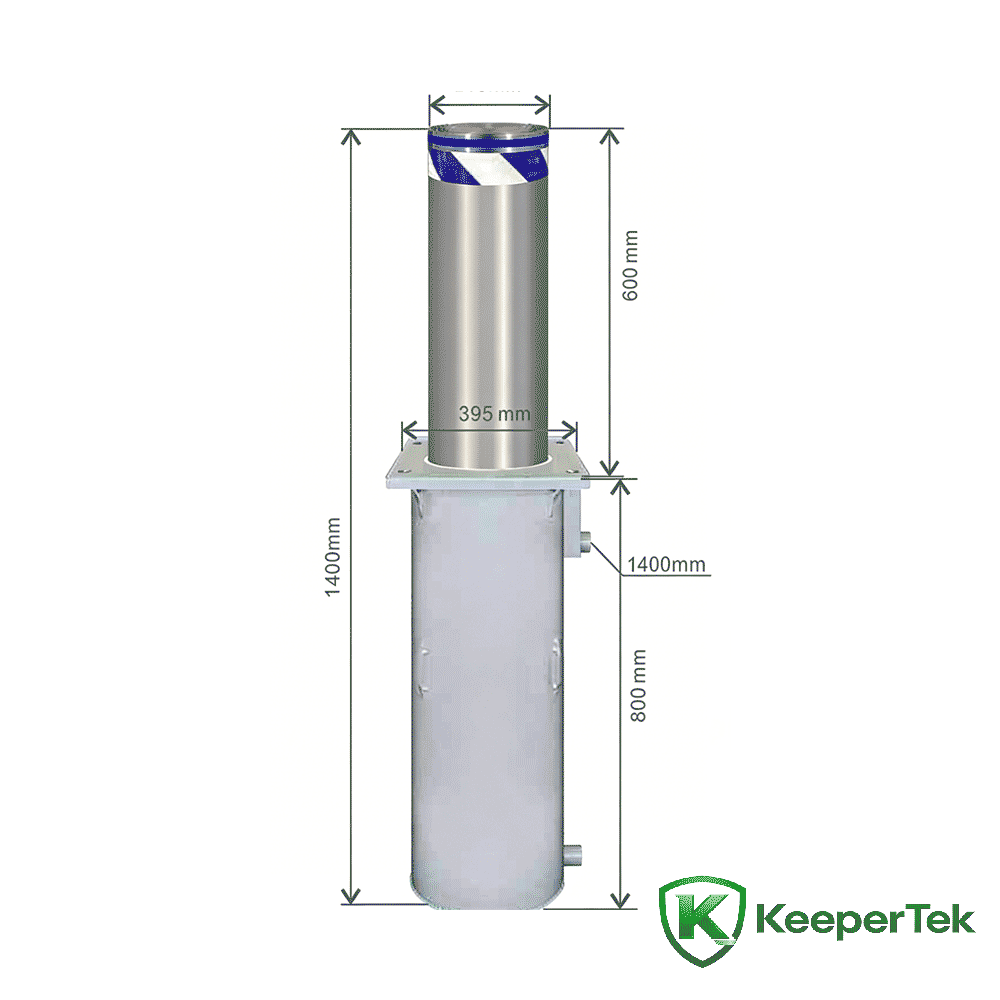

Cylinder diameter: 219mm

Cylinder height: 600mm

Cylinder thickness: 6mm

Cylinder material: 304 stainless steel

Lifting speed: 2S～4S

Embedded bucket specifications: 335mmx335mmx800mm

Waterproof grade: IP68

Working temperature: -35℃～75℃

Flange specifications: flange 335mmx335mmx thickness 6mm

Supply voltage: 220V

Power: 300W

Warning signs: ultra-high brightness reflective film, LED lights

Emergency function: Equipped with EPS emergency power supply and one-button descent

Control method: extended function license plate recognition/fire alarm/access control system linkage

Control box/wireless remote control

Number of guide posts: 3

Features

It can be used normally after withstanding the passage of a 100-ton vehicle.；

Waterproof grade IP68, it can still be used normally even after being soaked in water:

The structure is sturdy and durable. The cable outlet and drain outlet are made of 4mm thick carbon steel. The outer barrel is designed with 4 welding bars.；

Using 5CM bright reflective film, the reflectivity is over 90%;

Optional high-brightness LED warning light bar can effectively enhance the nighttime warning effect.

The panel flange adopts anti-slip pattern design, and the flange thickness is optional 10mm/6mm;

The flange thickness at the top of the column is 10mm/6mm, and non-standard support is accepted for customization. The diameter, thickness, height, appearance, speed, etc. of the lifting column can be customized;

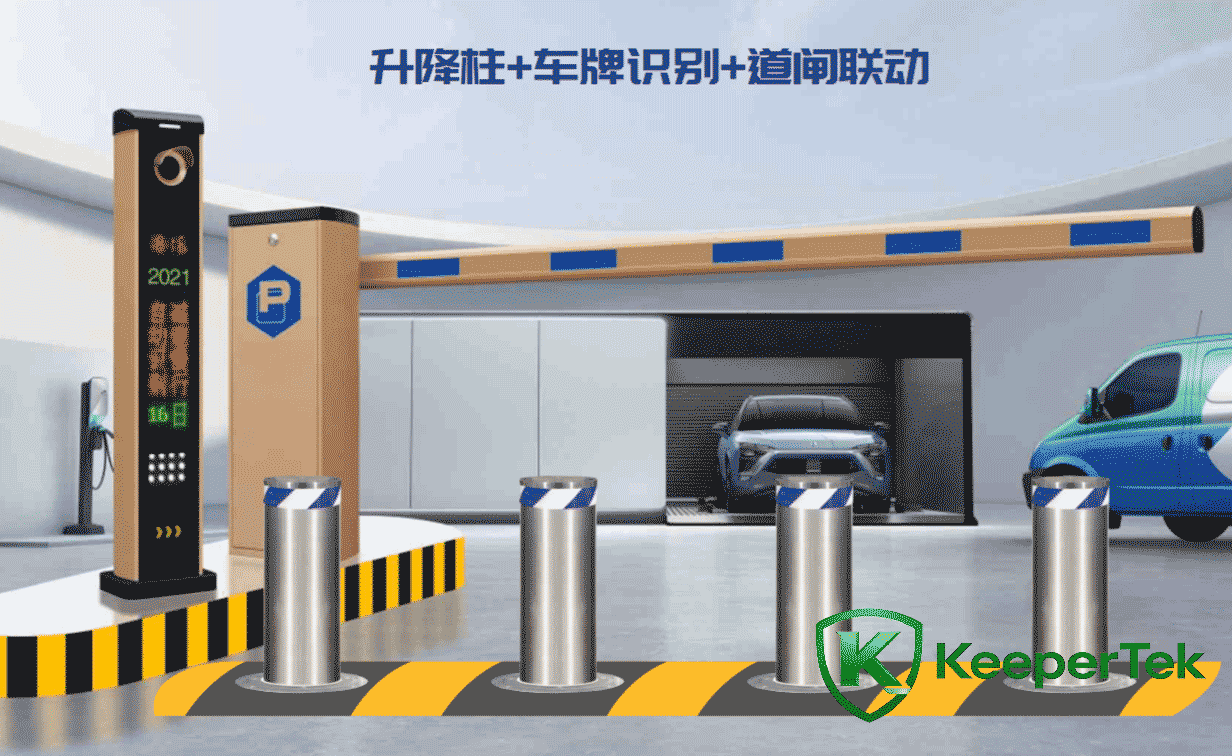

The lifting can be controlled in conjunction with other equipment such as license plate recognition, barrier gates, access control, infrared, radar, ground sensing, traffic lights, tidal lanes, fire alarm systems, etc.；

The cloud platform management system is supported to control the lifting column, and the mobile APP can be used to remotely control the rise and fall of the lifting column.

Configuration options

Height: height 400mm, height 800mm, height 1000mm, height 1200mm, height 1500mm

Thickness: 8mm thickness, 10mm thickness, 12mm thickness, 16mm thickness, 20mm thickness

Diameter: 168mm diameter, 273mm diameter, 325mm diameter, others
