Anti-riot lifting column

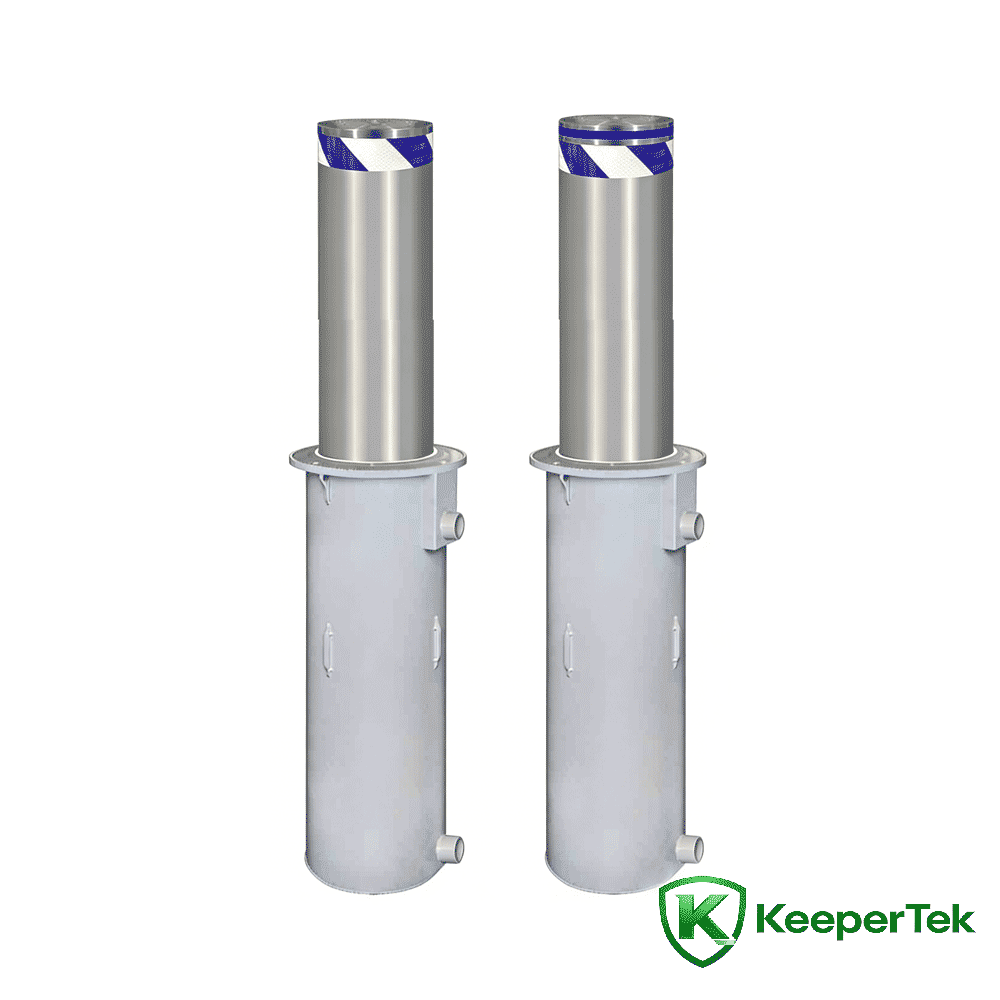

Semi-automatic lifting column KT-DX03

Technical parameters

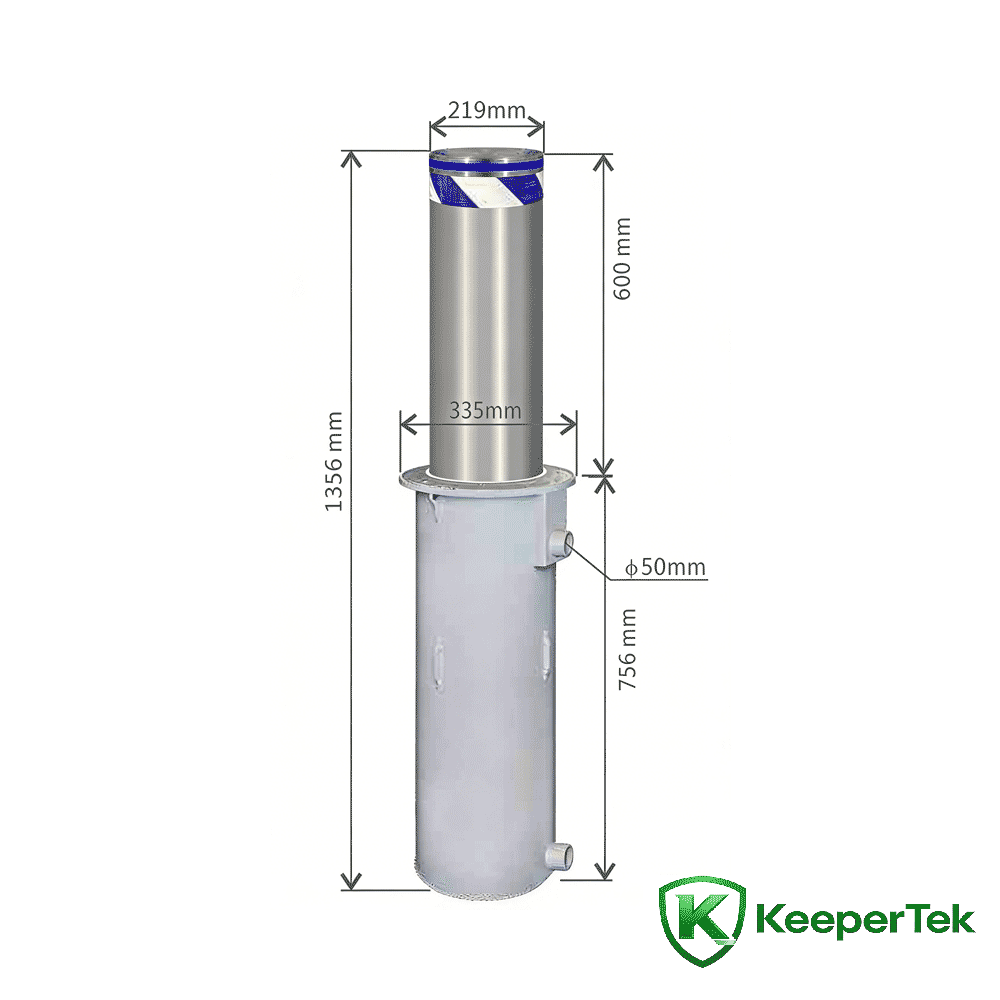

Cylinder diameter: 219mm

Cylinder height: 600mm

Cylinder thickness: 6mm

Cylinder material: 304 stainless steel

Embedded bucket specifications: 335mmx335mmx756mm

Waterproof grade: IP68

Working temperature: -35℃～75℃

Flange specifications: flange diameter 335mm x thickness 6mm

Warning signs: ultra-high brightness reflective film, LED lights

Number of guide posts: 3

Features

It can be used normally after being hit by a vehicle carrying 8 tons;

It can be used normally after withstanding the passage of a 100-ton vehicle.；

Waterproof grade IP68, it can still be used normally even after being soaked in water:

The structure is sturdy and durable. The cable outlet and drain outlet are made of 4mm thick carbon steel. The outer barrel is designed with 4 welding bars.； ；

Using 5CM wide reflective film, the reflectivity can reach more than 90%;

Optional high-brightness LED warning light bar can effectively enhance the nighttime warning effect.

The panel flange adopts anti-slip pattern design, and the flange thickness is optional 10mm/6mm;

The flange thickness at the top of the column is 10mm/6mm;

Non-standard customization is accepted. The overall diameter, thickness, height, appearance, speed, etc. of the lifting column can be customized.

Configuration options

Height: height 400mm, height 800mm, height 1000mm, height 1200mm, height 1500mm

Thickness: 8mm thickness, 10mm thickness, 12mm thickness, 16mm thickness, 20mm thickness

Diameter: 168mm diameter, 273mm diameter, 325mm diameter, others
