Geomagnetic parking space guidance system

Dual-mode geomagnetic parking space detector(surface type LoRa) KT-WB10

Technical parameters

Shell material: black PC+ABS

Communication method: LoRa

Protection level: IP68

Net weight: 560g

Installation method: surface type

Working temperature: -30°C~ 75°C

Pressure resistance: 20t

Wireless upgrade: support

Two-way communication: supported

Battery capacity: 18000mAH

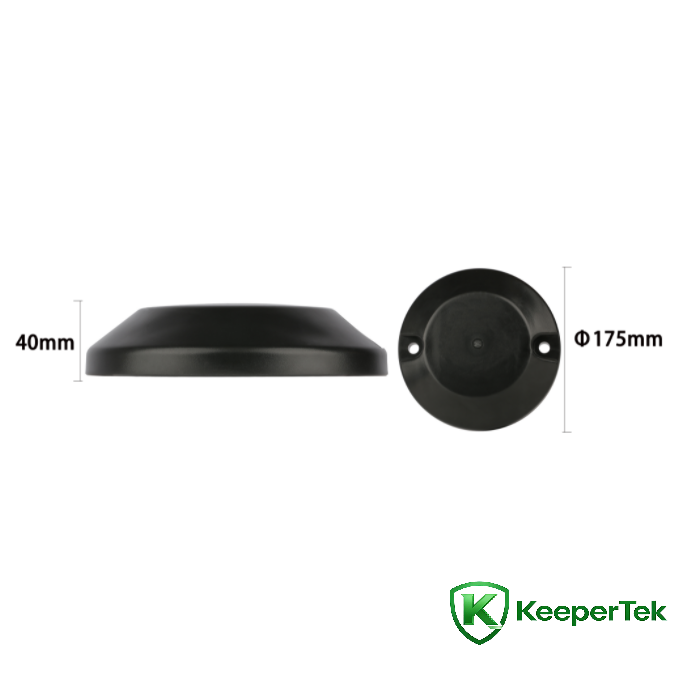

Specifications and dimensions: diameter 175*40mm

Features

Advanced identification algorithm and anti-interference design, detection accuracy is as high as 99% or more

Use expansion screws to install in the parking space, eliminating the trouble of drilling and making construction difficult.

The appearance design has smooth arcs and no sharp points. Installation close to the ground is less likely to cause injuries such as kicking and bumping.

High-strength shell design, with pressure resistance and anti-corrosion properties.

Adopting a protection design up to IP68, it can effectively cope with various harsh environments in outdoor parking spaces.

No fear of severe cold or heat: working temperature -30℃~75℃. Strong anti-interference ability, resistant to rain and snow weather interference, resistance to interference from neighboring cars, and resistance to magnetic field interference

Mobile APP Bluetooth debugging makes debugging and maintenance operations simple and convenient.
