Geomagnetic parking space guidance system

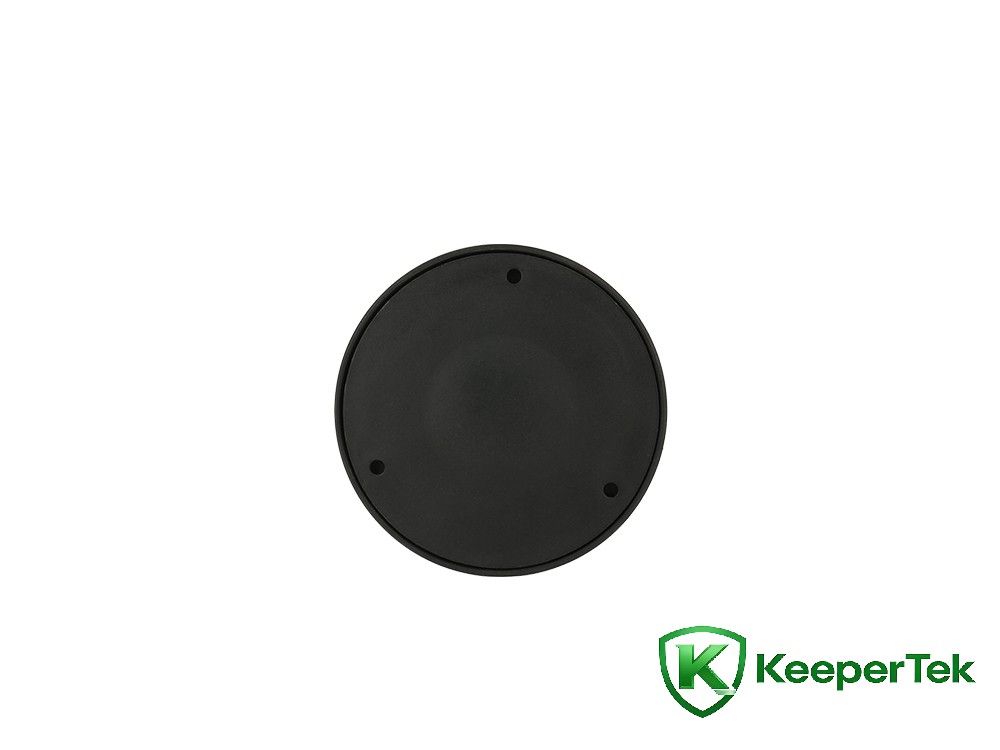

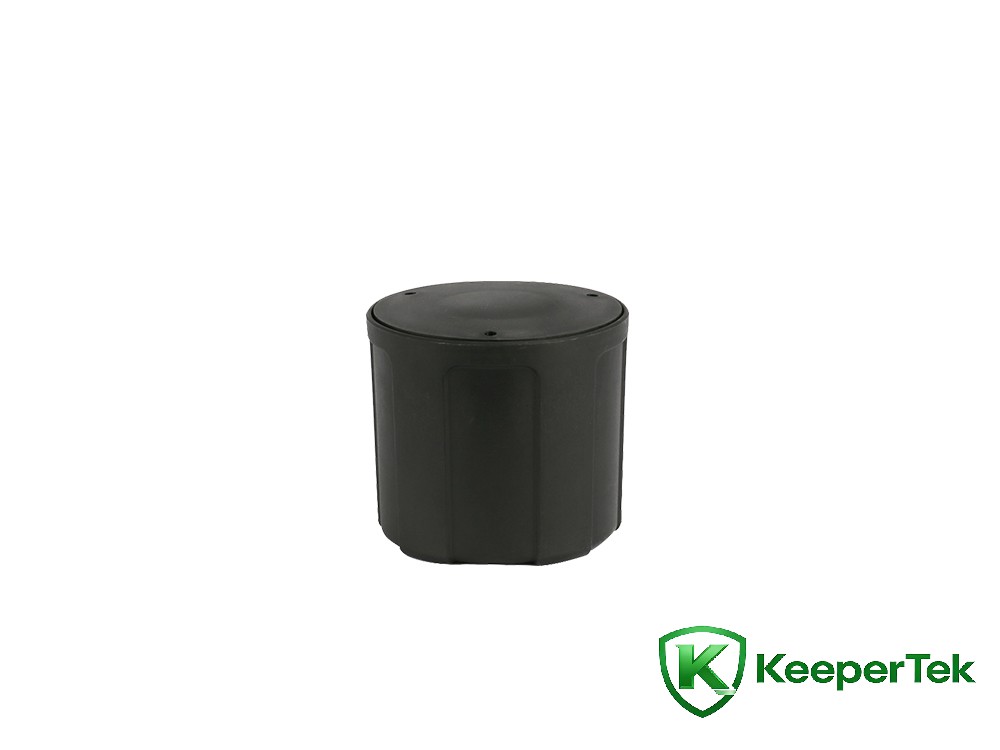

Dual-mode geomagnetic parking space detector (underground Mode NB-IoT）KT-WB09

Technical parameters

Shell material: black PC+ABS

Communication method: NB-IoT

Protection level: IP68

Net weight: 850g

Installation method: underground

Working temperature: -30°C~75°C

Pressure resistance: 20t

Wireless upgrade: support

Two-way communication: supported

Battery capacity: 38000mAH

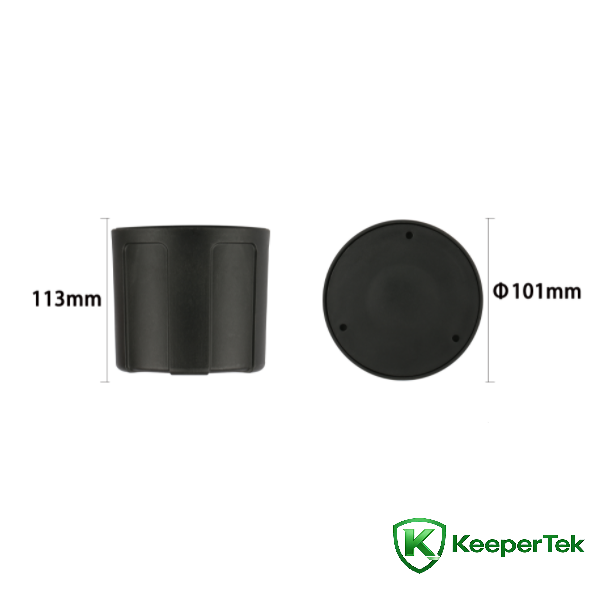

Specifications and dimensions: diameter 100*110mm

Features

Using wireless microwave radar and geomagnetic dual detection algorithm, advanced and efficient identification algorithm, the detection accuracy is as high as 99% or more

No fear of severe cold or heat: working temperature -30℃~75℃. Strong anti-interference ability, resistant to rain and snow weather interference, resistance to interference from neighboring cars, and resistance to magnetic field interference

Wireless communication eliminates wiring troubles and reduces construction difficulty

The geomagnetic parking space detector is small in size and causes little damage to the parking space ground.

The high-strength shell design has the characteristics of pressure resistance and anti-corrosion. It has a built-in long-life battery and the overall product has a long service life.

Adopting a protection design up to IP68, it can effectively cope with various harsh environments in outdoor parking spaces.

Mobile APP Bluetooth debugging makes debugging and maintenance operations simple and convenient.
