Video parking guidance system

video detector6parking space KT- WB02

Technical parameters

Monitoring quantity: supports 2-6 parking spaces/station

Pixels: 3 million

Maximum resolution: 2304*1296

Indicator light: supports 7 colors (red, green, white, yellow, purple, dark blue, light blue)

External indicator light: not supported

DC power supply: standard DC24V, supports DC9~36V wide power supply

Standard POE: supports 802.3af standard PoE

Non-standard POE: equipped with non-standard POE combiner, supports hand-to-hand connection of cameras

Temperature: Operating temperature: -20°C~65°C

Humidity: 10%~95% (no condensation)

Event lighting prompts: Supports lighting prompts for events such as line parking, vehicle occupation, etc.

Bluetooth reverse car search: supported, providing Bluetooth positioning

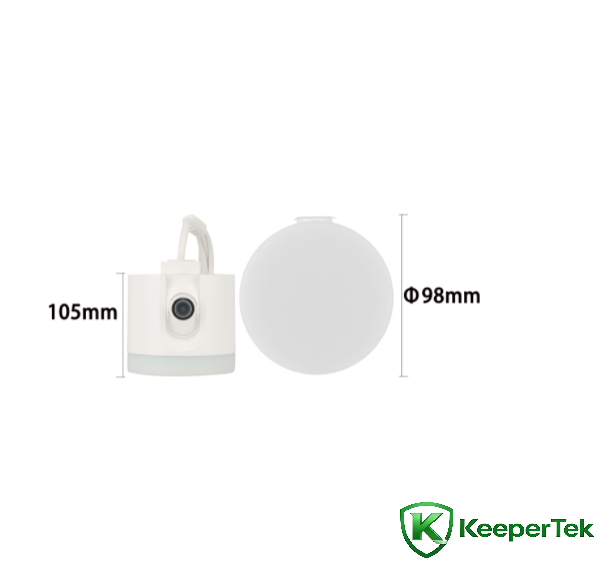

Product size: height 105MM, diameter 98MM

Features

Supports multi-parking space recognition, and can identify up to 2-6 parking spaces at the same time.

The integrated design of detectors and indicator lights saves construction costs.

Using seven-color LED lamp beads, different colors can be customized according to the needs of the parking lot for ordinary parking spaces, barrier-free parking spaces, and ladies-only parking spaces.

With an external lens, the recognition angle can be adjusted without disassembling the camera.

Supports the alarm function for illegal parking of vehicles across the line. When the vehicle is parked across the line, the alarm can be prompted.

Use the hand-in-hand wiring method of network cables to save construction costs.

Supports external indicator lights and independently configures parking space indicators for each parking space.

Supports built-in Bluetooth beacon to expand the way to find cars on mobile phones.

Supports expanded video recording function. If an accident occurs and a dispute arises, the video can be retrieved and viewed.

Can recognize a variety of license plates: ordinary blue plates, single and double-layer yellow plates, new energy, single and double-layer police cars, new armed police, single and double-layer military plates, new embassy, ??coach vehicles, emergency license plates, civil aviation, special license plates, etc.
