Anti-riot traffic barrier equipment

tire breaker (Buried-free ) KT-DX20

Technical parameters

Fixing method: Buried-free

Surface treatment: spray plastic

Optional colors: yellow, black, red

Carrying weight: 50 tons

Panel thickness: 10mm/16mm/20mm

Overall material: A3 steel

Lifting speed: 1S～2S

Tire breaking blade rising height: 120mm

Waterproof grade: IP68

System control: electric

Voltage power: 220V/150W

Working temperature: -40℃～75℃

Control method: control box/wireless remote control

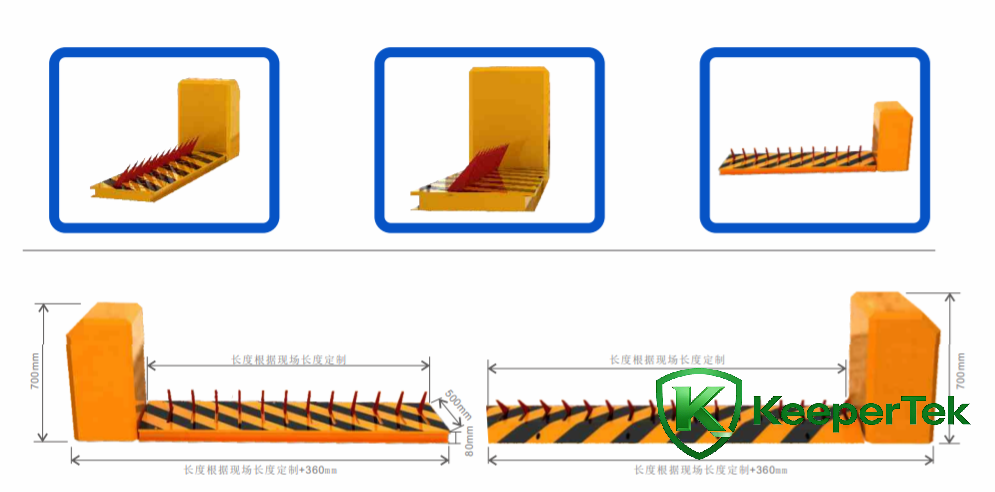

The length can be customized according to site conditions:

The linkage function can link gate systems, traffic lights, AB doors, alarm systems, etc.

Features

The overall installation method is divided into two installation methods: buried-free type and shallow buried type;

Adopting a new structural design, it is sturdy and durable, can carry a large load, has a compact structure and uses thick materials, which greatly improves the pressure resistance and tire puncture performance.；

The tire breaker operates smoothly, has low noise, and can adapt to various installation environments.；

Buried-free tire breaker does not require breaking the road and can be used when placed on the ground；

It has emergency anti-terrorism and fire-fighting linkage functions, and has vehicle detection and protection functions such as license plate recognition, infrared detection, radar, and ground sensing, which can realize unmanned intelligent management.

During a power outage, the roadblock supports manual lifting；

The panel is formed in one piece, no welding process, beautiful, strong and pressure-resistant；

The surface is treated with high-grade anti-rust paint and engineering-grade reflective stickers.

Serve as a beauty and warning；

Configuration options

Thickness: Thickness 16mm Thickness 20mm Thickness 25mm
