Anti-riot traffic barrier equipment

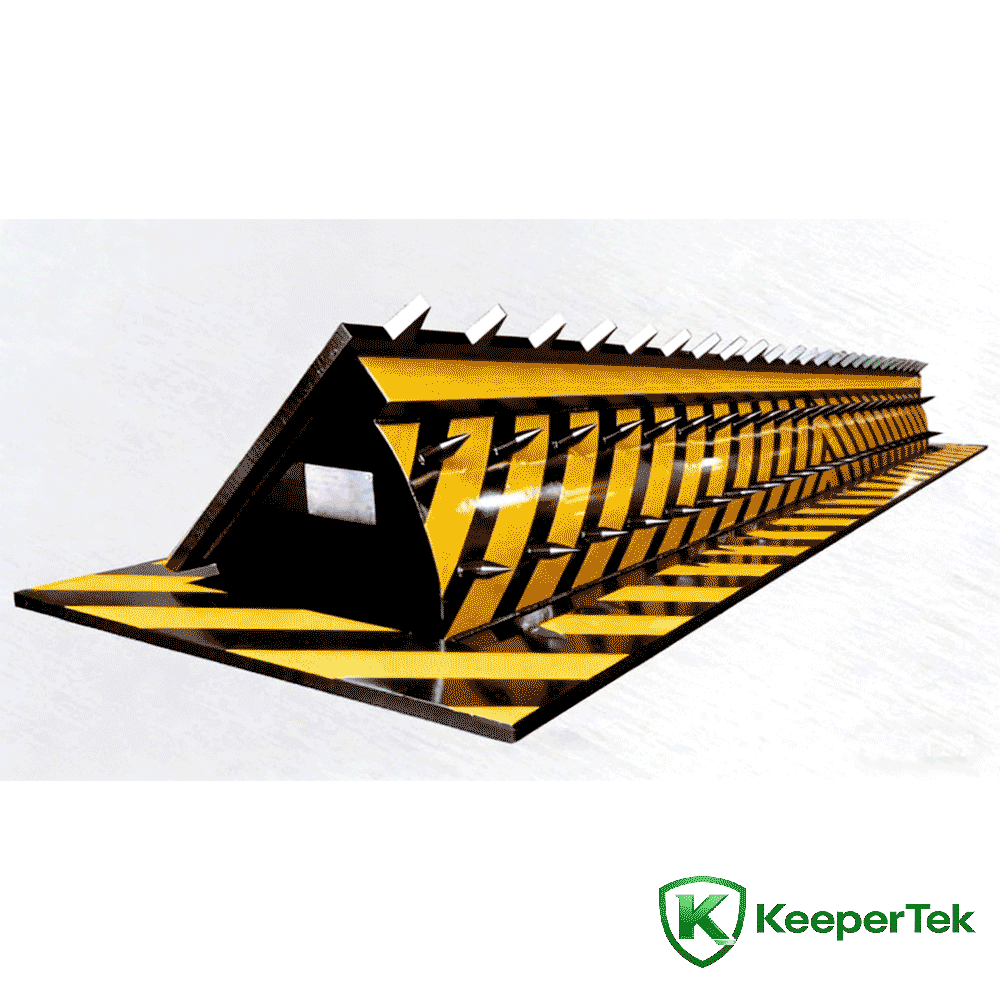

Flip plate hydraulic roadblock machine KT-DX18

Technical parameters

Interception width: 800mm-5700mm

Lifting height: 500mm-600mm

Panel thickness: 16mm/20mm/25mm

Panel material: A3 stainless steel

Lifting speed: 2S～4S

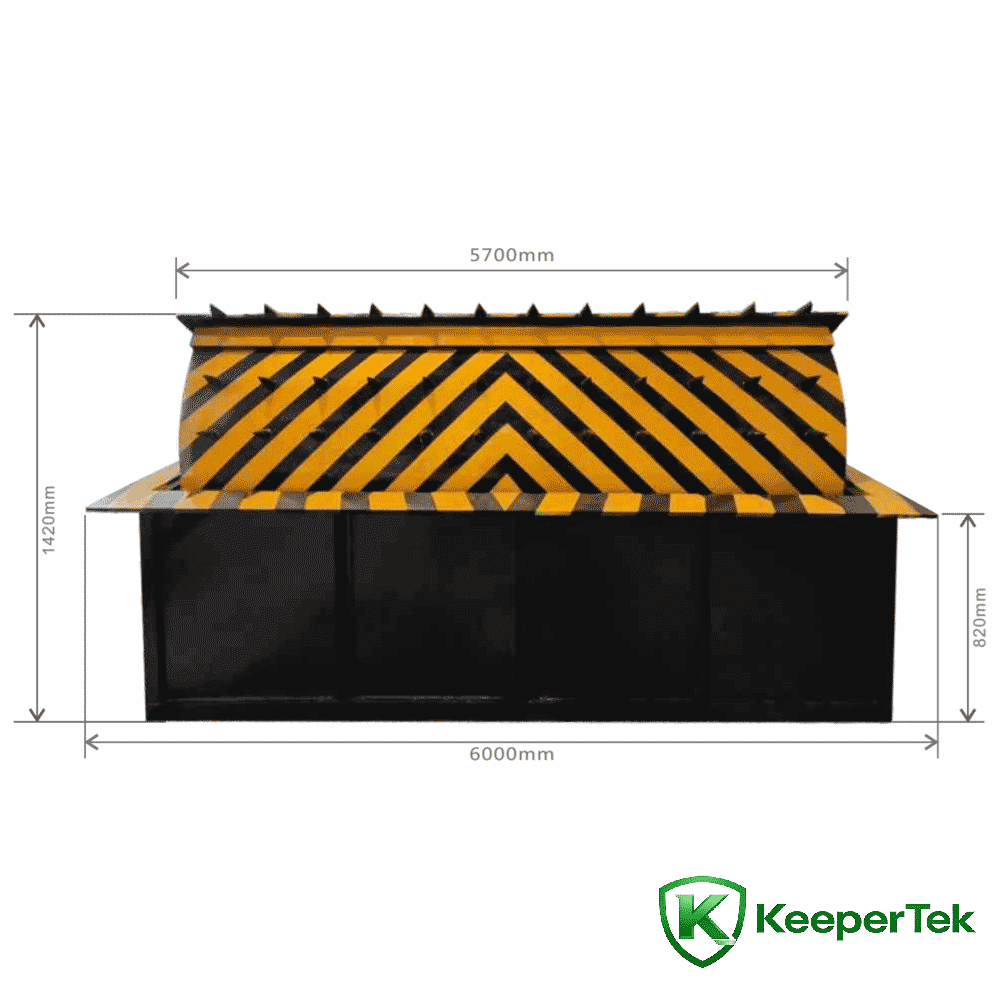

Body specifications: 6000mm long x 1000mm wide x 820mm high (can be customized)

Waterproof grade: IP68

Working temperature: -35℃～75℃

System control: electric + hydraulic

Voltage power: 220V~380V/3.7KW

Optional LED warning light: Optional LED warning light makes the warning more obvious and beautiful at night.

Emergency function: Equipped with EPS emergency power supply and one-button descent

Control method: control box/wireless remote control

Stainless steel material, 30mmx60mm (can be customized)

Linkage function: Can be linked to barrier gate systems, traffic lights, AB doors, alarm systems, etc.

Features

The overall structure is divided into machine base, turning body, hydraulic power system and electrical control system.；

Adopting a new structural design, it is sturdy and durable, can carry a large load, has a compact structure and thick materials, which greatly improves the pressure resistance and anti-collision performance.；

Smooth action speed, low noise, adaptable to various working environments；

Split hydraulic design facilitates ground maintenance operations；

Using single chip system control box, it is stable, reliable and easy to integrate.；

It has emergency anti-terrorism and fire-fighting linkage functions, and has vehicle detection and protection functions such as license plate recognition, infrared detection, radar, and ground sensing, which can realize unmanned intelligent management.

During a power outage, the roadblock supports manual lifting；

The panel is integrally formed, no welding process, beautiful, strong and anti-collision；

The surface is treated with high-grade anti-rust paint and engineering-grade reflective stickers.

Serve as a beauty and warning；

Configuration options

Thickness: Thickness 16mm Thickness 20mm Thickness 25mm
