Ultrasonic parking space guidance system

Front-mounted ultrasonic parking space detector KT- WB05

Technical parameters

Appearance material: gray ABS engineering plastic

Working voltage: DC10~28V (rated 24V)

Power consumption: <1W

Working temperature: -20°C~ 65°C

Installation height: 2~3m vertically (2.2-2.8m recommended)

Net weight: 180g

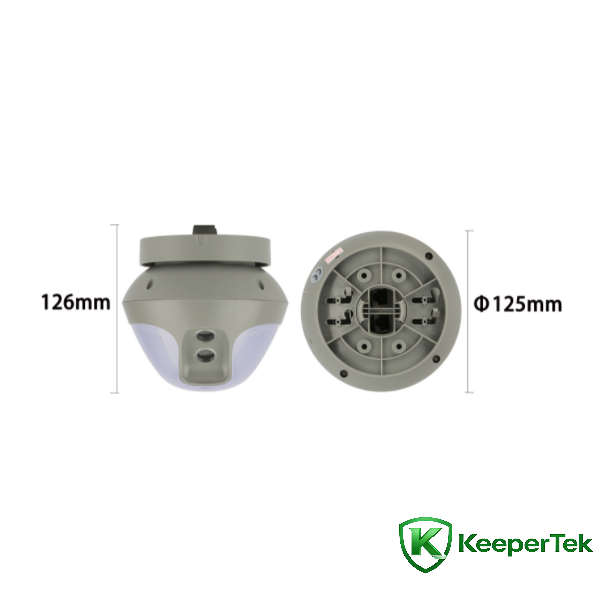

Specifications and dimensions: diameter 126*125mm

Features

Integrating parking space detectors and indicator lights greatly reduces material costs and construction costs, and also shortens the construction period.

The parking space status indicator light is designed with high-brightness LED lamp beads, which has low power consumption and long service life. The lamp beads have a wide viewing angle and a long viewing distance.

It adopts the design of two independent sending and receiving ultrasonic circuits, with a large detection area and independent work, which greatly improves the life and reliability of the detector.

Adopting advanced intelligent learning anti-interference algorithm to solve the interference of adjacent roads, side vehicles and cross-beams, the detection accuracy is over 99%

The entire unit has undergone strict tests on static electricity, lightning strikes, surges, and group pulses to effectively ensure the reliable use of the equipment.

The detector is installed on the bridge directly in front of each parking space, effectively avoiding obstruction by the pillars, and the installation effect is more tidy and beautiful.

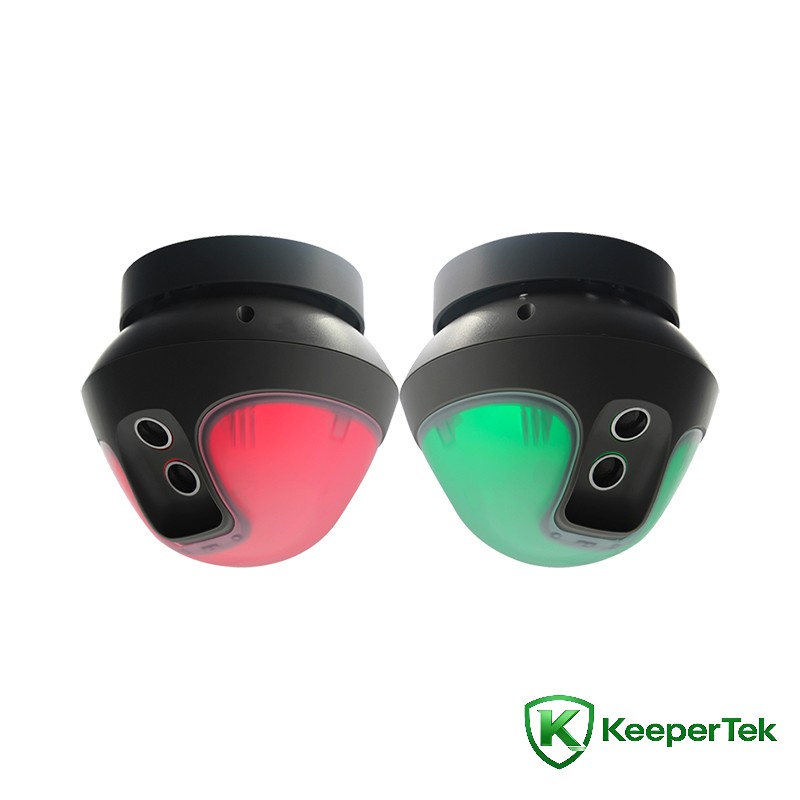

Seven-color LED display, the color of the indicator light under the empty parking space can be customized according to the needs of the parking lot.

Mobile APP debugging, automatic address superposition, one-click parameter configuration, and improved debugging efficiency

Produced in accordance with ISO standards and aged for 48 hours, the product is of high quality

Support remote upgrade
