Ultrasonic parking space guidance system

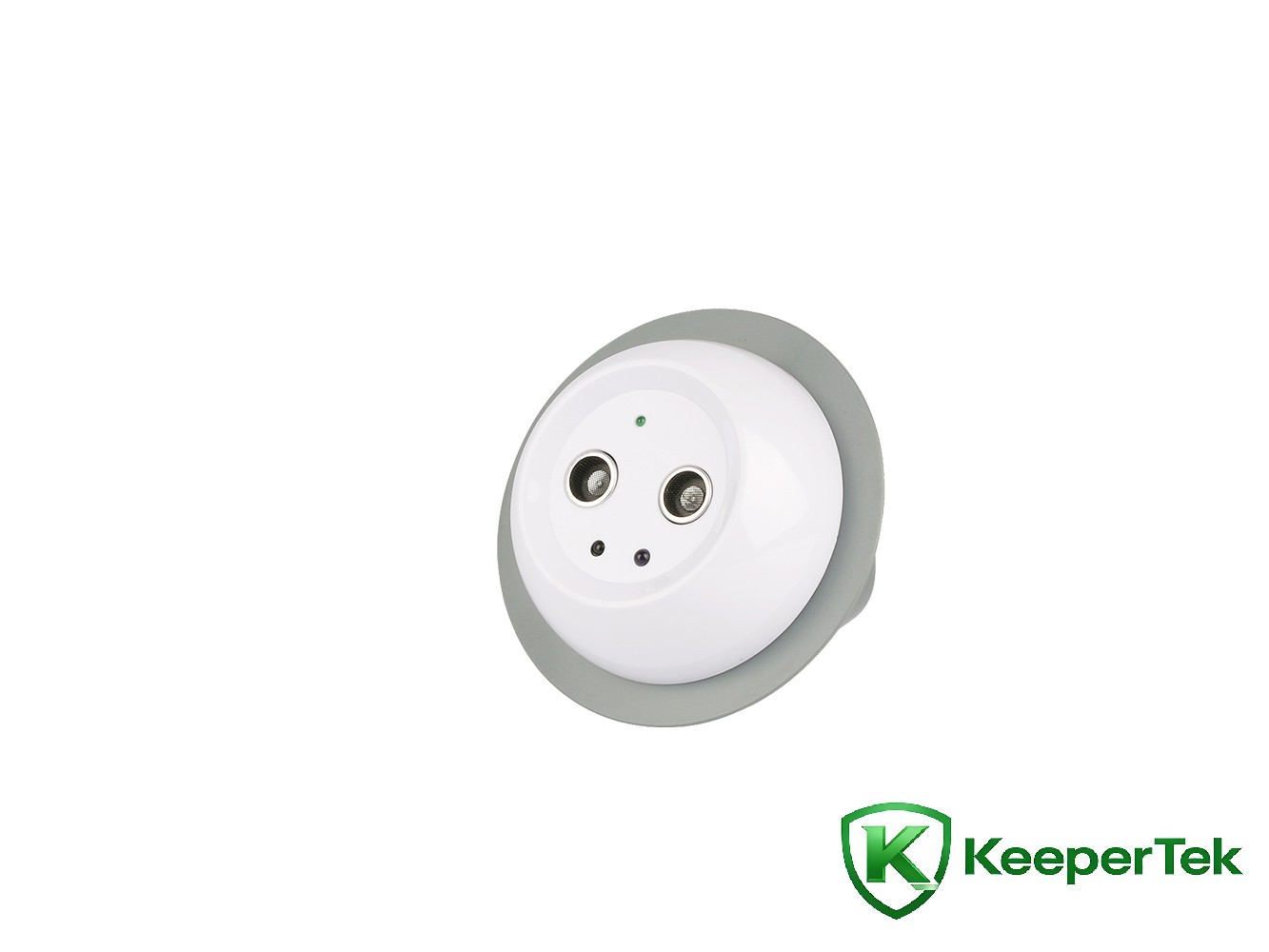

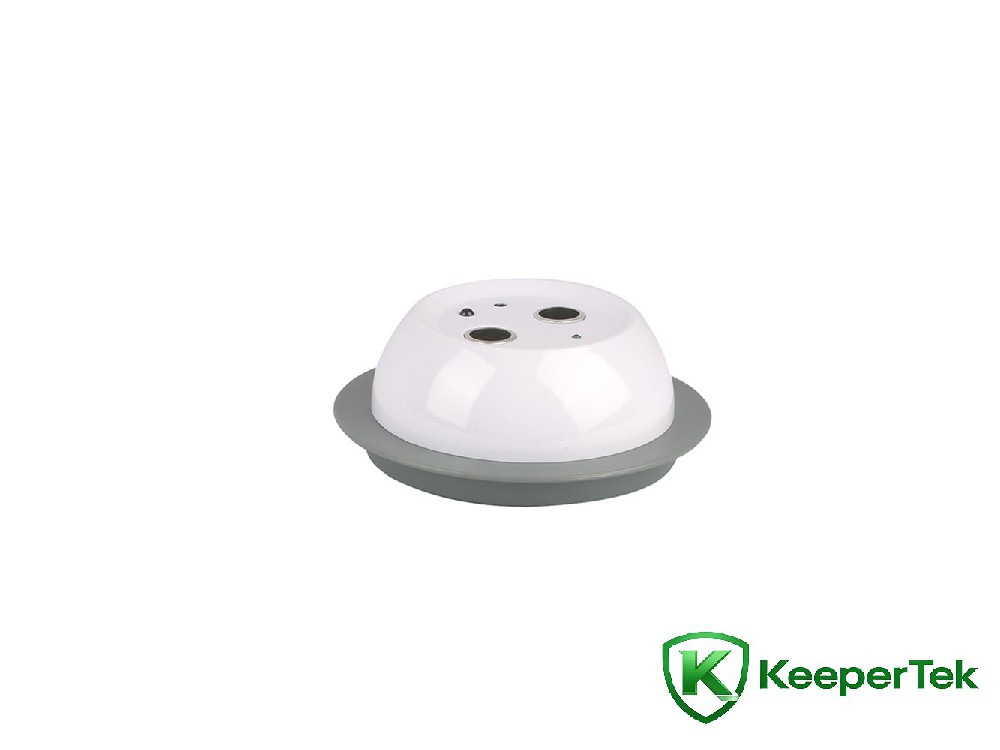

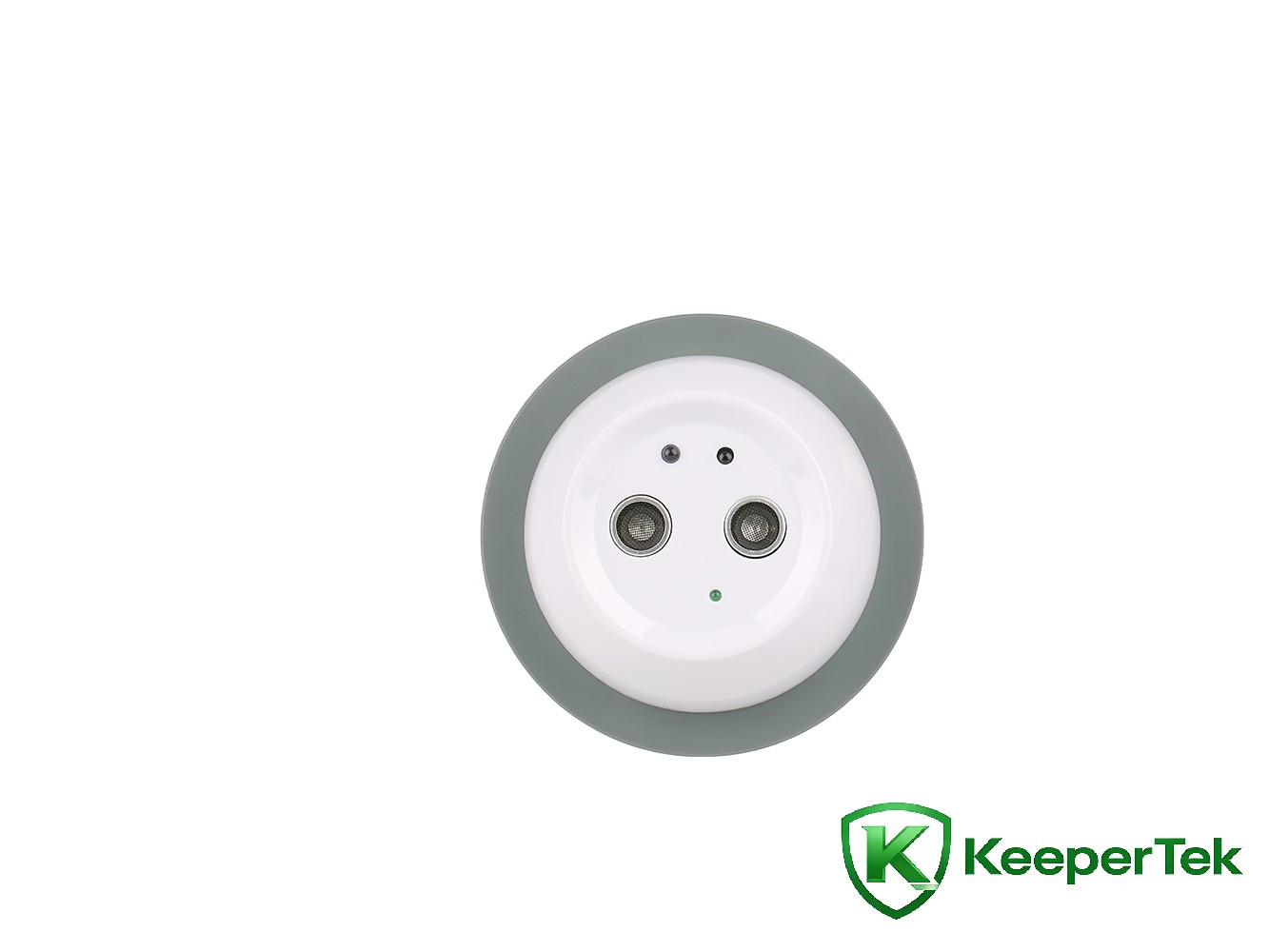

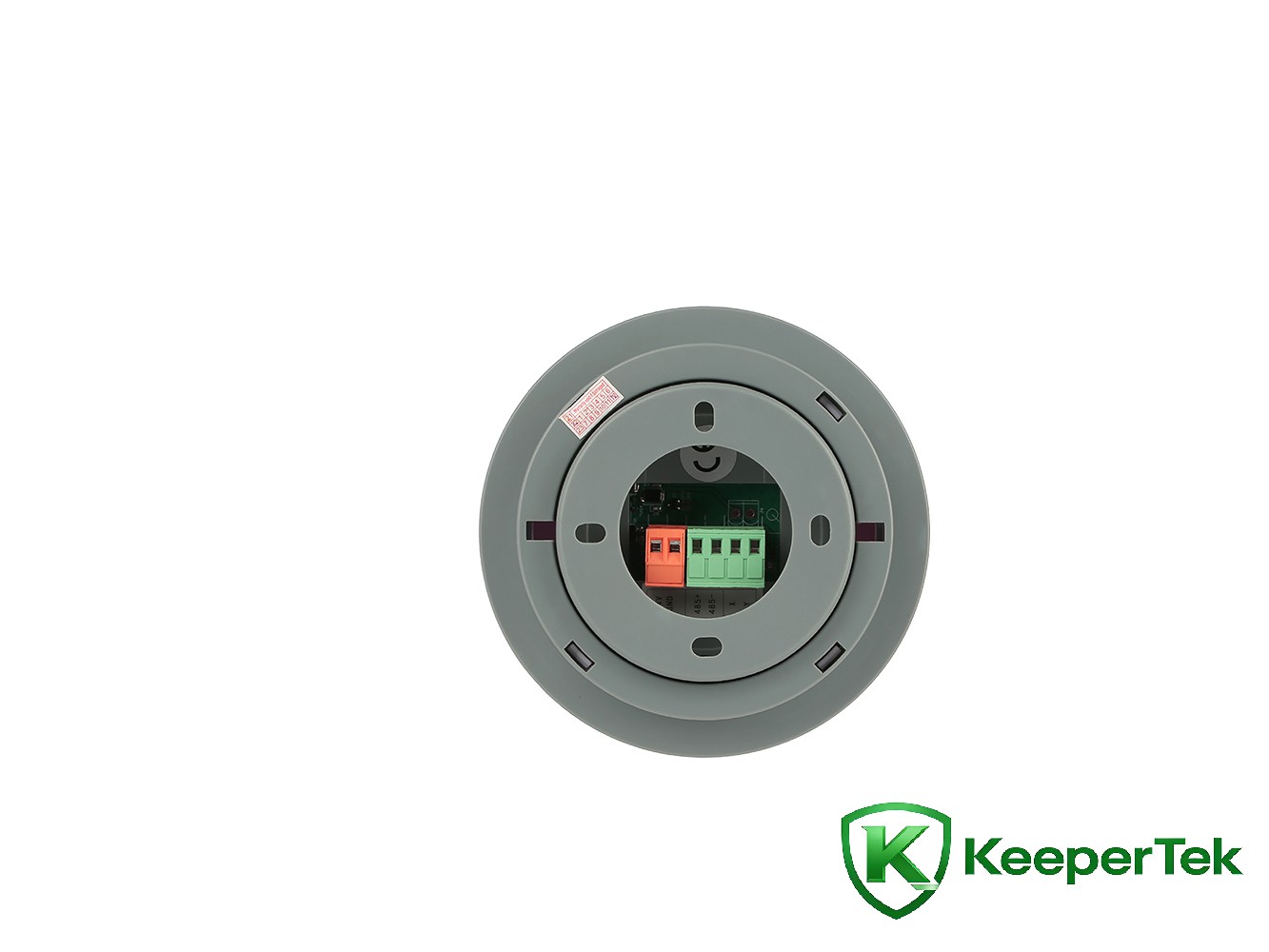

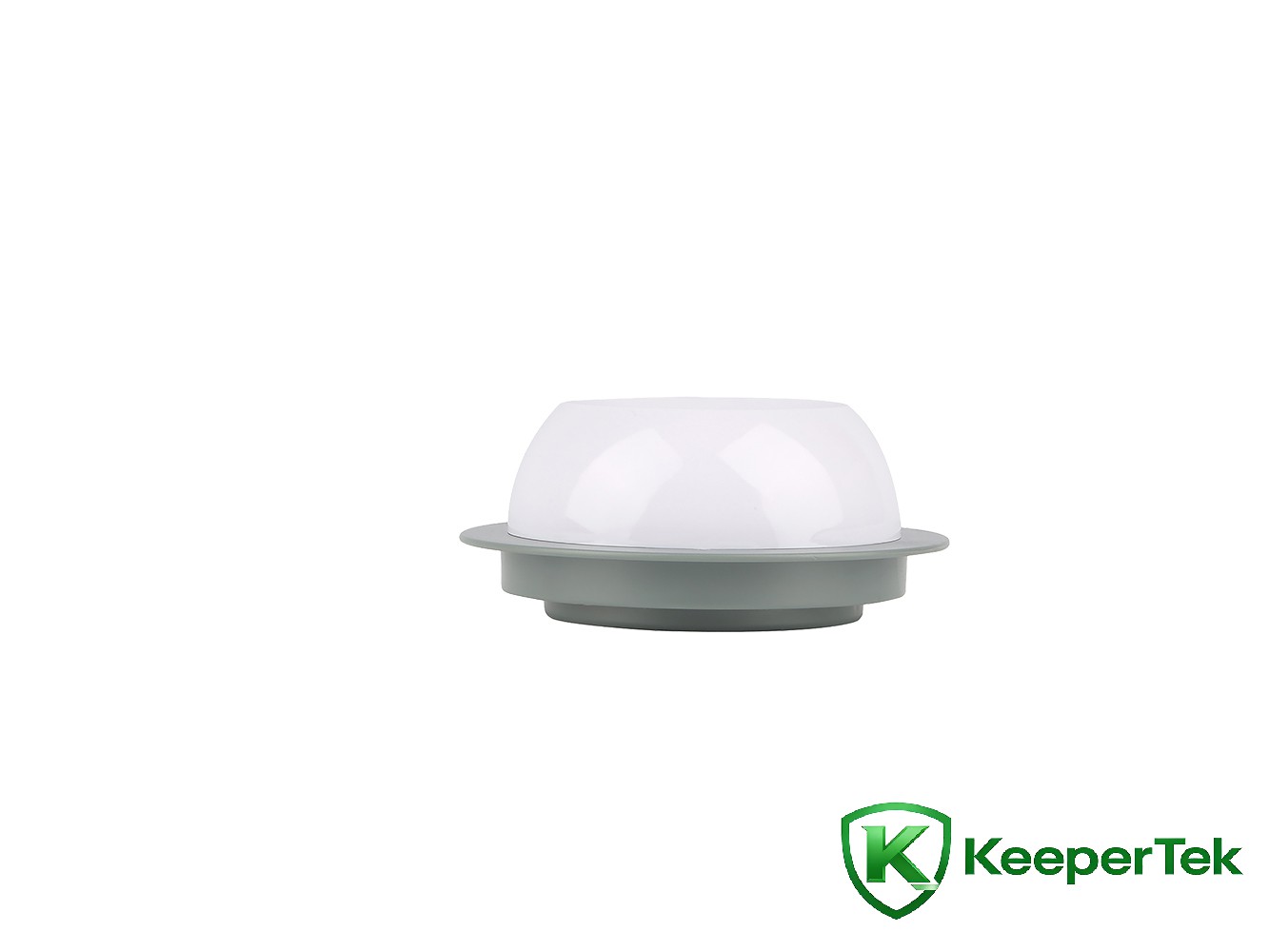

Split ultrasonic parking space detector KT- WB03

Technical parameters

Appearance material: gray ABS engineering plastic

Net weight: 110g

Installation height: 1.5~6m (2.5m recommended)

Working temperature: -20°C ~ 65°C

Working voltage: DC10~28V (rated 24V)

Power consumption: <0.5W

Specifications and dimensions: diameter 20*45mm

Features

Supports installation height of 2~5m to meet various engineering installation environments

The receiving circuit adopts a variety of combination judgment methods to enhance the anti-interference performance and detection stability of the equipment.

Adopting advanced intelligent learning anti-interference algorithm to solve the interference of adjacent roads, side vehicles and cross-beams, the detection accuracy is over 99%

The whole unit has undergone strict tests on static electricity, lightning strikes, surges, and group pulses to ensure reliable use under the influence of harsh electrical environments.

Mobile APP debugging, automatic address superposition, one-click parameter configuration, and improved debugging efficiency

Ultra-low power design helps reduce long-term operating costs

Support remote upgrade
