Anti-riot lifting column

24V Low voltage pure electric lifting column KT-DX08

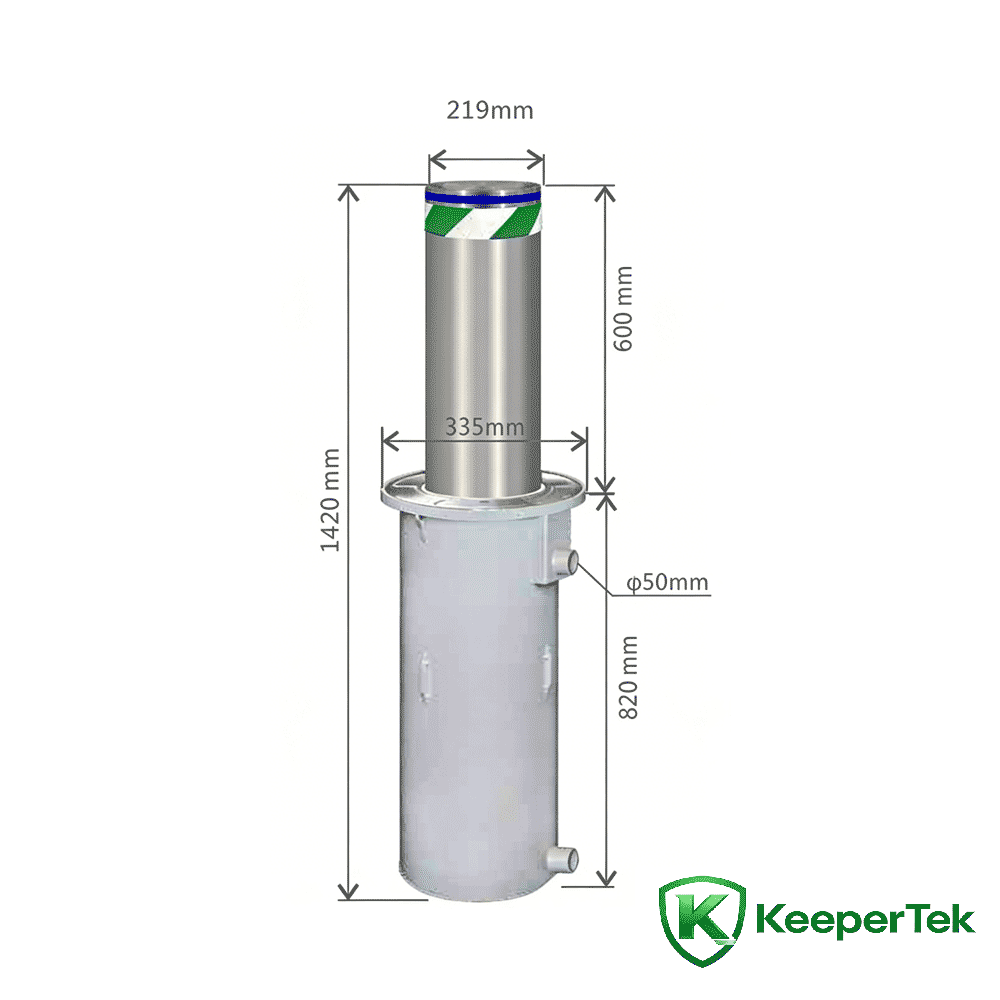

Technical parameters

Cylinder diameter: 219mm

Cylinder height: 600mm

Cylinder thickness: 6mm

Cylinder material: 304 stainless steel

Lifting speed: 6S～13S

Embedded bucket specifications: diameter 395mm x depth 820mm

Waterproof grade: IP68

Working temperature: -35℃～75℃

Flange specification: 395mm × 10mm

Supply voltage: 24V

Power: 200W

Warning signs: ultra-high brightness reflective film, LED lights

Emergency function: Equipped with EPS emergency power supply and one-button descent

Control mode: The control box can be used for one-to-one control/wired station control/wireless remote control

Extended functions: license plate recognition/fire alarm/access control system linkage

Features

DC 24V pure electric, safe voltage;

Simple wiring, only one control line is needed for a control box and a set of lifting columns, saving wire costs；

Can be connected to 24VUPS power supply to control its lifting；

Waterproof grade IP68, it can still be used normally even after being soaked in water:

Sturdy and durable structure, large load capacity；

Using 5CM wide reflective film, the reflectivity can reach more than 90%;

Optional high-brightness LED warning light bar can effectively enhance the nighttime warning effect.

The panel flange adopts anti-slip pattern design, and the flange thickness is optional 10mm/6mm;

The flange thickness at the top of the column is 10mm/6mm;

Non-standard customization is accepted. The overall diameter, thickness, height, appearance, speed, etc. of the lifting column can be customized.

Configuration options

Height: height 400mm, height 800mm, height 1000mm, height 1200mm, height 1500mm

Thickness: 8mm thickness, 10mm thickness, 12mm thickness, 16mm thickness, 20mm thickness

Diameter: 168mm diameter, 273mm diameter, 325mm diameter, others
