Anti-riot lifting column

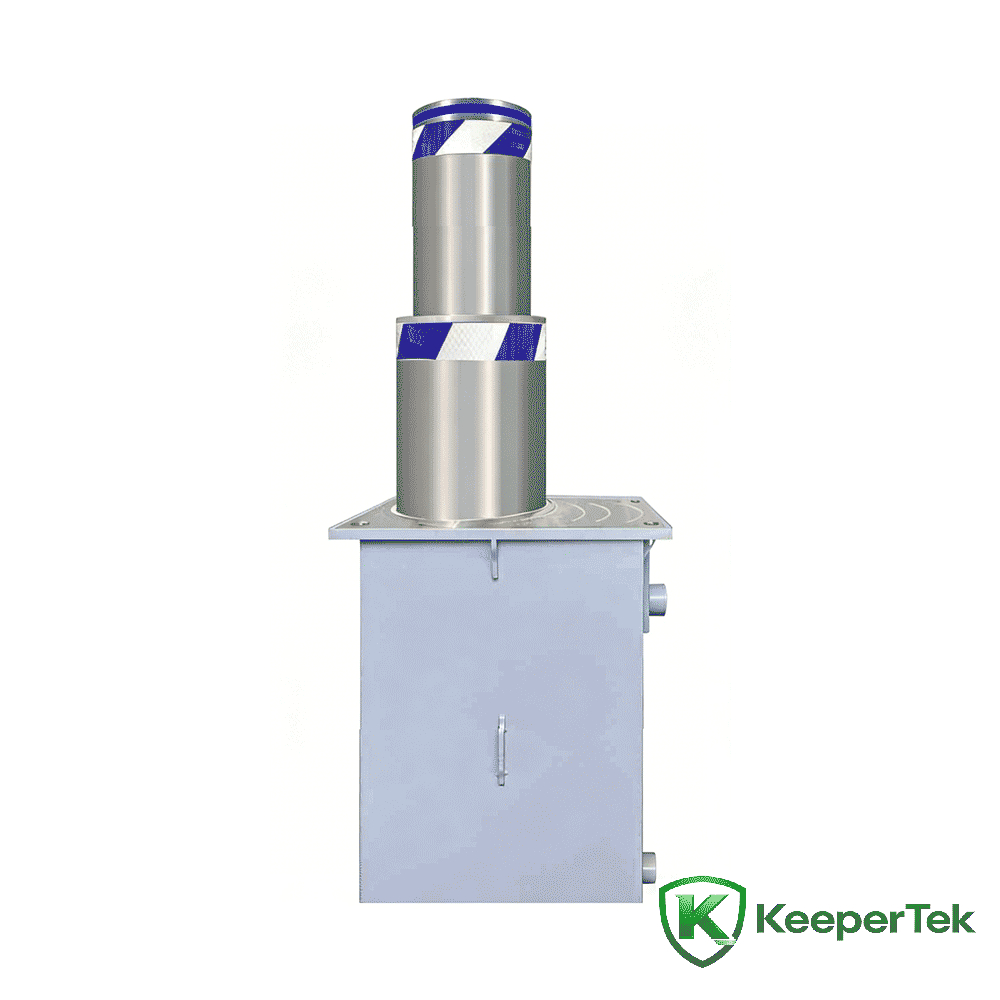

Double section shallow buried lifting column KT-DX05

Technical parameters

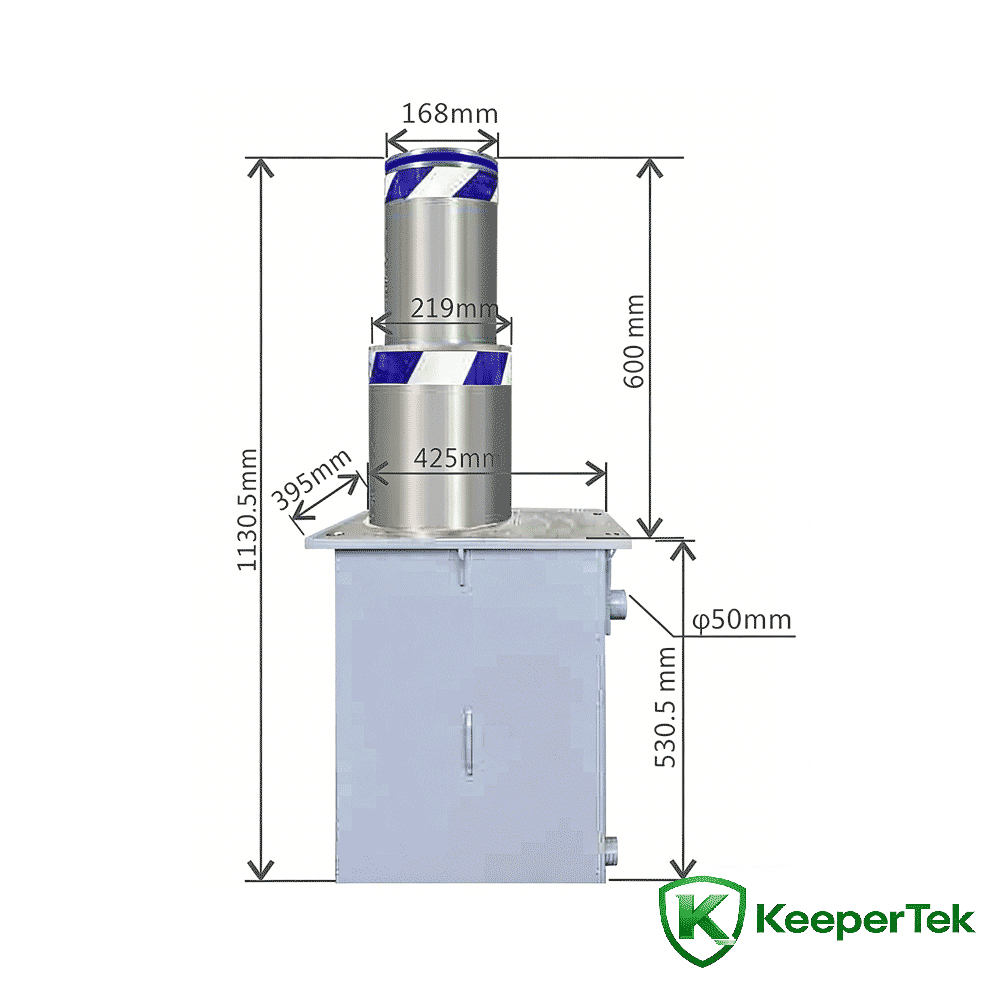

Cylinder diameter: 219mm+168mm

Cylinder height: 300+300mm

Cylinder thickness: 6mm

Cylinder material: 304 stainless steel

Lifting speed: 2S～4S

Embedded bucket specifications: 425mmx395mmx530.5mm

Waterproof grade: IP68

Working temperature: -35℃～75℃

Flange specifications: flange 425mmx395mmx thickness 8mm

Supply voltage: 220V

Power: 350W

Warning signs: ultra-high brightness reflective film, LED lights

Emergency function: Equipped with EPS emergency power supply and one-button descent

Control method: control box/wireless remote control

Extended function license plate recognition/fire alarm/access control system linkage

Number of guide posts: 4

Features

It can be used normally after being hit by a vehicle carrying 8 tons;

It can be used normally after withstanding the passage of a 100-ton vehicle.；

Waterproof grade IP68, it can still be used normally even after being soaked in water:

Sturdy and durable structure, large load-bearing capacity, smooth movement and low voice；

Using microcontroller control, the system operation performance is stable and reliable, and easy to integrate；

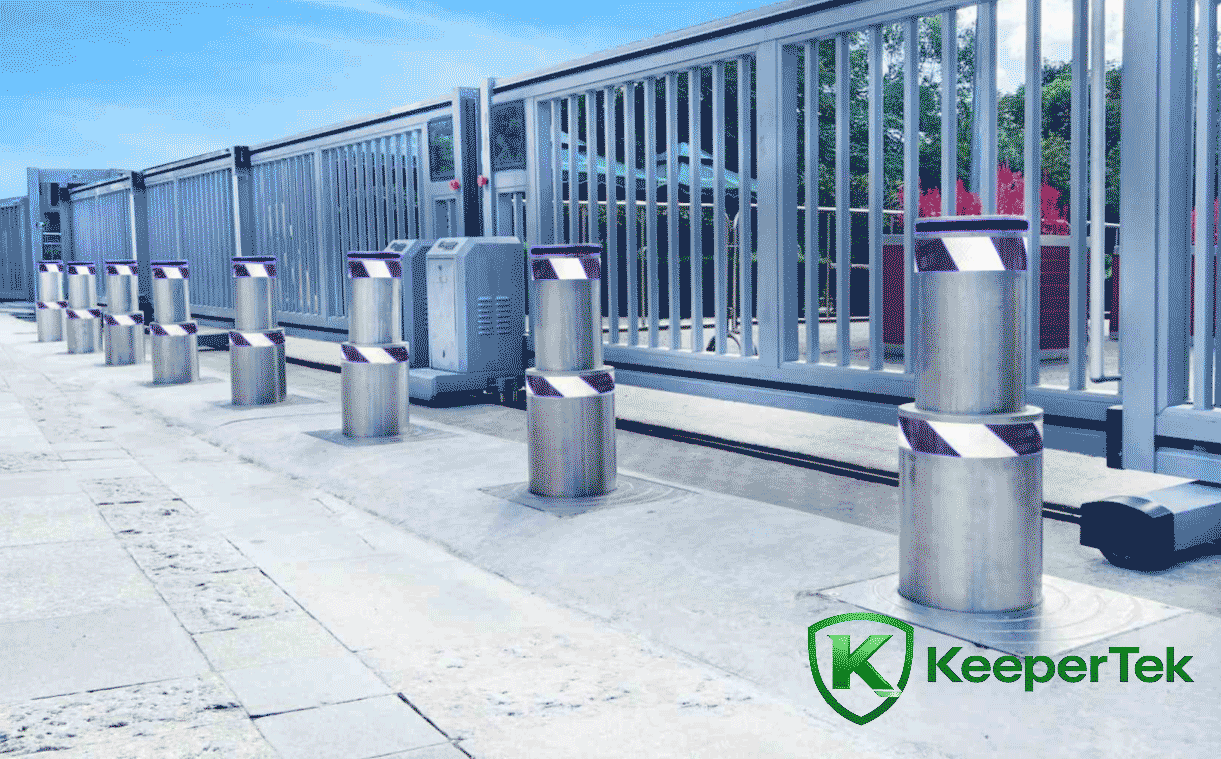

The lifting can be controlled in conjunction with other equipment such as license plate recognition, barrier gates, access control, infrared, radar, ground sensing, traffic lights, tidal lanes, fire alarms, etc.；

In the event of a power outage or malfunction, if the lifting column needs to be lowered when it is raised, the column can be lowered to the ground level through the button on the control box.；

Using 5CM wide reflective film, the reflectivity can reach more than 90%;

The lifting column is equipped with a high-brightness LED warning light bar as standard, which effectively improves the warning effect at night. The control box system has a warning light time control program that can set the lighting time.； Adopting internationally leading hydraulic drive technology, the entire system is highly safe, reliable and stable. ； remote control device ； Through wireless remote control, the lifting and lowering of road piles can be remotely controlled within a range of about 30 meters around the controller (depending on the radio communication environment on site). ；

The panel flange adopts anti-slip pattern design, and the flange thickness can be selected from 10mm/6mm; the flange thickness at the top of the column is 10mm/6mm;

Non-standard customization is accepted. The overall diameter, thickness, height, appearance, speed, etc. of the lifting column can be customized.

Configuration options

Height: height 400mm, height 800mm, height 1000mm, height 1200mm, height 1500mm

Thickness: 8mm thickness, 10mm thickness, 12mm thickness, 16mm thickness, 20mm thickness

Diameter: diameter 168+219mm, diameter 219+273mm, diameter 273+325mm, others
