Anti-riot lifting column

Reinforced hydraulic lifting column KT-DX01

Technical parameters

Cylinder diameter: 219mm

Cylinder height: 600mm

Cylinder thickness: 6mm

Lifting speed: 2S~4S

Number of guide pillars: 4

Waterproof grade: IP68

Cylinder material: 304 stainless steel

Working temperature: -35°C~75°C

Voltage/power: 220V/350W

Control method: control box/wireless remote control

Warning sign: Ultra-high brightness LED light strip

Flange specifications: diameter 395mm x thickness 10mm

Emergency function: Equipped with EPS emergency power supply and one-button descent

Extended functions: license plate recognition/fire alarm access control system linkage

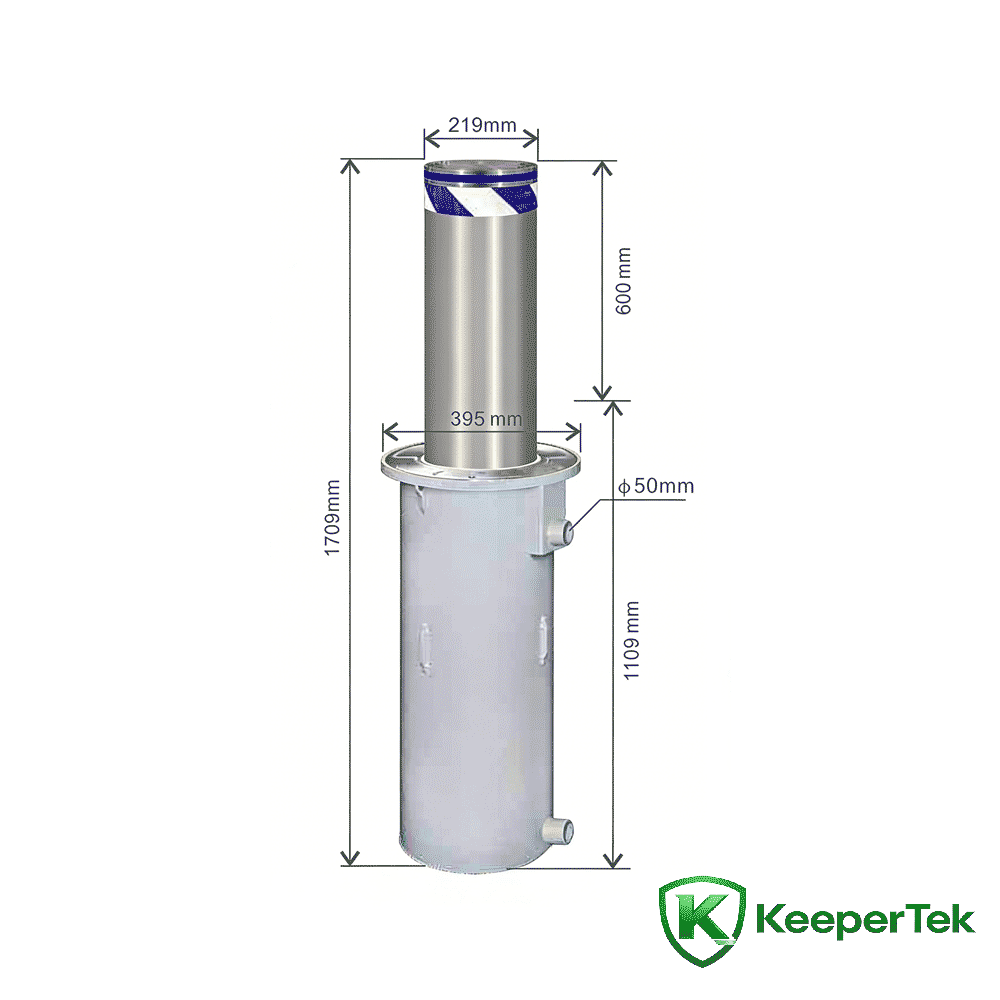

Embedded specifications: length 395mmx width 395mmx depth 1109mm

Features

It can be used normally after withstanding the passage of a 100-ton vehicle.；

Waterproof grade IP68, it can still be used normally even after being soaked in water:

The structure is sturdy and durable. The cable outlet and drain outlet are made of 4mm thick carbon steel. The outer barrel is designed with 4 welded bars.；

Using 5CM bright reflective film, the reflectivity is over 90%;

Optional high-brightness LED warning light bar can effectively enhance the nighttime warning effect.

The panel flange adopts anti-slip pattern design, and the flange thickness is optional 10mm/6mm;

The flange thickness at the top of the column is 10mm/6mm, and non-standard support is accepted for customization. The diameter, thickness, height, appearance, speed, etc. of the lifting column can be customized;

The lifting can be controlled in conjunction with other equipment such as license plate recognition, barrier gates, access control, infrared, radar, ground sensing, traffic lights, tidal lanes, fire alarm systems, etc.；

The cloud platform management system is supported to control the lifting column, and the mobile APP can be used to remotely control the rise and fall of the lifting column.

Configuration options

Height: height 400mm, height 800mm, height 1000mm, height 1200mm, height 1500mm

Thickness: 8mm thickness, 10mm thickness, 12mm thickness, 16mm thickness, 20mm thickness

Diameter: 168mm diameter, 273mm diameter, 325mm diameter, others
