Parking space guidance controller

Indoor video area controller KT-WB15

Technical parameters

Shell material: galvanized sheet

Capacity: 5 channels, a total of 60 video detectors with 3 parking spaces (6 video detectors with 6 parking spaces are equal to 2 video detectors with 3 parking spaces)

Network port: 8 dedicated network ports for video detectors + 2 uplink RJ45 ports

Working voltage: AC 110～240V

Working temperature: -30℃ ~ +75℃

Net weight: 4.2Kg

Environmental humidity: ≤90%RH (no condensation)

Power consumption: ≤2W

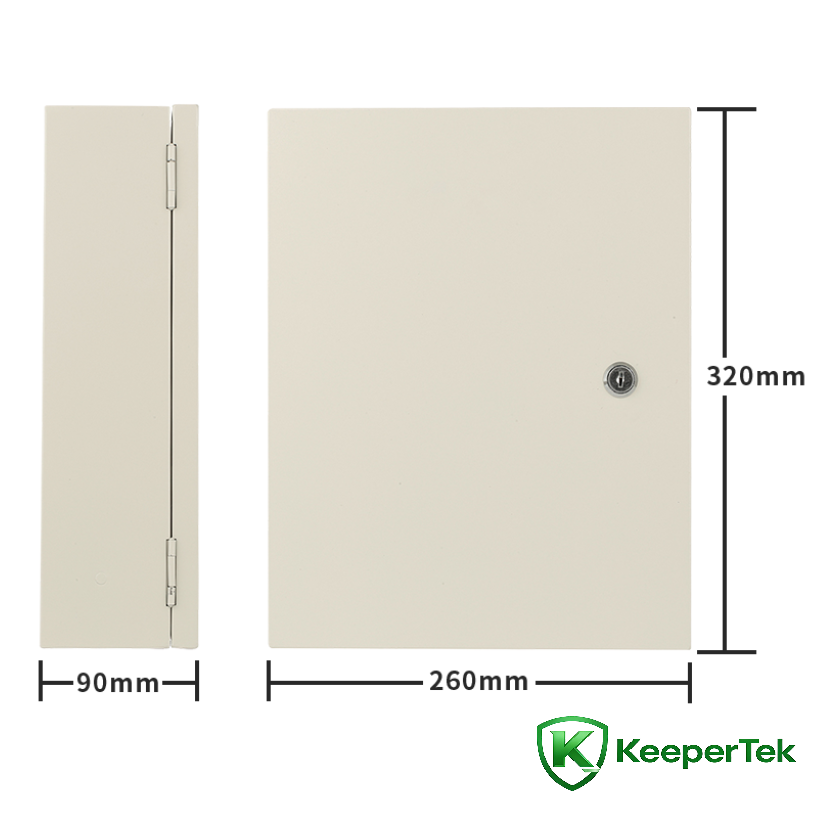

Specification size: 320*260*90mm

Applicable systems: Video parking guidance system

Features

The video area controller collects the image information, parking space status and license plate number uploaded by all subordinate video detectors, and transmits the relevant information to the system management platform through the network switch. Each video area controller can connect up to 60 3-parking space video detectors or 30 6-parking space detectors.

Adopting the internationally advanced 32-bit ARM processor and fully industrial-grade design to ensure the stability and reliability of the product

Use standard network cables to connect, greatly reducing wire costs and construction difficulty

The overall industrial design is adopted and rigorous testing is carried out to effectively ensure the reliable use of the equipment.

The equipment has short circuit, reverse connection, and misconnection protection design to prevent electrical damage to related equipment due to short circuit, reverse connection, misconnection, etc. caused by wiring errors during construction.

The power supply adopts industrial-grade design and has short circuit, overload, and overvoltage protection functions.

Supports network isolation function to isolate upstream/downstream networks.

Support remote upgrade
