License plate recognition parking system

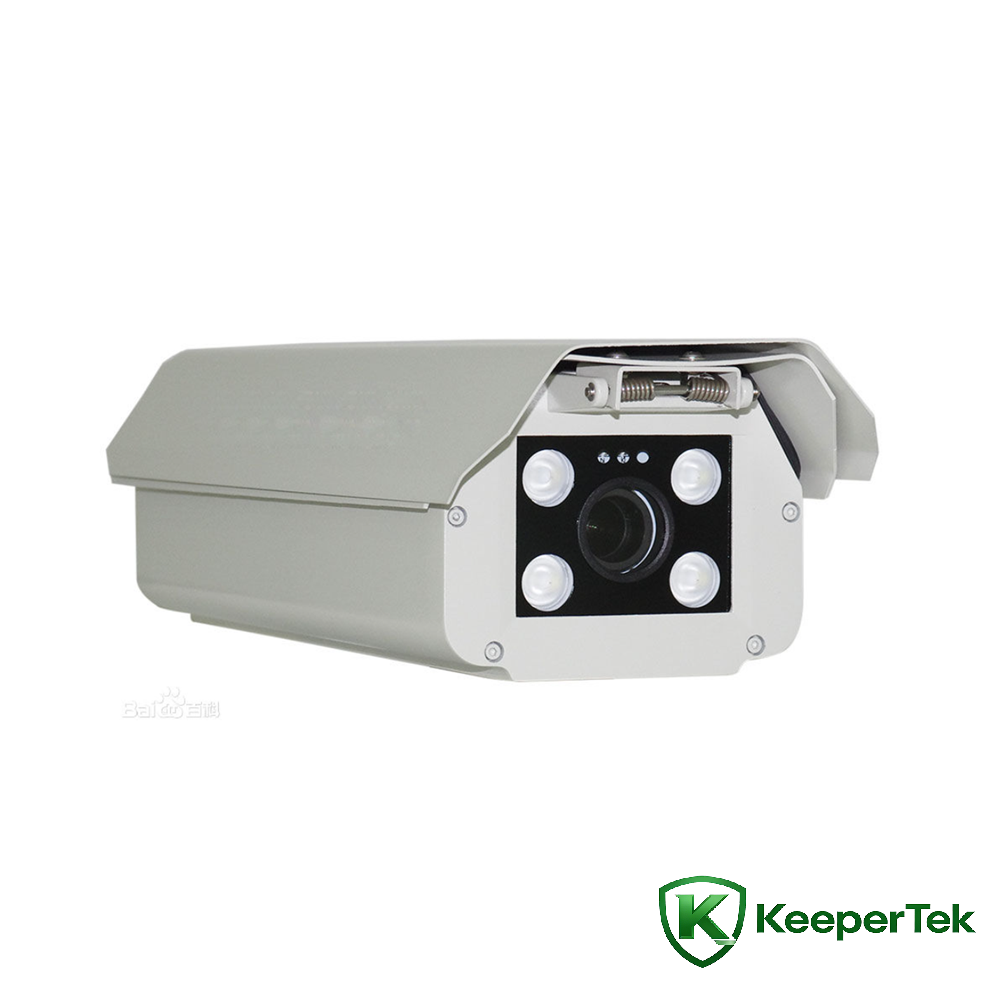

license plate recognition camera KT-LPR001

Technical parameters

Capture rate: ≥99.9%

Recognition rate: ≥99.8%

Adaptable speed: 0-40 km/h

License plate recognition features: license plate number, color, width, confidence

License plate anti-counterfeiting: supports abnormal license plate (photography and printing with mobile phone) alarms, accuracy rate 9≥5%

Unlicensed vehicle triggering: Supports unlicensed vehicle video triggering, with an accuracy of 95%

Car model recognition: Supports 7 car model recognition (car, SUV, MPV, minibus, large bus, minivan, large truck)

License plate whitelist: Supports accurate and intelligent fuzzy matching of whitelist license plate rules

Intelligent calibration: Supports intelligent calibration of license plate number, license plate type and color accurately or in a wildcard manner

Basic configuration: intelligent optimized dimming algorithm, brightness/contrast/saturation/clarity/image flip/exposure time, etc. can be set independently

Video compression standard: H.264/H.265

Video resolution: 640*360, 704*576, 1280*720, 1920*1080, 2960*1664

Compression output bit rate: 512Kbps~5000Kbps

Frame rate: 1~25 frames, default 25 frames

Communication protocol: SDK, ONVIF, HTTP, MQTT, RTSP, TCP/IP, UDP, RS485, NTP

FTP upload pictures: Supported, upload captured pictures to the server through FTP

VPN virtual private network: supports the establishment of virtual private network through OpenVPN

HTTP push: Supported, supports uploading recognition results and offline retransmission

MQTT push: Supported, supports uploading recognition results and offline retransmission

Dynamic domain name: Supports docking with 3322 dynamic domain name service

UPNP port mapping: support, automatically map HTTP/RSTP communication port

Offline networking: no host computer or server is required, and operational networking is automatically implemented between cameras

Parking lot management: supports the establishment of multiple parking lots and scene-based management of multiple cameras

Whitelist: Cooperate with strategies to meet vehicle hierarchical management

Linkage management: 3 auxiliary cameras (including license plate cameras and lane surveillance cameras) can be added to the same main device

Management protocol: PC\mobile management, PC management tools, SDK development kit, HTTP push

Cloud management: Remotely manage a single camera, centrally manage multiple cameras through accounts, and support cloud SDK development management platform

Sensor: 5MP high performance CIS

Resolution: 2960(H) x 1664(V)

Low illumination: 0.1LUX color (white light)

Electronic shutter: 0-1ms or customized

Lens: Standard 6mm fixed focus lens

Interface: M12

Image settings: brightness, contrast, saturation, image flip, exposure time, etc.

Noise reduction: supports 2D/3D noise reduction

Wide dynamic range: supported

Network interface: 1 channel 10/100Mbps adaptive RJ45 port

IO output: 2 channels

IO input: 2 channels

RS485: 1 way

TF card slot: 1 TF card slot, supporting a maximum capacity of 256G

Reset button: 1 channel Reset button

System light: The status light of the device flashes to indicate that the system is working normally; if it is always on or off, it indicates that it is starting up or is abnormal.

Temperature: Operating temperature: -30℃~70℃

Static electricity: contact 6KV, air 8KV；

Surge: 10/70 common mode 4KV, differential mode 2KV 8/20 common mode 2KV, differential mode 2KV

Anti-vibration: national standard

Power supply: 12V DC

Power consumption: Power consumption ≤ 3W

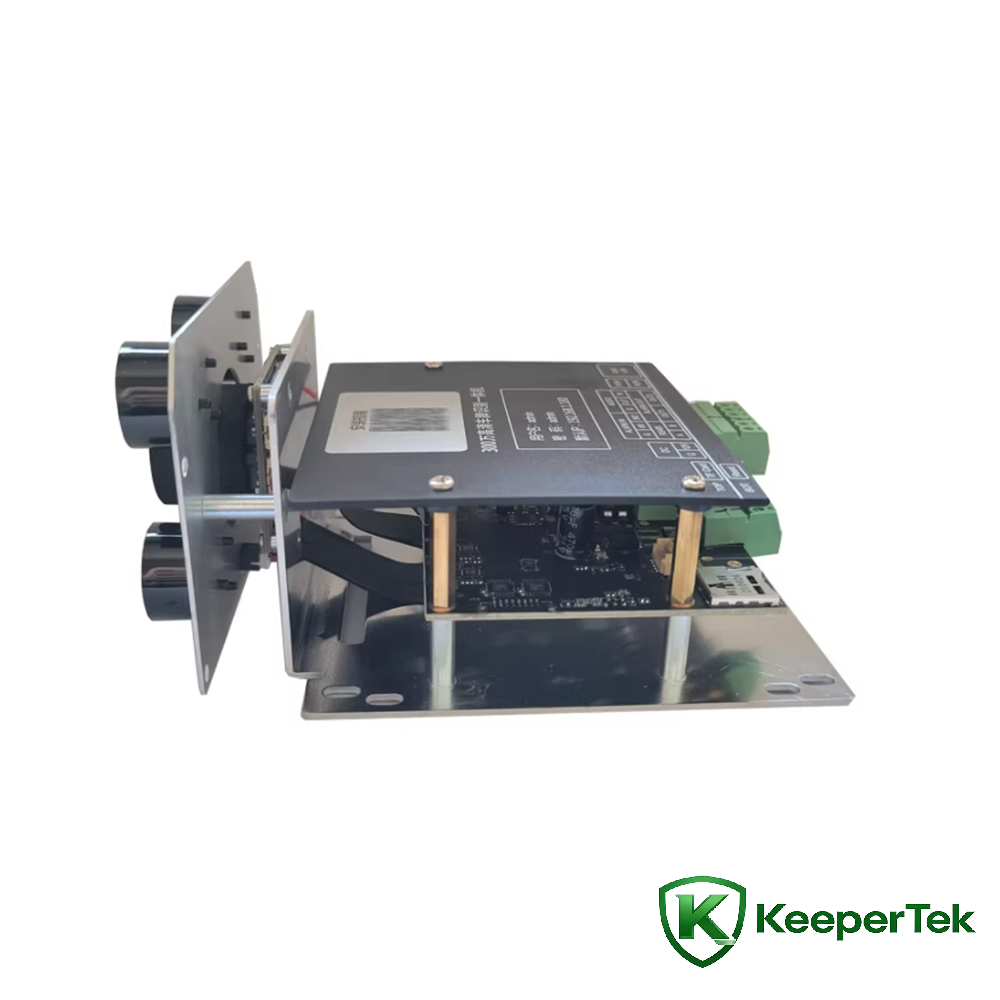

Protection: IP65 for the whole machine, the module is not waterproof

Overall dimensions: Whole machine: 440mm (L) * 144mm (W) * 103mm (H), module: 440mm (L) * 144mm (W) * 103mm (H)
