Parking space guidance screen

Parking space information screen KT-WB32

Technical parameters

Appearance material: galvanized steel plate sprayed with plastic + white PC + organic glass panel

Light source: red/green bright LED

Protection level: IP65

Working voltage: AC 110～240V

Working temperature: -30℃ ~ +75℃

Environmental humidity: ≤90%RH (no condensation)

Power consumption: ≤50W (one-way)

Communication method: RS485

Communication distance: ≤1000m

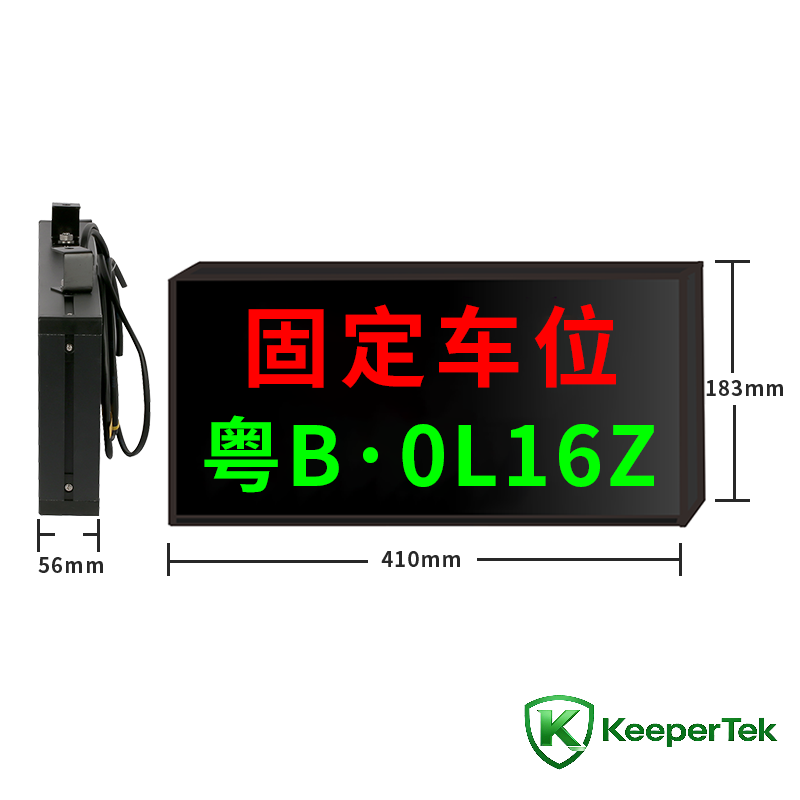

Size: 410*183*56mm

Features

The parking space information screen is installed directly above the parking space and can be used to display the license plate information of the fixed parking space or the license plate information of the parking space that has been reserved. It is convenient for reserved parking space owners to accurately find their own parking space and avoid other vehicles from parking.

The boot screen adopts a black aluminum alloy frame and has a simple and elegant appearance.

The boot screen adopts low power consumption design and has short circuit, overvoltage, overcurrent and overload protection.

The guidance screen displays diversified content and customizable text

The green indicator is clear and legible, the lamp beads have high luminous intensity, long viewing distance and wide viewing angle.

The combination of the parking space guidance screen and the intelligent parking space guidance system realizes automated management of the parking lot, reduces manual intervention, and improves management efficiency.
