Parking space guidance screen

Outdoor wired guidance screen pair Towards KT-WB29

Technical parameters

Appearance material: galvanized steel plate sprayed with plastic + white PC + organic glass panel

Light source: red/green bright LED

Protection level: IP65

Working voltage: AC 110～240V

Working temperature: -30℃ ~ +75℃

Environmental humidity: ≤90%RH (no condensation)

Power consumption: ≤50W (one-way)

Communication method: RS485

Communication distance: ≤1000m

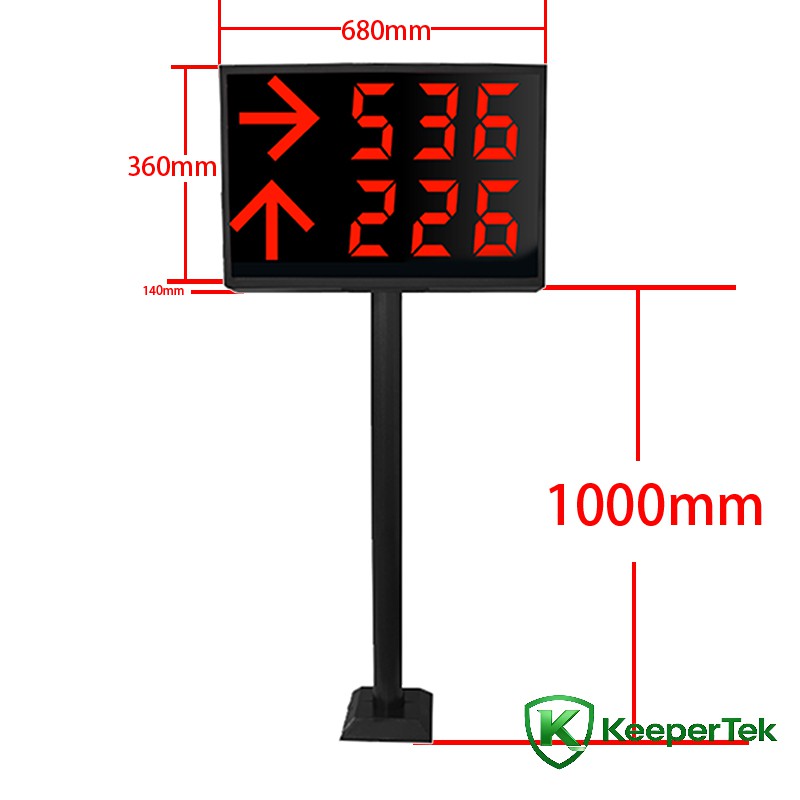

Size: Screen 680*360*140mm, pole height 1000mm (can be customized)

Features

The outdoor parking guidance screen can be set according to the divided areas of the parking lot. It can display the number of free parking spaces in each area of ??the current parking lot in real time all day long in the form of numbers, arrows and text, guide car owners to quickly find empty parking areas for parking, and successfully allocate traffic flow to the most appropriate location in the parking lot, ensuring smooth parking and full utilization of parking spaces, and improving the efficiency of entry and parking.

The boot screen uses P10 module + cold steel paint shell, with a simple and elegant appearance.

The multi-casing is designed to be waterproof and dustproof, and uses anti-UV exterior paint to prevent discoloration.

The boot screen has short circuit, overvoltage, overcurrent and overload protection

Eight directions of display content are supported to meet the needs of various intersections.

The red indication is clear and legible, the lamp beads have high luminous intensity, long viewing distance and wide viewing angle.

Parking space guidance screens help reduce blind cruising of vehicles in the parking lot, reduce traffic congestion, and optimize the parking environment.

The parking space guidance screen improves the driver's parking experience through clear instructions and information display, making the parking process smoother and more convenient.

The combination of parking space guidance screen and intelligent parking space guidance system realizes automated management of parking lots, reduces manual intervention and improves management efficiency.
