Parking space guidance screen

Indoor parking space guidance screen Three directions KT-WB26

Technical parameters

Appearance material: black aluminum alloy frame

Empty parking spaces: Use silk screen printed LED white luminous characters

Light source: red and green two-color LED lamp beads

Point spacing: 4.75 mm

Service life ≥100,000 hours

Working temperature: -30℃ ~ +75℃

Power supply voltage: AC220V±10

Maximum power consumption: ≤20W (unidirectional)

Environmental humidity: 5%--95%RH

Communication method: RS485

Bluetooth (used for debugging)

Communication distance: Rs485≤300m, Bluetooth≤8M

Pixel density: 44321 points/㎡

Resolution: 80*32=2560 dots

Driving mode: constant current

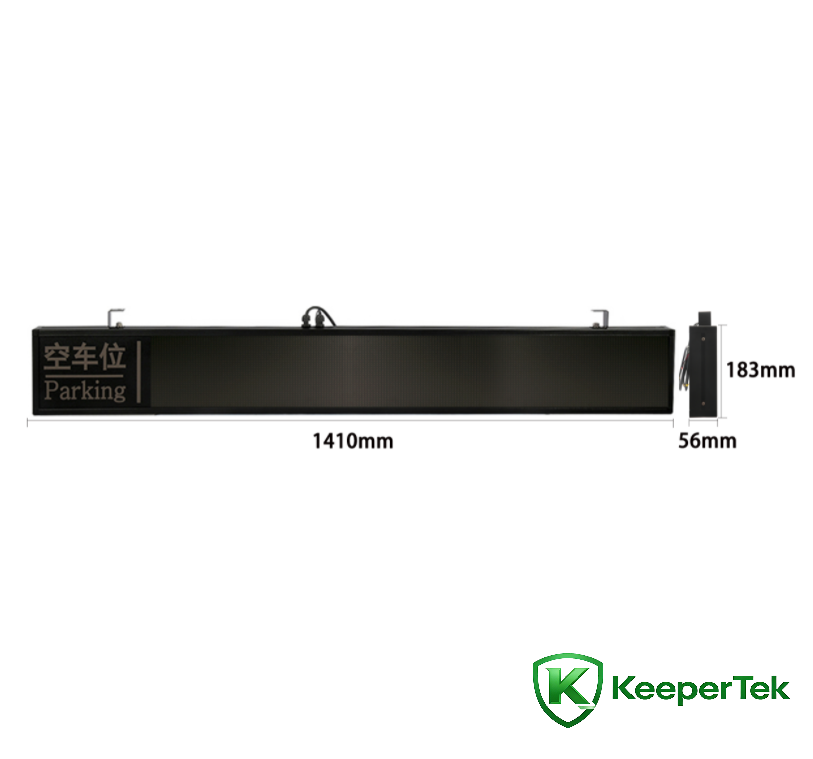

Three directions: 1410*183*56mm

Features

The indoor guidance screen can be set according to the number of areas/floors divided into the parking lot. It can display the number of free parking spaces in each area/floor of the current parking lot in real time in the form of numbers, arrows and text throughout the day, guiding car owners to quickly find empty parking areas for parking, successfully allocating traffic flow to the most appropriate location in the parking lot, ensuring the smooth flow of the parking lot and full use of parking spaces, and improving the efficiency of entry and parking.

The boot screen uses a black aluminum alloy frame + brown endurance board, with a simple and elegant appearance.

The boot screen adopts low power consumption design and has short circuit, overvoltage, overcurrent and overload protection.

Supports multi-directional display content to meet the needs of various intersections. Eight directions including "←", "↖", "→", "↗" and "↑" can be set

The two-color indication is clear and legible, the lamp beads have high luminous intensity, long viewing distance and wide viewing angle.

Mobile APP debugging address and arrow, convenient and fast debugging

The number of remaining parking spaces is displayed in red and green colors, and the number of early warnings can be customized. Green is displayed when the number is greater than the warning number, and red is displayed when the number is less than the warning number.

The combination of the parking space guidance screen and the intelligent parking space guidance system realizes automated management of the parking lot, reduces manual intervention, and improves management efficiency.

The parking space guidance screen improves the driver's parking experience through clear instructions and information display, making the parking process smoother and more convenient.

Parking space guidance screens help reduce blind cruising of vehicles in the parking lot, reduce traffic congestion, and optimize the parking environment.
