Parking space guidance screen

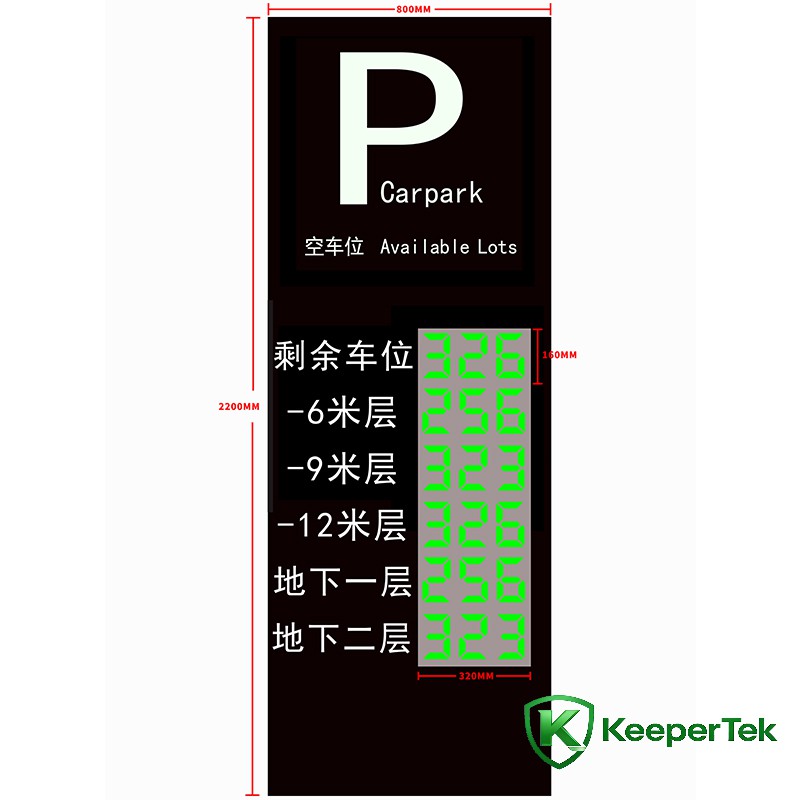

Large outdoor parking space guidance screen (Multi-layer customized model） KT-WB23

Technical parameters

Appearance material: galvanized steel plate sprayed with plastic + white PC + organic glass panel

show； Supports three or four display digits

Light source: red/green bright LED

Protection level: IP65

Working voltage: AC 110～240V

Working temperature: -30℃ ~ +75℃

Environmental humidity: ≤90%RH (no condensation)

Power consumption: ≤15W (single layer)

Communication method: RS485, Ethernet optional

Communication distance: ≤300m, TCP/IP≤100m

Size: 2000*750*140mm

Features

The large outdoor wired guidance screen is used to display the number of remaining parking spaces in the current parking lot in real time, intuitively and accurately displaying the status of parking spaces in the parking lot, so that car owners can know the number of remaining parking spaces in the parking lot at the entrance.

The boot screen uses an acrylic panel + cold steel paint shell, with a simple and elegant appearance.

The text part adopts laser cutting technology, embedded with light-transmitting panels and light boxes, and has good night vision effect.

The shell is designed to be waterproof and dustproof, and uses anti-UV exterior paint to prevent discoloration.

The boot screen adopts a low-power design and has short circuit, overvoltage, overcurrent, and overload protection.

The red and green two-color indicators are clearly distinguishable, the lamp beads have high luminous intensity, long viewing distance and wide viewing angle.
