Face recognition machine

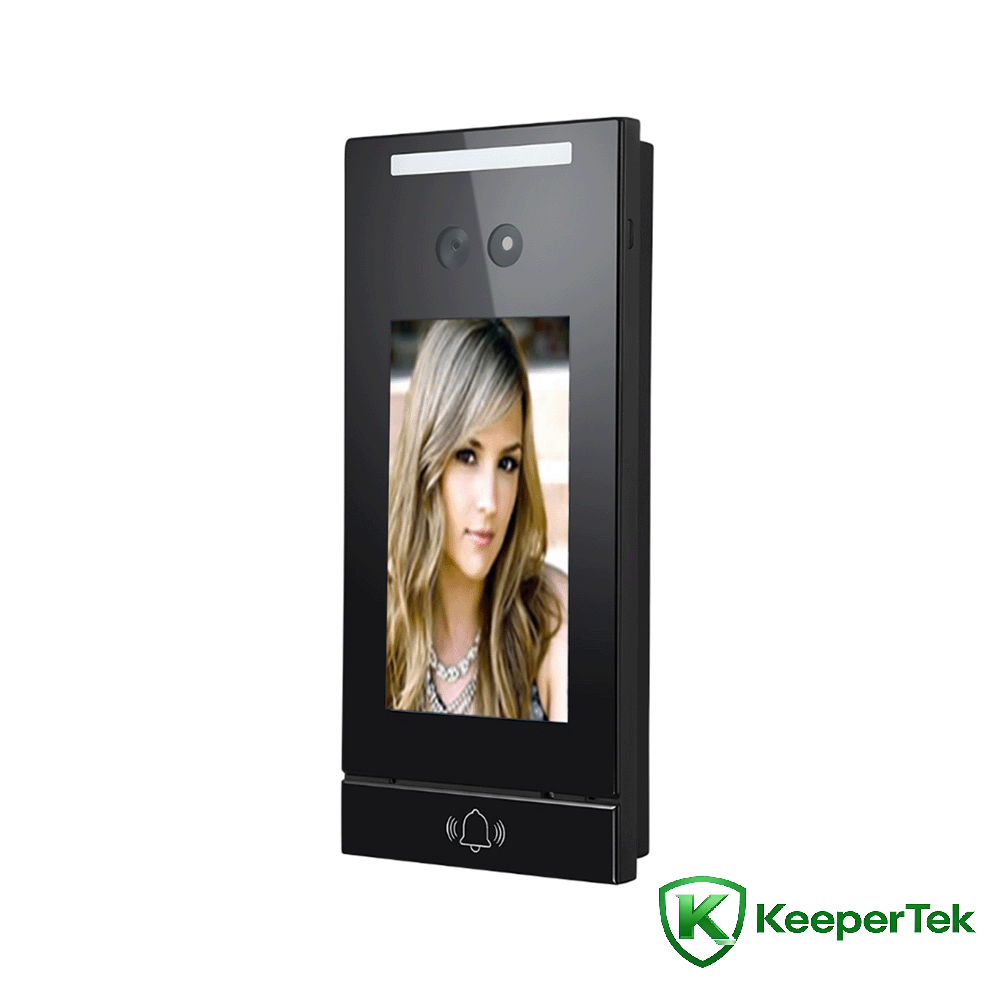

5inch people Face identify brush Card integrated machine KT-FR004

Technical parameters

processor Domestic dual-core processor + 1G memory + 8G EMMC

operating system Linux operating system

storage Support TF card storage (optional)

Camera Binocular, 2.1 million effective pixels, 1920*1080

Imaging device 1/2.8" Progressive Scan CMOS

Swipe card module Supports LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE multiple standards, supports up to 150Mbps download rate, and 50Mbps upload rate

Wifi module Optional, 2.4GHz WiFi SoC chip, integrated IEEE 802.11b/g/n baseband and RF circuit, maximum 72.2Mbit/s physical layer rate

speaker Standard configuration, voice playback content can be customized

Identification height 1.2~2.3 meters, angle adjustable

recognition distance 0.5~1.5 meters

face angle 30 degrees left and right, 30 degrees up and down

recognition time Less than 0.5 seconds

storage capacity 80,000 snapshot records

face capacity 10,000 sheets

Card types that can be swiped 13.56MHz, supports Mifare S50, S70 cards, ultralinght cards, NTAG cards, DESFire D21, D41, D81, non-contact CPU cards

Power input DC12V/2A

network interface 1 RJ45 10M/100M adaptive Ethernet port, customizable Gigabit network port

Wiegand interface 1 Wiegand interface output, 1 Wiegand interface input

Alarm interface 1 fire alarm input, 1 alarm output

Door sensor interface 1 channel door sensor interface input

Open door interface 1 door opening interface input

doorbell interface 1 doorbell interface output

door lock interface 1 channel door lock interface output

Communication interface 1 channel RS485 communication interface

camera Binocular camera, all-glass lens, visible light and near-infrared, supports living body detection

Effective pixels 2.1 million effective pixels, 1920*1080

minimum illumination Color 0.01Lux @F1.2 (ICR); black and white 0.001Lux @F1.2 (ICR)

signal-to-noise ratio ≥50db(AGC OFF)

wide dynamic range 120db, ISP algorithm partial exposure of face

video encoding H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding

working temperature-20℃ - +60℃

Working humidity 0~90% relative humidity, no condensation

Equipment power 15W(MAX)

Salt spray level Rp level 6 and above

antistatic Contact ±6KV, air ±8KV

powered by DC12V/2A

Protection level IP42

Screen specifications 5-inch high-definition IPS screen

Equipment size 205 (length) * 95 (width) * 24.5 (thickness) mm

Features

Support binocular live body detection

Supports face tracking and exposure of people moving in strong backlight environments

Unique face recognition algorithm, accurately recognizes faces, face recognition time is less than 0.5s

Built-in domestic CPU

Using LINUX operating system, the system is stable

The H.265 encoding format video stream is directly connected to NVR and other storage devices through ONVIF protocol and GB28181 protocol.

Supports local storage in TF card, with continuous storage of pictures for 1 year and videos for 1 month or longer (depending on the capacity of the optional TF card)

Mean running time between failures MTBF＞50000h

Supports 10,000+ face comparison libraries and 80,000 recognition records

Rich interface protocols, supporting TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocols under Windows/Linux and other platforms

Working temperature: -20℃- +60℃

Indoor IP42 waterproof and dustproof

Support anti-tamper alarm

Host built-in IC card reader

Supports microphone input audio and speaker output audio

Rich hardware interfaces (I/O, WG26, WG34, RJ45, door sensor, doorbell, door opening, alarm, RS485)

5-inch IPS full-viewing HD display, no smear or delay in images

Automatic gain and automatic white balance allow the true color of the image to be restored naturally

Built-in black light level sensor dedicated for video surveillance, more accurate low-light recognition

3D noise reduction and fog penetration technology make monitoring images under low illumination clearer and more detailed

Support code stream and I frame interval settings

Support partial blocking of video area

Support ROI encoding

Automatic white balance, manual white balance available

Support maximum exposure time setting

Support mobile phone monitoring settings

Support 2D noise reduction and 3D noise reduction

Supports recording schedule time period and upload method settings

Supports video brightness, contrast, hue, saturation, and gamma adjustment

Support setting the maximum automatic exposure time

Supports face intelligent exposure and face intelligent enhancement settings
