Electric door opener

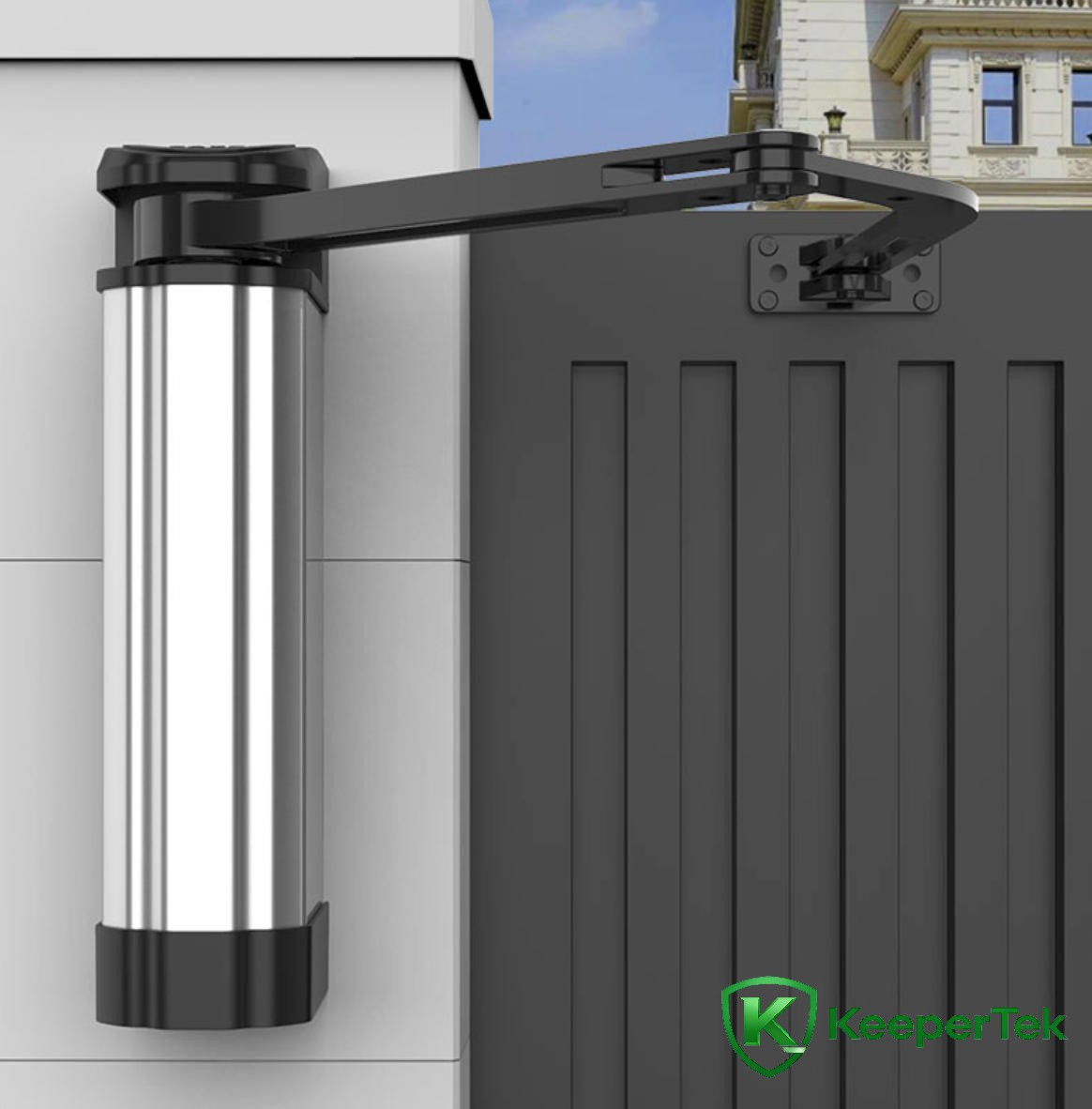

Side mounted door opener KT- EDO001

Technical parameters

Drive mode: crank connecting rod drive

Supply voltage: 220VAC±15% 50Hz

Motor working voltage: 24VDC

Motor power: 40W

Rated torque: 24.6Nm

Angular velocity: 69.7°/s

Maximum door opening angle: ±90°

Maximum door width: 1.5m (single leaf)

Motor thermal protection: F level 155℃

Frequency of use: continuous use below 70℃

Working environment temperature: -25-70℃

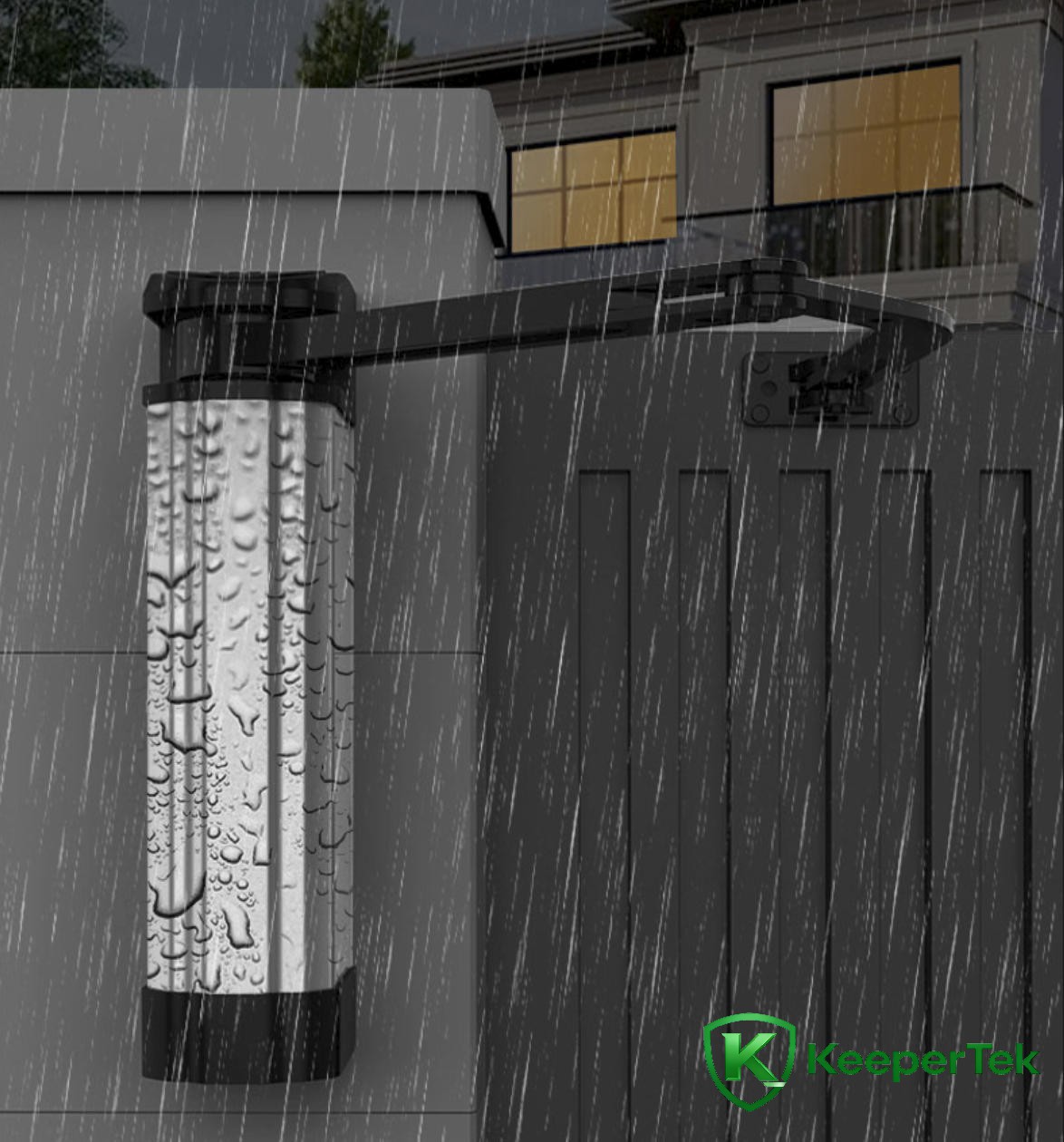

Usage environment: Use indoors or outdoors in a sheltered environment；

Operating noise: ≤60dB

Temperature rise: ≤15℃

Equipment packaging weight: 6.4kg

Body size (width*height*thickness): 89.6 ×355.7× 105.7mm

Pack size: 400 ×280× 110mm

Fixed base size: 350 × 85mm

Features

Support WIFI or 4G

Rebound adjustment when encountering resistance

Door opening delay adjustment

Open door angle learning

Delay door opening function

Remote door lock function

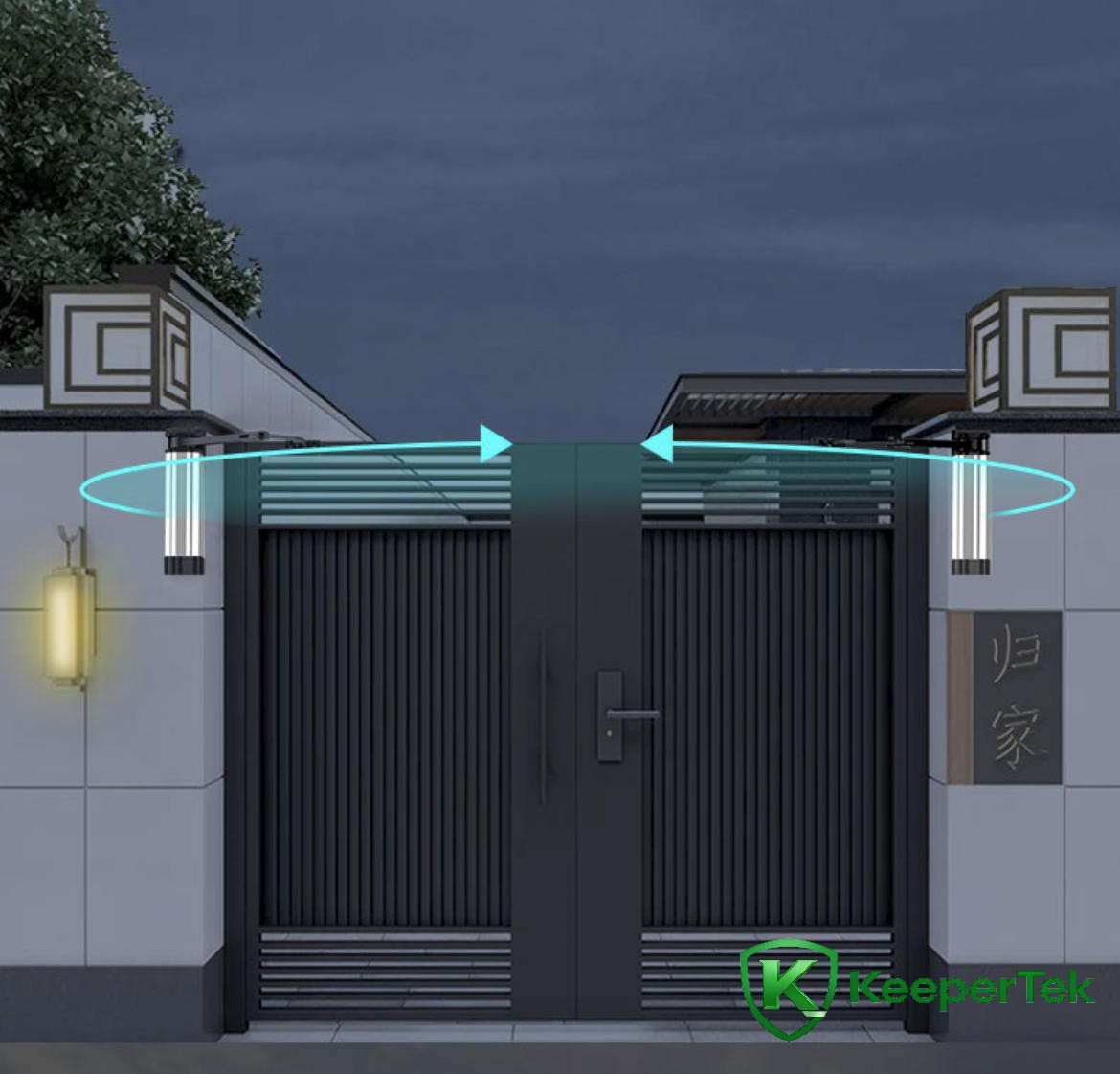

Double door linkage function

Double door function

Switching speed adjustable

Support electronically controlled lock

Support Bluetooth adjustment

Support secondary development
