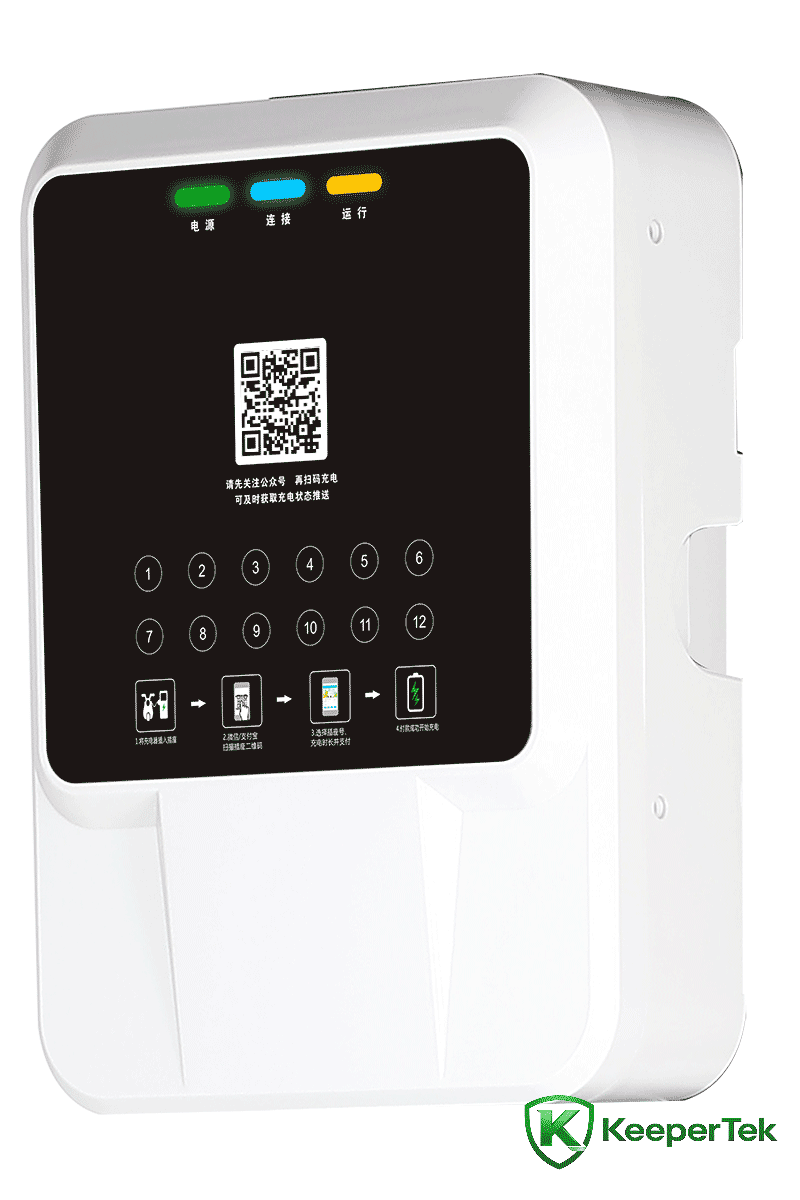

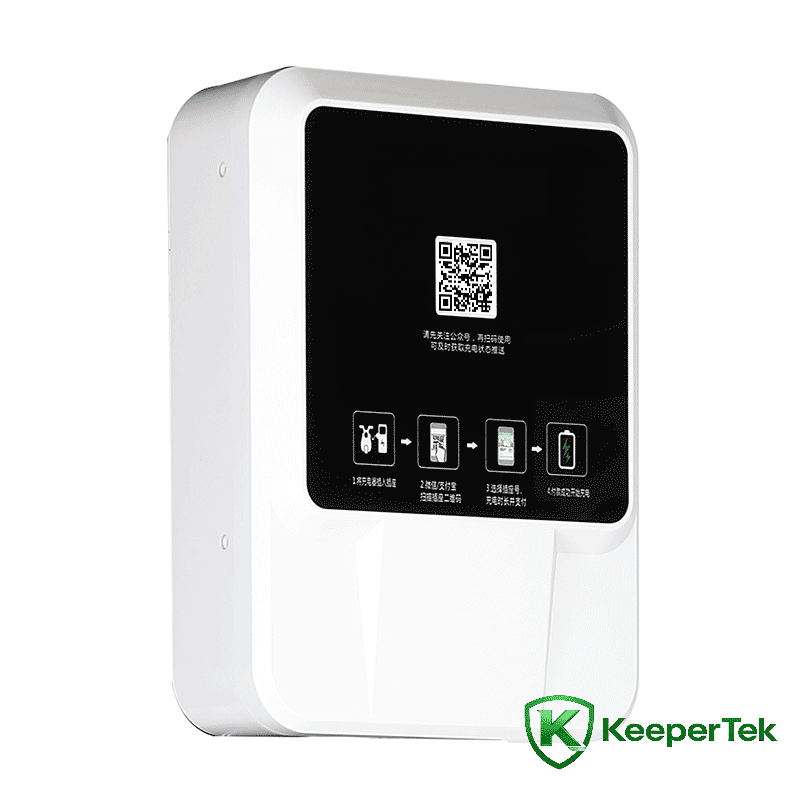

4Road motorcycle charging pile KT-HC13

Technical parameters

Appearance material: ABS/PC plastic + acrylic

Installation method: wall-mounted\pillar type (with hanging column)

Input voltage: AC220V±10%

Input frequency: 50±1Hz

Output voltage: AC220V±10%

Output power: single channel maximum load 800W

Standby power: ≤2W

Current size: 0.1~10A (can be set)

Current detection: supports real-time monitoring of dynamic current 10 times/second

Human-machine interface: LED indicator light

Operation instructions: power, charging, alarm

Charging mode: auto-stop when full/fixed amount

*Payment method: pay by card/pay by scanning QR code (can be customized)

Metering and billing: counting/timing/metering (can be set)

Communication interface: Ethernet/RS485/4G (optional)

*Data openness: Support third-party software platform access (can be customized)

*Support extension: face recognition (customizable)

Implementation standards: GB\T 20234, GB\T 18487, NB\T 33008, NB\T 33002

Management features: power-off memory, settable rates, black and white lists, data communications, integrated card

Safety functions: overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, overtemperature protection, lightning protection, emergency stop protection, leakage protection

Applicable environment: indoor/outdoor

Working temperature: -20℃～+50℃

Relative humidity: 5% to 95% without condensation

Protection level: IP54

Cooling method: natural cooling

Reliability (MTBF): ≥18000h

Optional items: The above * options can be customized

Features

Protection level: IP54, supports outdoor use Human-machine interface: charging status indication, ultra-high power density of card reader, ultra-high reliability insulation detection, connection detection, overvoltage

Overcurrent protection, emergency stop and other functions can be quickly connected to different operation management platforms and support different charging payment methods.；

1. It has three status indicators: power, charging and fault.

2. It has functions such as emergency stop connection confirmation detection, charging door opening detection, charging gun locking, etc.

3. Simple operation: swipe the card to start charging directly/scan the QR code with your mobile phone to start charging

4. Charging function: automatic full/quantitative charging/timing charging/priced charging

5. Multi-mode operation management: local settlement operation/platform operation
