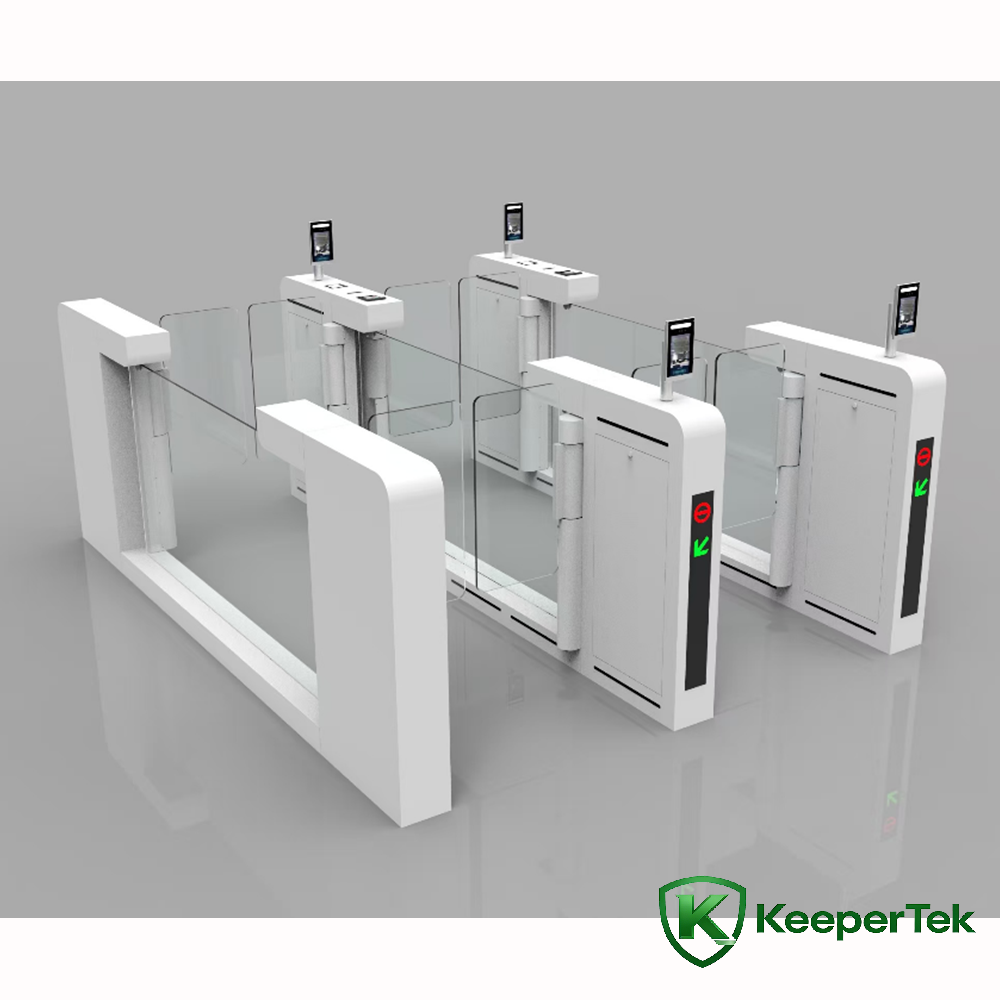

Anti-trailing AB door access gate

Paint AB brake KT-JSDAB01

Technical parameters

Gate composition: chassis, movement, control panel and power supply

Turning direction of turnstile: one-way/two-way

Movement drive mode: servo motor

Gate opening time: 0.2 seconds

Power input: AC220V±10%, 50Hz±4% automatically converted into gate operating voltage DC24V, DC12V

Input interface: Dry contact signal, 12V level or 12V pulse signal with pulse width ≥100ms

Communication interface: Rs485 (distance ≤1200 meters), TCP/IP (optional)

Baffle material: acrylic or stainless steel

Infrared sensor: 16 pairs standard (can be added)

Working temperature: -10℃~60℃, relative humidity 5%~95%, no condensation

External devices can be connected: IC card reader, ID card reader, code scanning module, face module, fingerprint module. (External devices need to be customized)

Working environment: indoor, outdoor

Service life: more than 15 million times of continuous opening and closing

Size: 3150×185×1050MM
