Electric advertising door

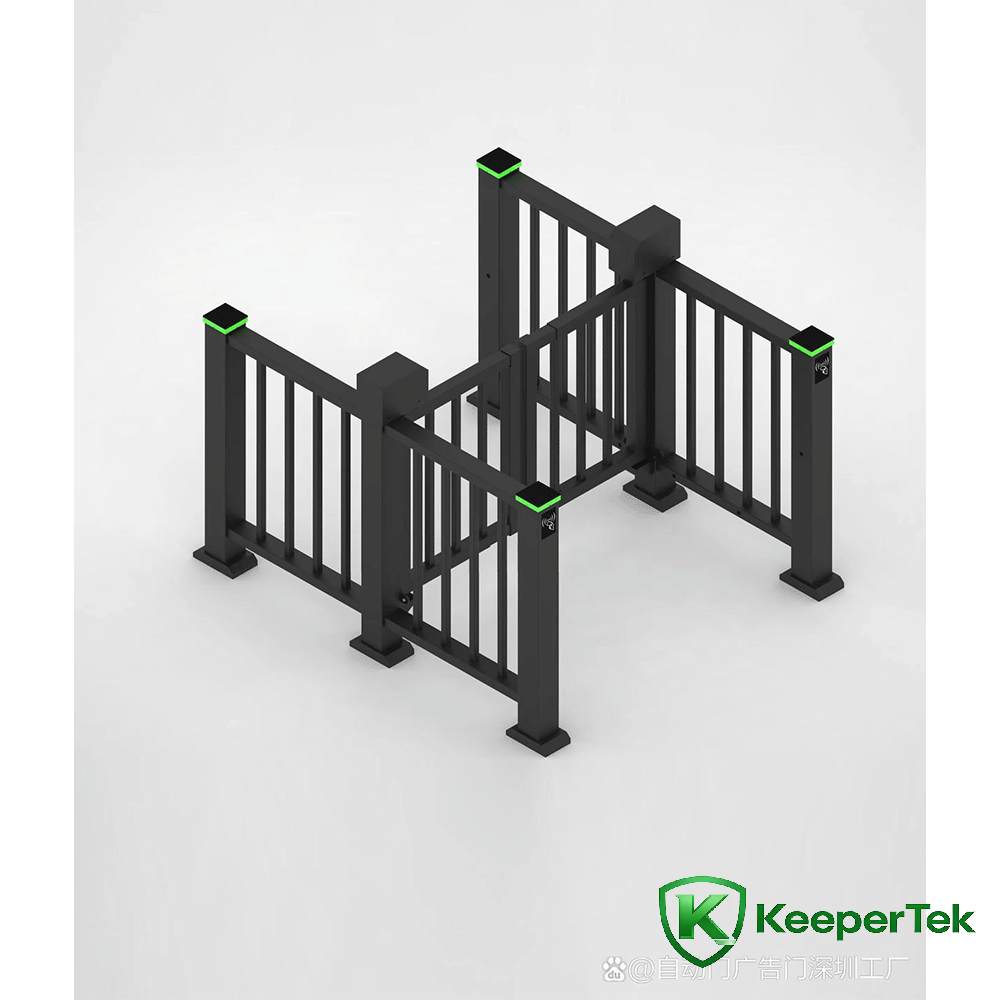

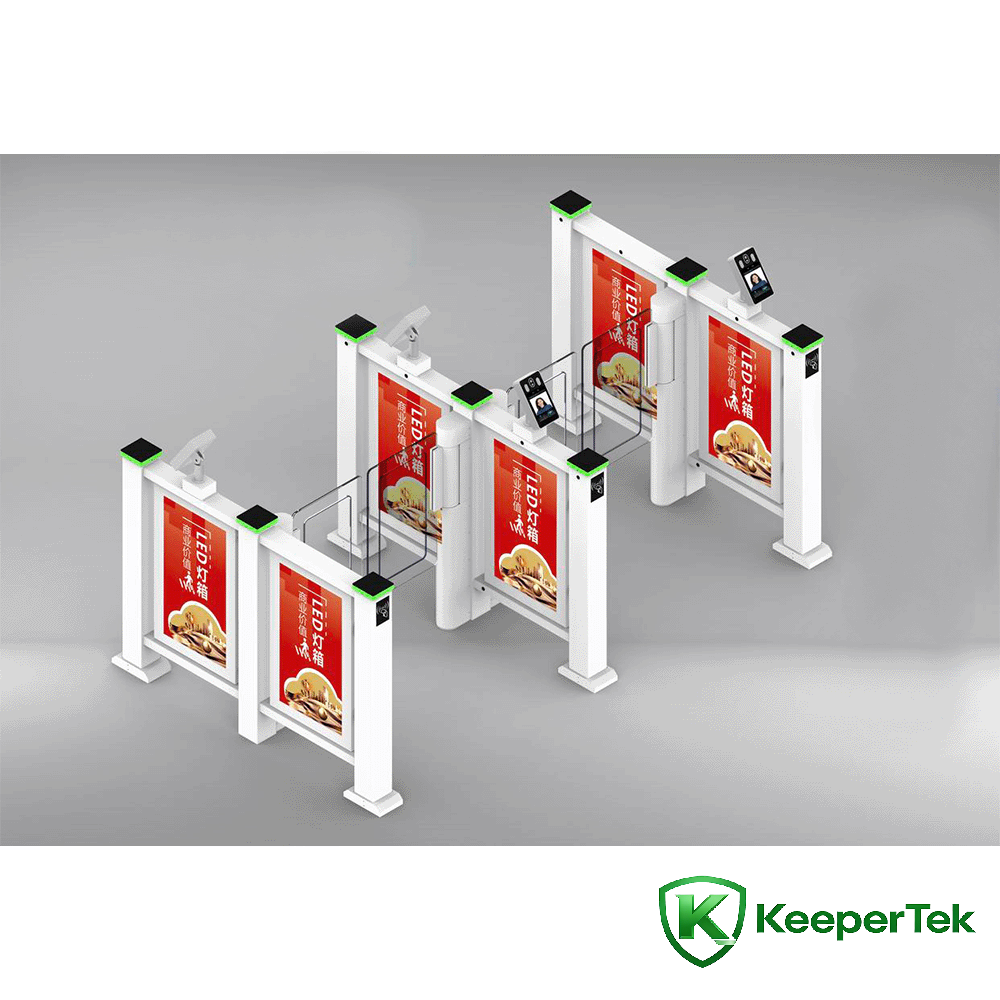

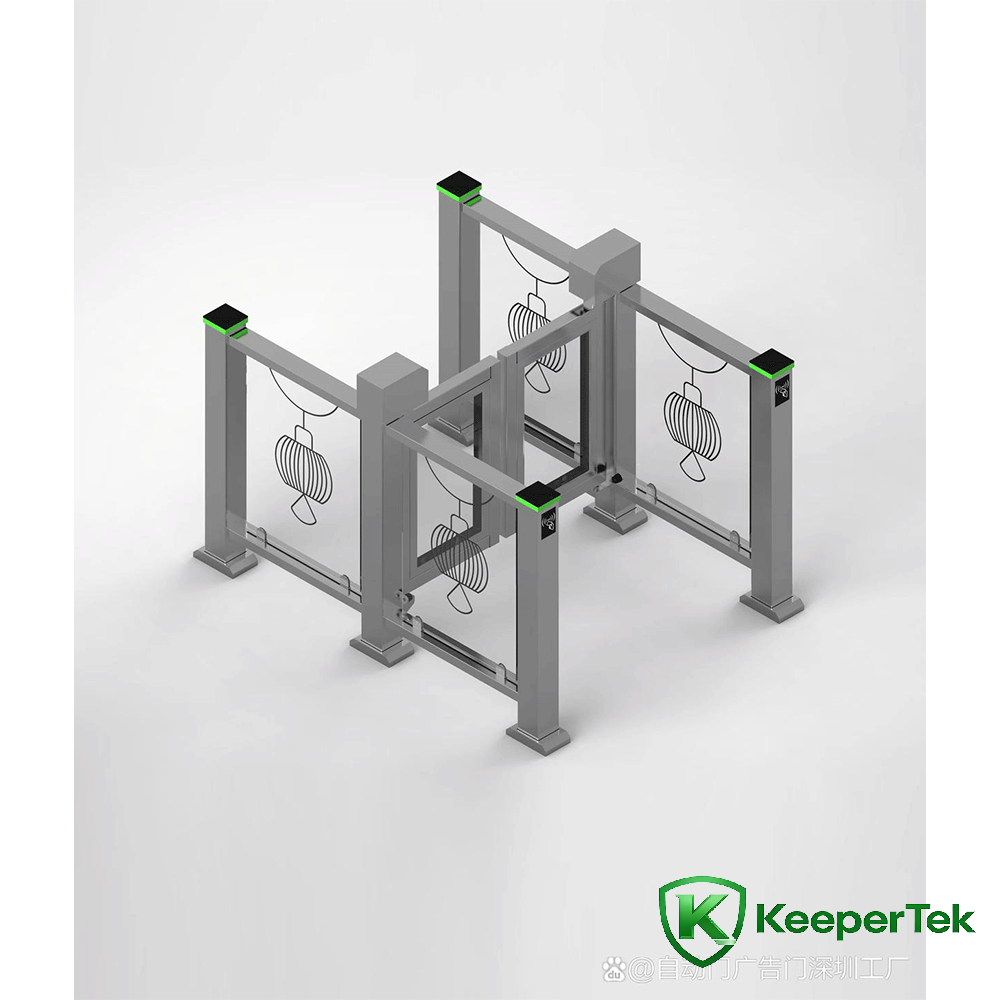

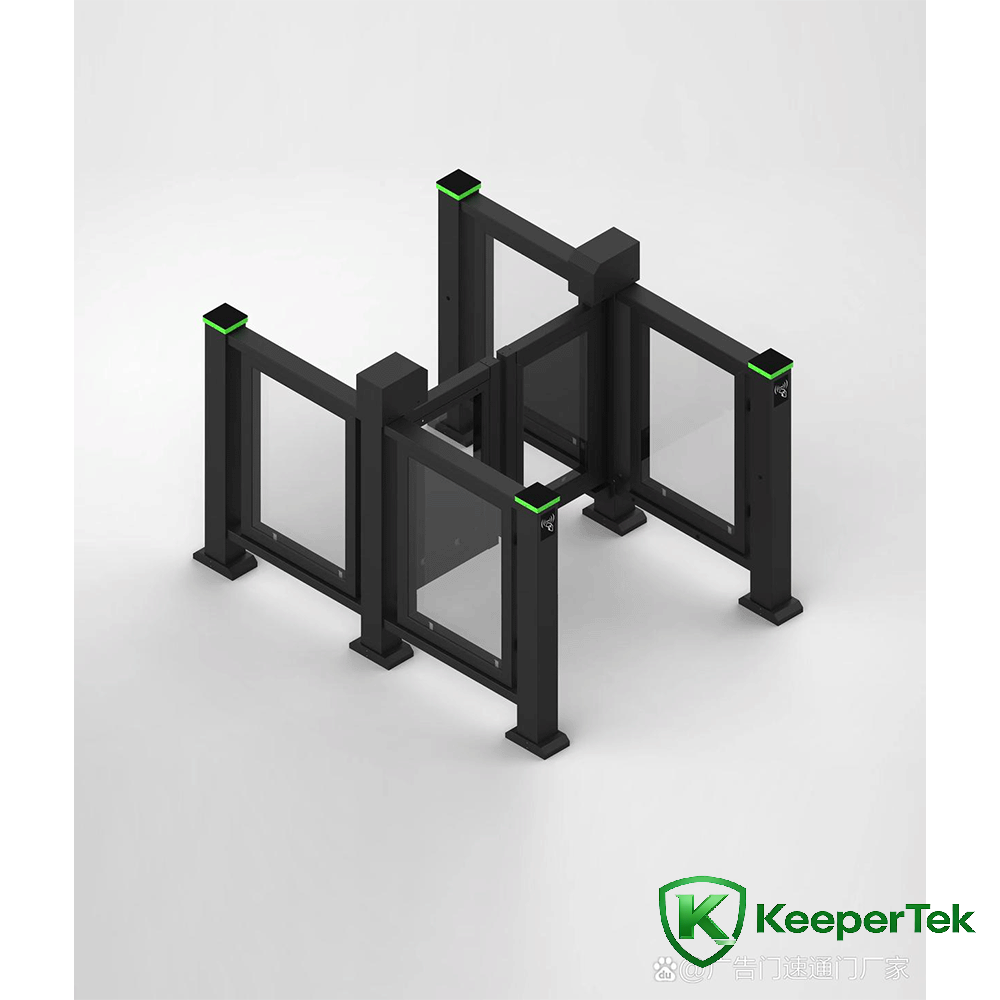

Electric advertising door with guardrail KT- EAG004

Technical parameters

Door opening angle: 90 degrees (can be customized to 180 degrees)

Power: static 10W, maximum working power 60W

Opening/closing speed: adjustable from 1 to 9 levels (corresponding to door opening time of 10-3S)

Open door holding time: 1-99 seconds

Dimensions: can be customized

Advertising: light box advertising, optional no advertising

Noise: less than 50 db；

Continuous operation: 5 million times without failure

Authentication to open the door: card swiping, face recognition, fingerprint, etc.

Signal input: relay signal, voltage signal (5-24V)

Motor overcurrent, overload, short circuit protection: supported

Intelligent obstruction and door reversal protection: supported

Precise adjustment of motor current, thrust and speed: supported

Magnetic induction limit: support

Power requirements: DC24V 6A

Operating environment temperature: -10℃～50℃

Operating environment humidity: 30% ~ 50% (no condensation)

Scope of application: Pedestrian passages in residential areas, parks, factories, non-motor vehicle passages
