AC charging pile

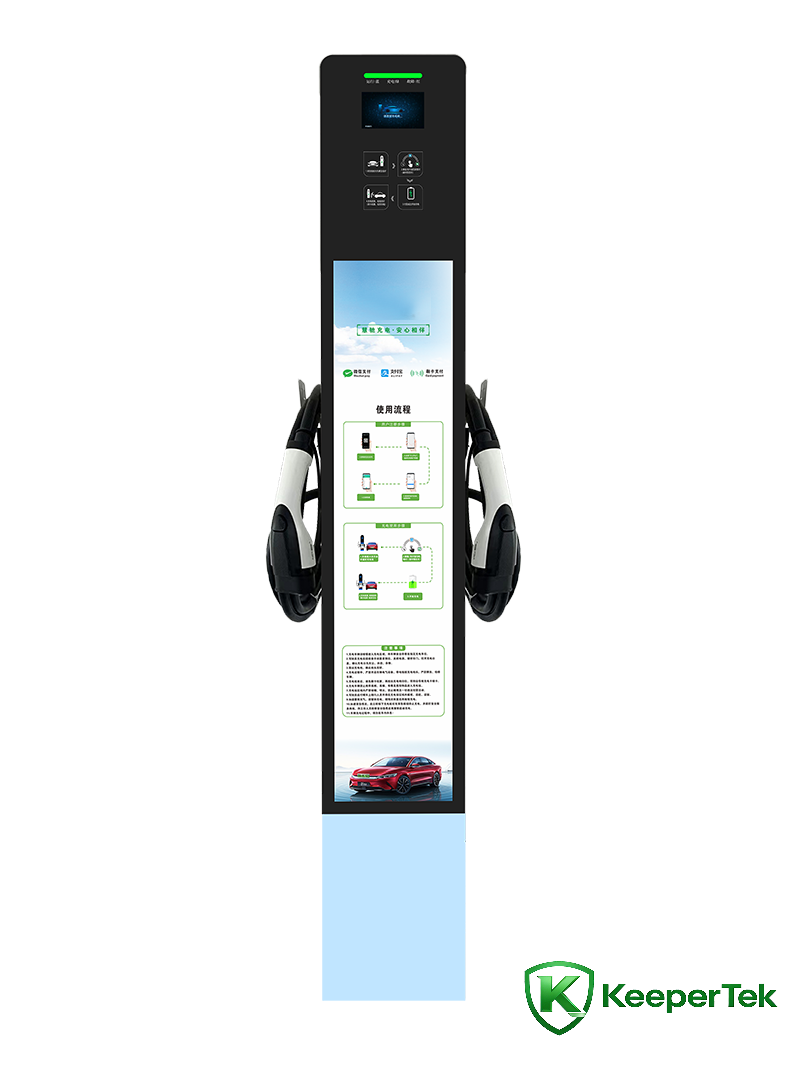

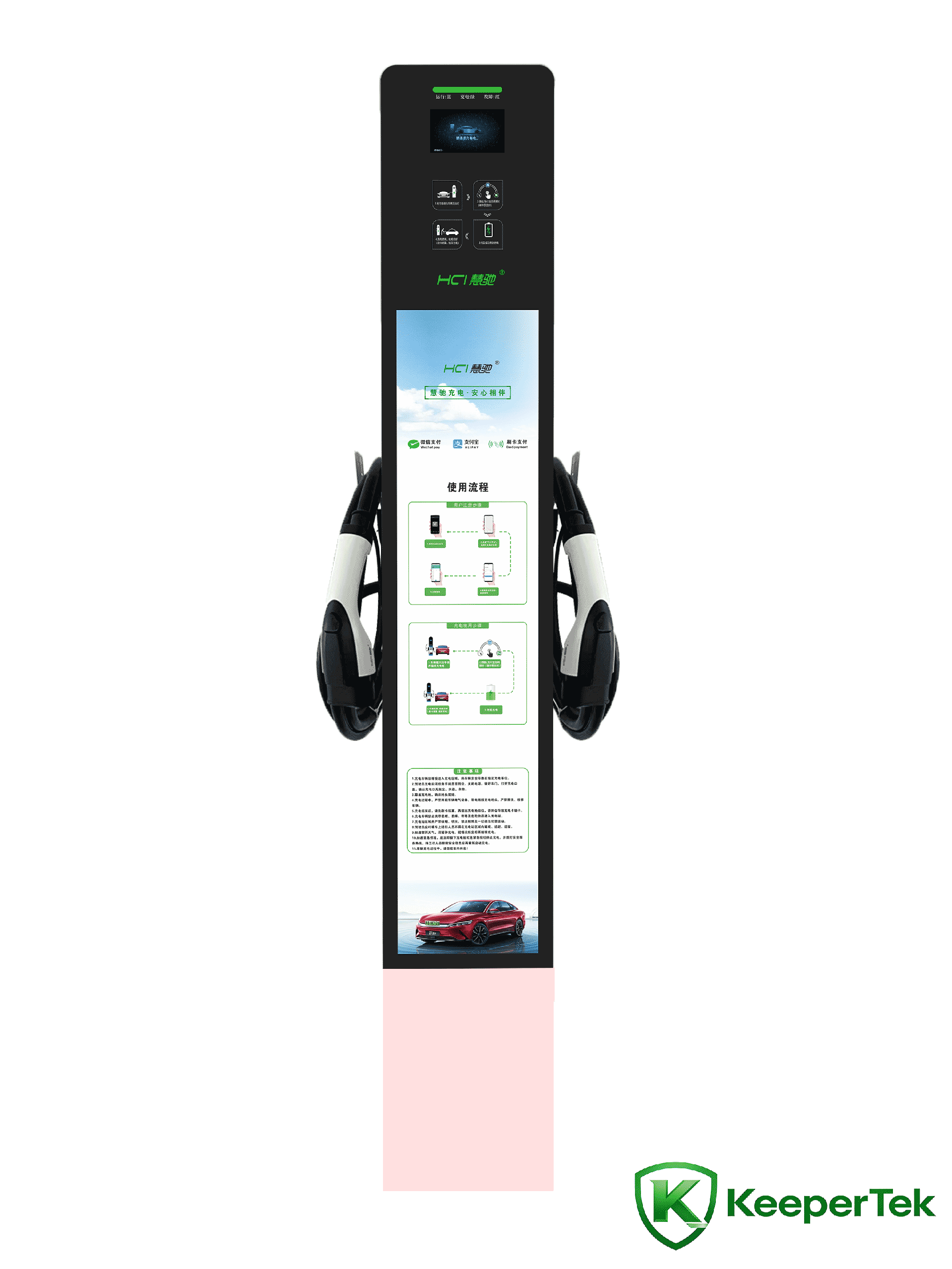

14KW Floor-standing double gun AC pile KT-HC08

Technical parameters

Appearance material: sheet metal + tempered glass:

Installation method: floor-standing

Wiring method: bottom in and bottom out:

*Charging cable length (m): 5m (can be customized)

Input voltage: AC220V ±15% L+N+PE

Input frequency: 50±1Hz

Rated power: 14KW

Output voltage: AC220V±15%

Maximum output current: 32A*2:

Measuring accuracy: Level 1

Current limiting protection value: 1.1 times:

Human-machine interface: 4.3-inch LCD display, LED indicator light

Operation instructions: power, charging, alarm:

Charging mode: automatic stop when full/fixed amount of electricity/fixed time

*Payment method: Pay by card/pay by scanning QR code (can be customized):

Metering and billing: electricity billing (accuracy level 1.0)

Communication interface: Ethernet/RS485/4G (optional):

*Data openness: Support third-party software platform access (can be customized)

*Support expansion: face recognition/license plate recognition/parking space lock/parking radar (customizable):

Implementation standards: GB/T20234.1-2015, GB/T20234.2-2015, NB/T 33008.2-2013, GB/T 29318-2012

Management features: settable rates, data communication, integrated card

Safety functions: overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, overtemperature protection, lightning protection, emergency stop protection, leakage protection

Environmental indicators: Applicable environment: indoor/outdoor:

Working temperature: -20℃～+50℃

Relative humidity: 5% to 95% without condensation:

Protection level: IP54

Cooling method: natural cooling:

Reliability (MTBF): ≥18000h

Optional items: The above * options can be customized

Features

With a stylish and simple appearance, the product is highly integrated with AC charging interface, human-computer interaction interface, electrical safety design, control, measurement, safety protection and other units. It can be used with electric vehicle on-board chargers to provide multiple charging methods such as card swiping and mobile payment.

1. It has three status indicators: power, charging and alarm.

2. It has functions such as emergency stop connection confirmation detection, charging door opening detection, charging gun locking, etc.

3. Simple operation: swipe the card to start charging directly/scan the QR code with your mobile phone to start charging

4. Charging function: automatic full/quantitative charging/timing charging/priced charging

5. Multi-mode operation management: local settlement operation/platform operation

6. Payment method: card payment, WeChat/Alipay payment
