AC charging pile

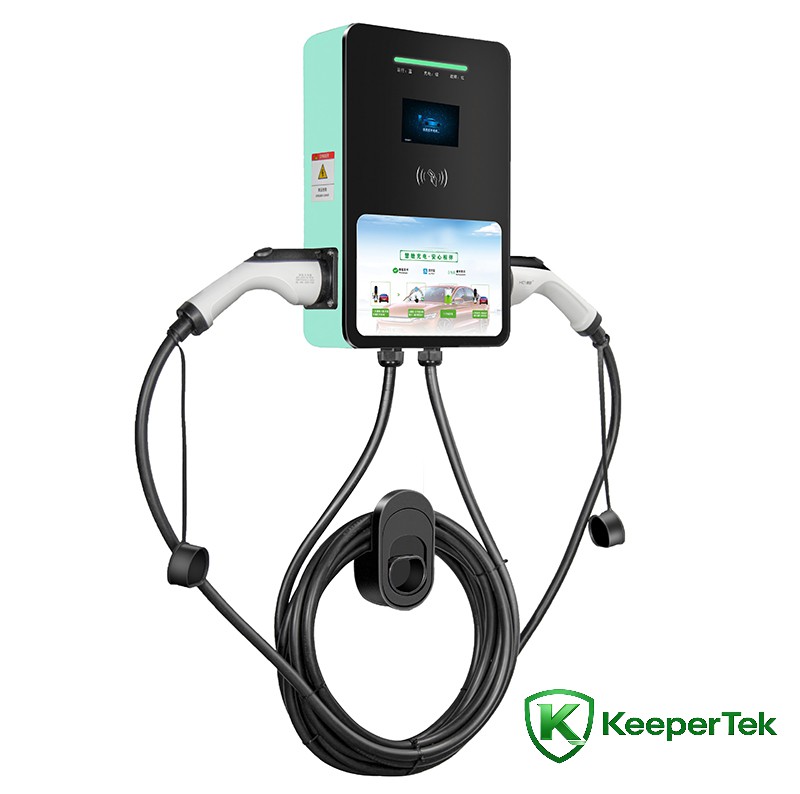

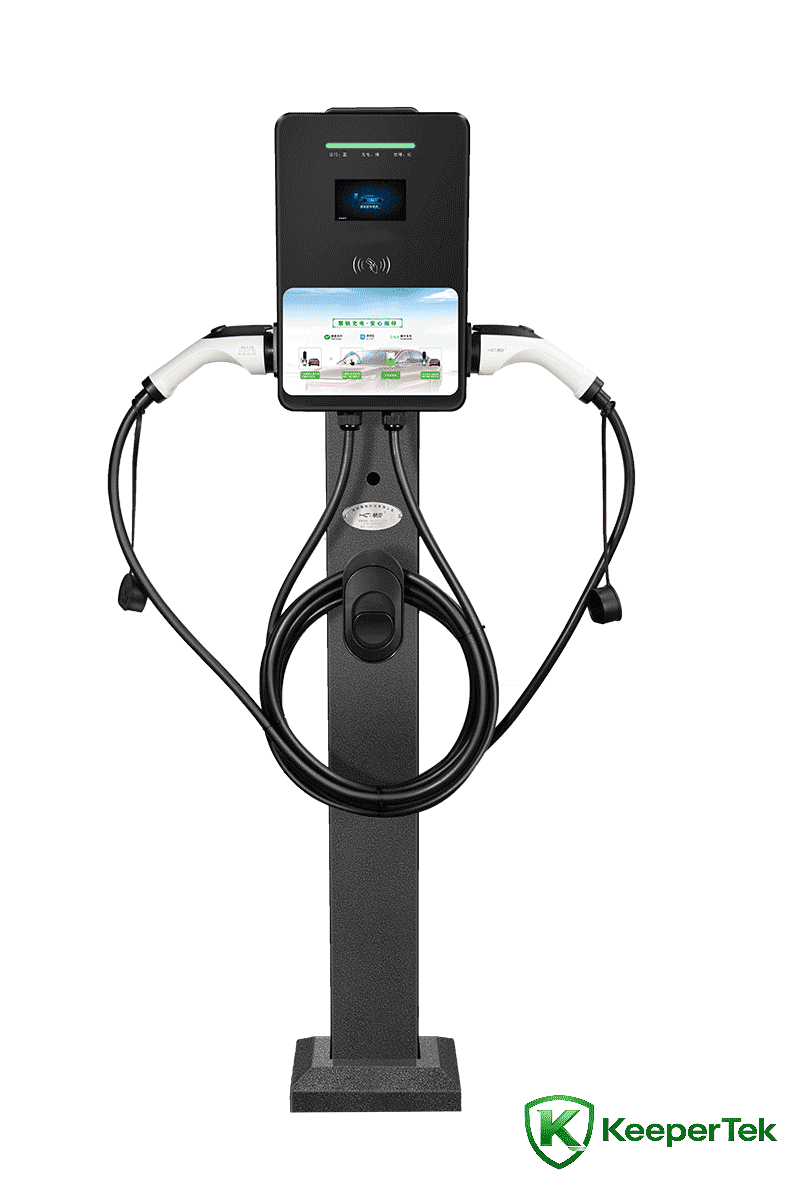

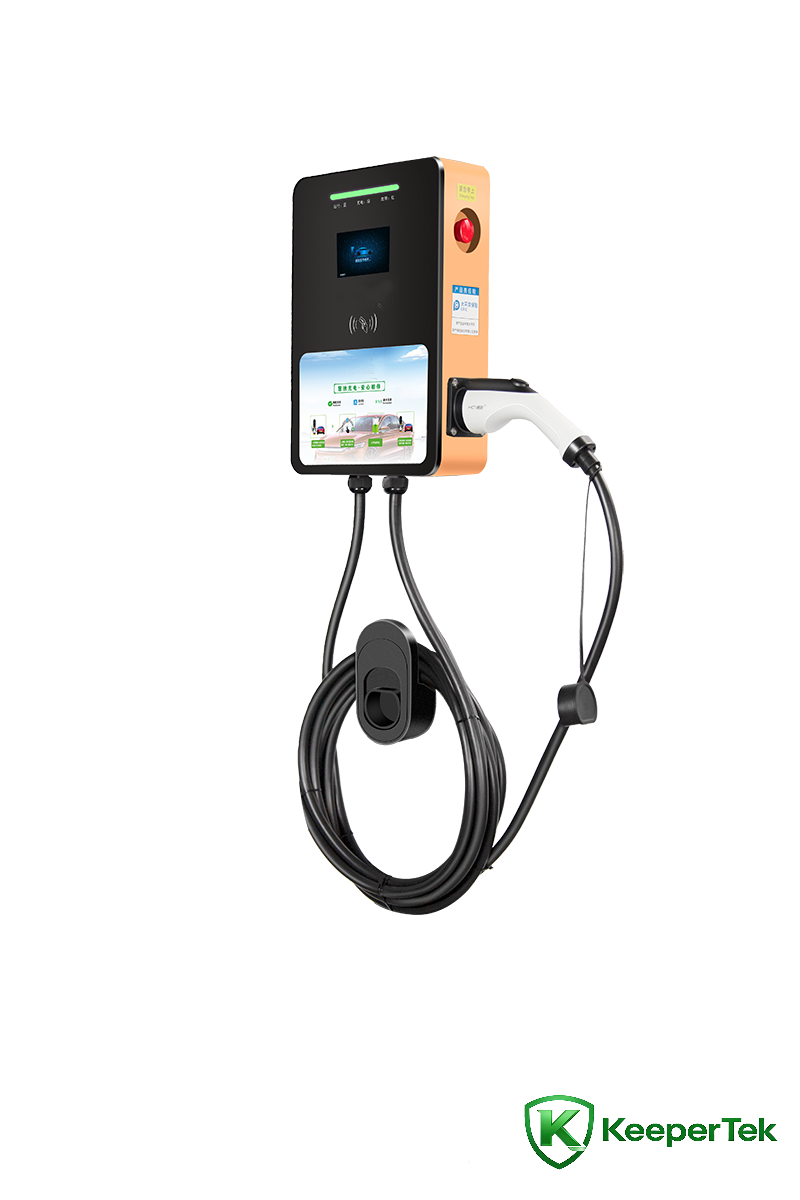

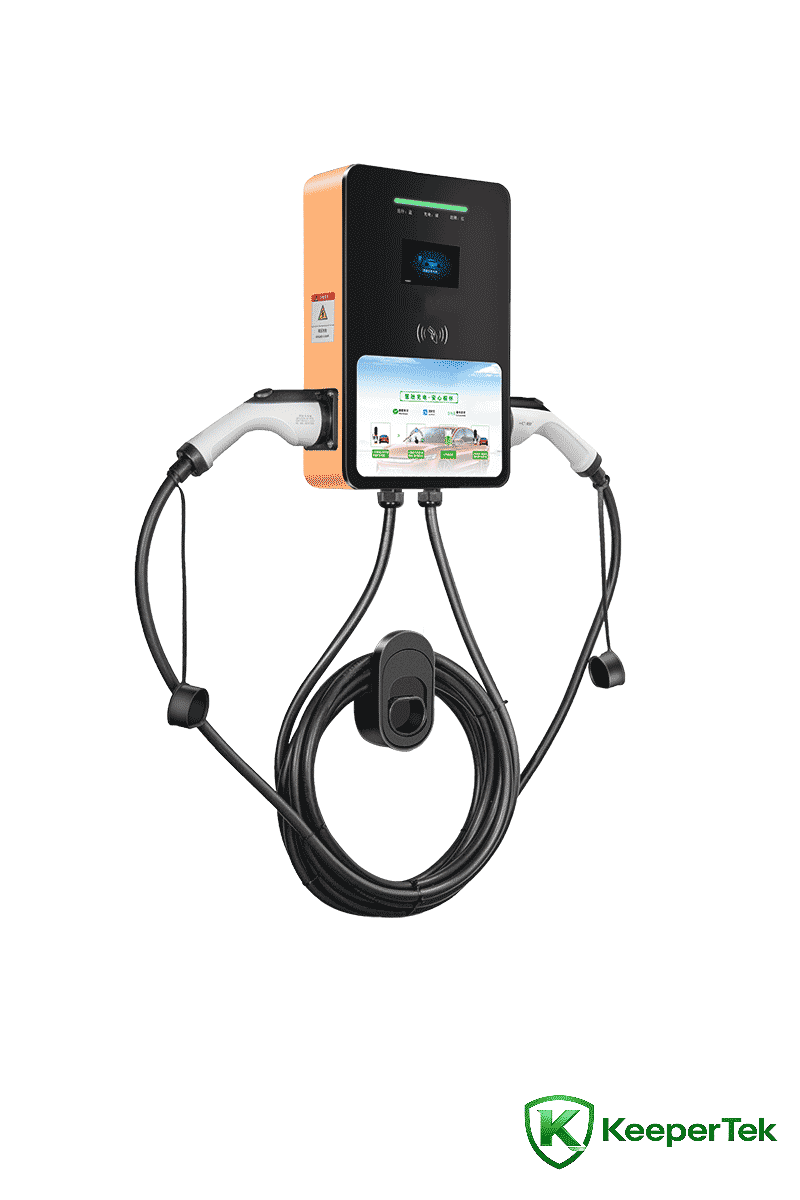

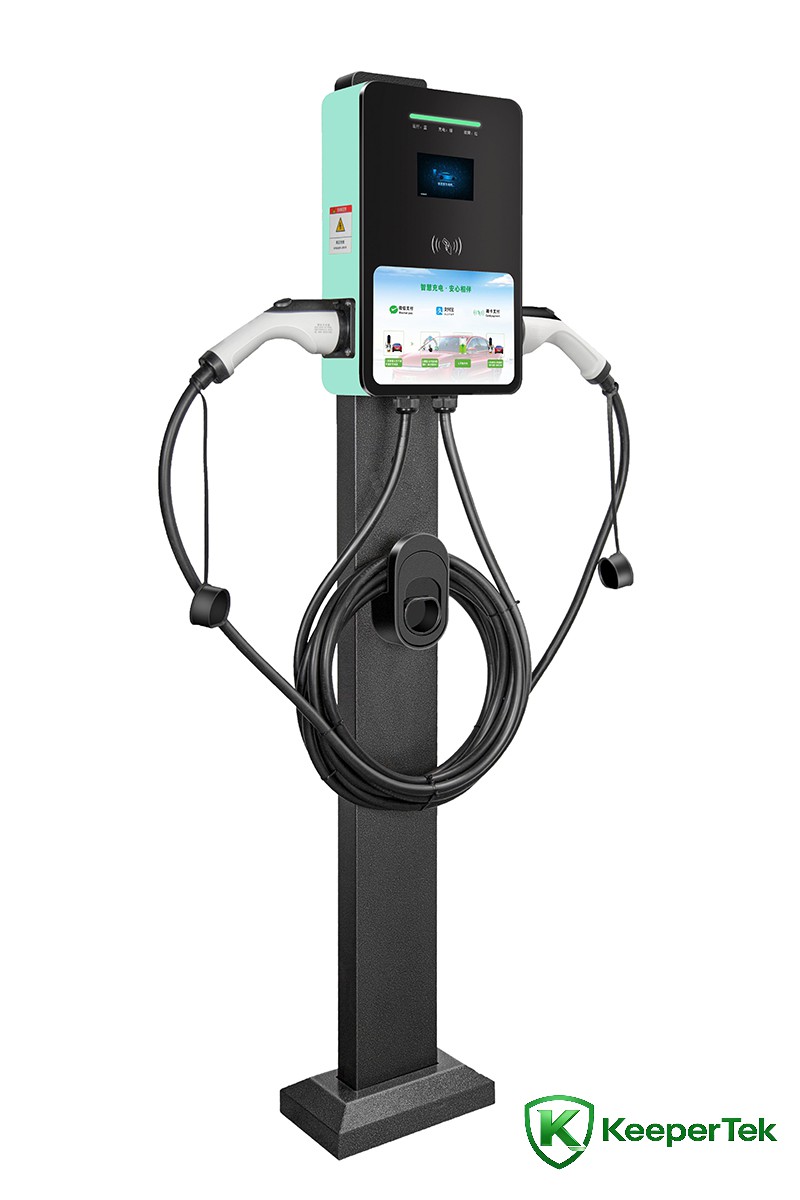

7KW/14KW Floor-standing single and double gun AC charging pile KT-HC06

Technical parameters

Appearance material: sheet metal + tempered glass:

Installation method: wall-mounted\floor-standing (with hanging column)

Wiring method: bottom in and bottom out:

*Charging cable length (m): 5m (can be customized)

Input voltage: AC220V ±15% L+N+PE (single gun)/AC380V ±15% three-phase+N+PE (double gun)

Input frequency: 50±1Hz

Rated power: 7KW*1 (single gun)/7KW*2 (double gun)

Output voltage: AC220V±15%

Maximum output current: 32A*1 (single gun)/32A*2 (double gun)

Measuring accuracy: Level 1

Current limiting protection value: 1.1 times:

Human-machine interface: 4.3-inch LCD display, LED indicator light

Operation instructions: power, charging, alarm:

Charging mode: automatic full/fixed power/fixed amount/fixed time

*Payment method: Pay by card/pay by scanning QR code (can be customized):

Metering and billing: electricity billing (accuracy level 1.0)

Communication interface: Ethernet/RS485/4G (optional):

*Data openness: Support third-party software platform access (can be customized)

*Support expansion: face recognition/license plate recognition/parking space lock/parking radar (customizable):

Implementation standards: GB/T20234.1-2015, GB/T20234.2-2015, NB/T 33008.2-2013, GB/T 29318-2012

Management features: power-off memory, settable rates, black and white lists, data communications, integrated card

Safety functions: overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, overtemperature protection, lightning protection, emergency stop protection, leakage protection

Applicable environment: indoor/outdoor

Working temperature: -20℃～+50℃

Relative humidity: 5% to 95% without condensation

Protection level: IP54

Cooling method: natural cooling

Reliability (MTBF): ≥18000h

Optional items: The above * options can be customized

Features

It has metering and billing and operation platform access functions, and supports WeChat and Alipay QR code payments. Operators can collect payments anytime and anywhere. It can be widely used in residential parking lots, urban public parking lots, and special charging stations to provide AC charging for electric vehicles. It also has advertising functions and meets market demand.

1. It has three status indicators: power, charging and fault.

2. It has functions such as emergency stop connection confirmation detection, charging door opening detection, charging gun locking, etc.

3. Simple operation: swipe your card to start charging directly/scan the QR code with your mobile phone to start charging

4. Charging function: automatic full/quantitative charging/timing charging/priced charging

5. Multi-mode operation management: local settlement operation/platform operation

6. Payment method: credit card, WeChat
