AC charging pile

7KW wall hanging/Pole type AC car charging pile KT-HC04

Technical parameters

Appearance material: ABS/PC plastic + acrylic

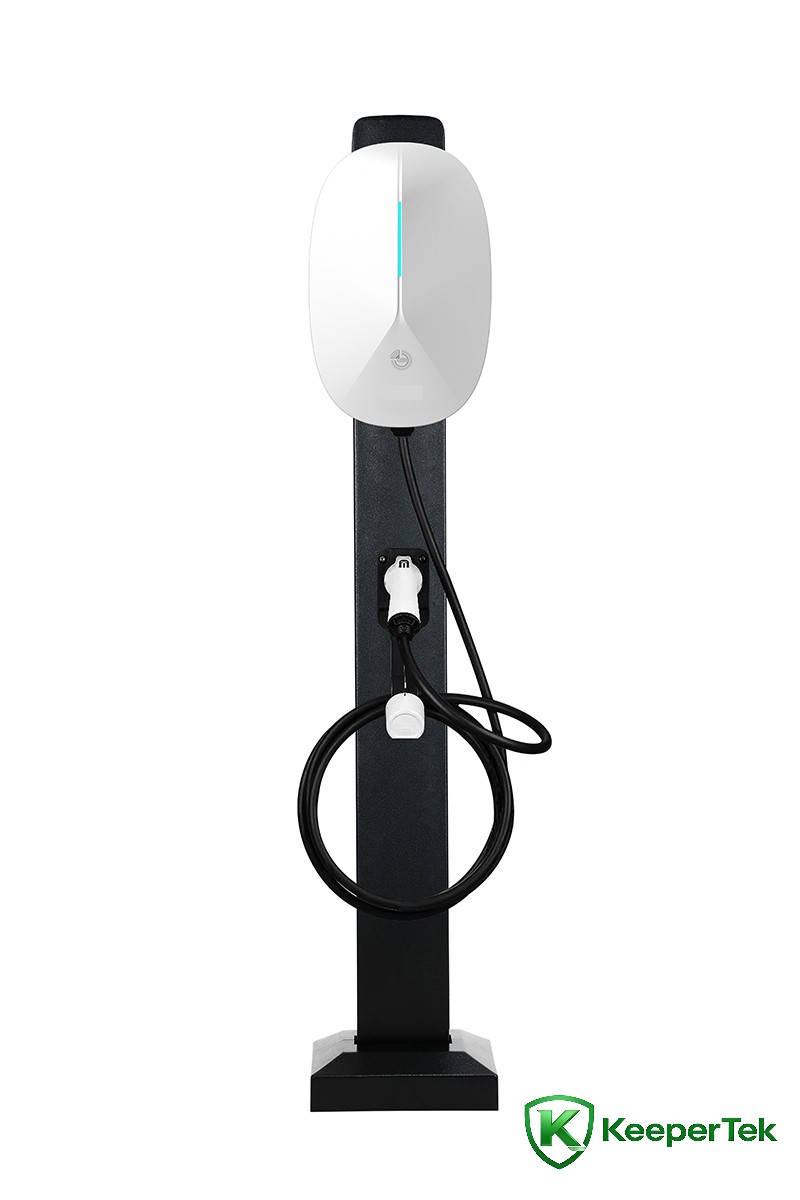

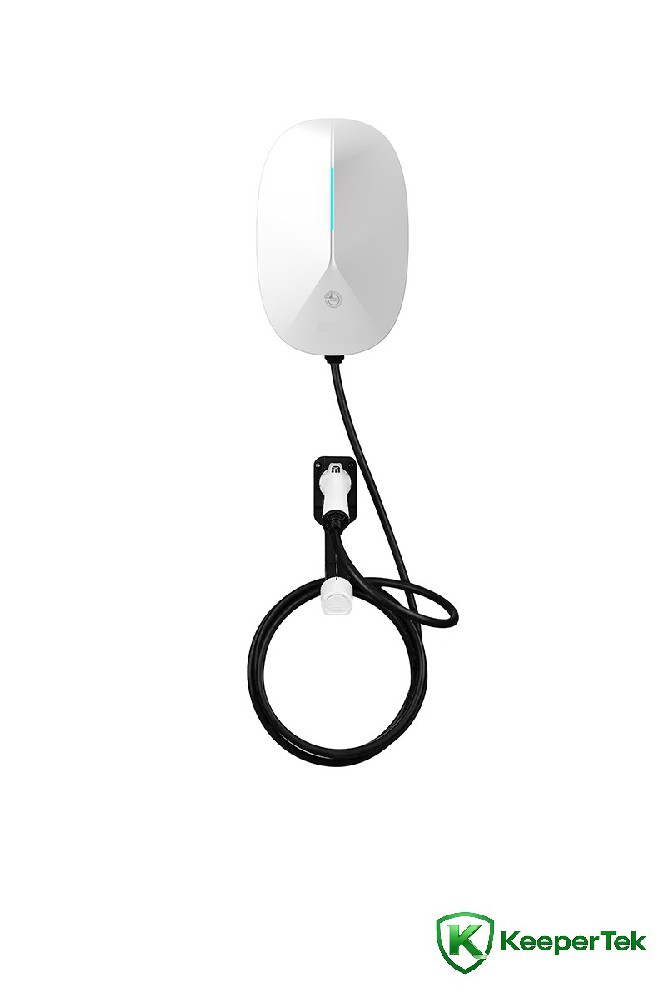

Installation method: wall-mounted\pillar type (with hanging column)

Wiring method: bottom in and bottom out

*Charging cable length (m): 5m (can be customized)

Input voltage: AC220V ±15% L+N+PE

Input frequency: 50±1Hz

Rated power: 7KW

Output voltage: AC220V±15%

Maximum output current: 32A

Measuring accuracy: Level 1

Current limiting protection value: 1.1 times

Human-machine interface: LED indicator light

Operation instructions: power, charging, alarm

Charging mode: automatic full/fixed power/fixed amount/fixed time

*Payment method: Pay by card/Scan QR code/Plug and charge/Voice control (optional)

Metering and billing: electricity billing (accuracy level 2.0)

Communication interface: Ethernet/4G (optional)

*Data openness: Support third-party software platform access (can be customized)

*Support expansion: face recognition/license plate recognition/parking space lock/parking radar (optional)

Implementation standards: GB/T20234.1-2015, GB/T20234.2-2015, NB/T 33008.2-2013, GB/T 29318-2012

Management features: settable rates, data communication, integrated card

Safety functions: overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, overtemperature protection, lightning protection, emergency stop protection, leakage protection

Applicable environment: indoor/outdoor

Working temperature: -20℃～+50℃

Relative humidity: 5% to 95% without condensation

Protection level: IP54

Cooling method: natural cooling

Reliability (MTBF): ≥18000h

Optional items: The above * options can be customized

Features

Protection level: IP54, supports outdoor use Human-machine interface: 7-inch color touch screen, charging status indication, ultra-high power density of card reader, ultra-high reliability insulation detection, connection detection, overvoltage

Overcurrent protection, emergency stop and other functions can be quickly connected to different operation management platforms and support different charging payment methods.；

1. It has three status indicators: power, charging and alarm.

2. It has functions such as emergency stop connection confirmation detection, charging door opening detection, charging gun locking, etc.

3. Simple operation: swipe the card to start charging directly/scan the QR code with your mobile phone to start charging

4. Charging function: automatic full/quantitative charging/timing charging/priced charging

5. Multi-mode operation management: local settlement operation/platform operation
