AC charging pile

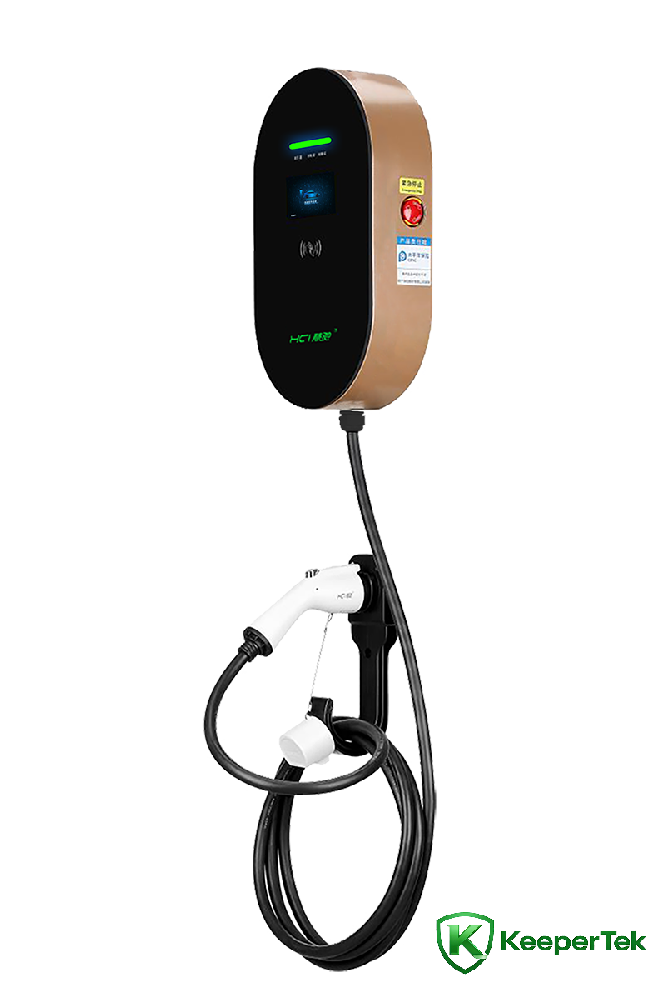

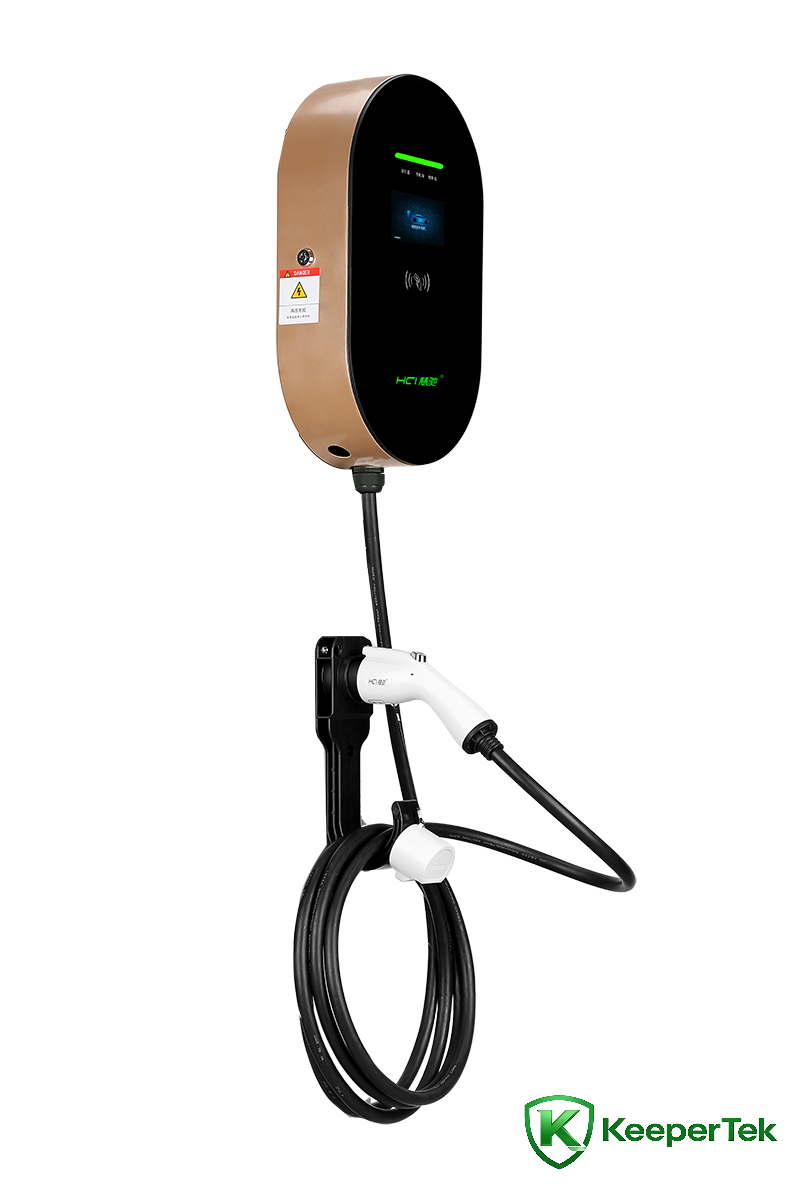

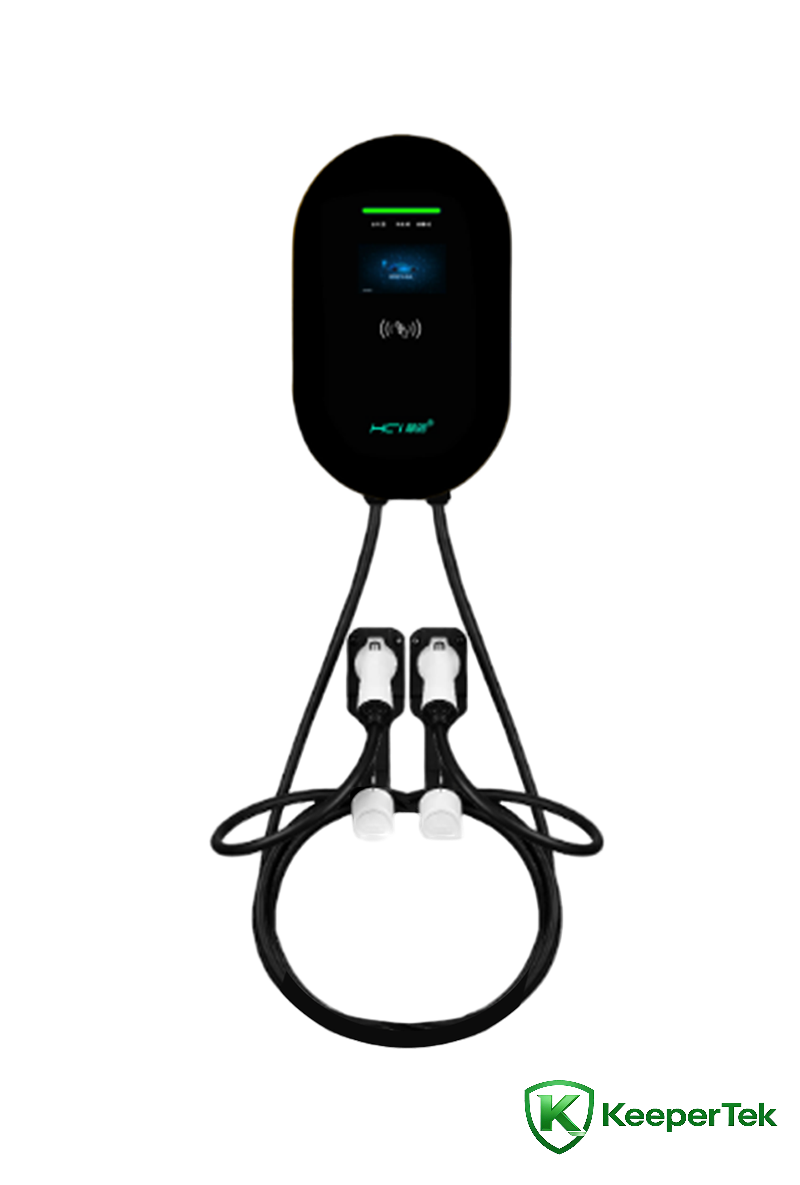

7/14/11/22KW wall-mounted Single gun and double gun AC charging pile KT-HC01

Technical parameters

Appearance material: sheet metal + tempered glass:

Installation method: wall-mounted floor-standing (optional column)

Wiring method: bottom in and bottom out:

*Charging cable length (m): 5m (can be customized)

Input voltage: AC220V±15%:

Input frequency: 50±10Hz

Rated power: 7KW/14KW/11KW/22KW:

Output voltage: AC220V±15%

Maximum output current: 32A*2:

Measuring accuracy: Level 1

Current limiting protection value: 1.1 times:

Human-machine interface: LCD display, LED indicator light

Operating instructions: power, charging, fault:

Charging mode: automatic full/fixed power/fixed amount/fixed time

*Payment method: pay by card/pay by scanning QR code (optional):

Metering and billing: time-of-use billing

Communication interface: Ethernet/4G (optional):

*Data openness: Support third-party software platform access (optional)

*Support expansion: face recognition/license plate recognition/parking space lock/parking radar (optional):

Implementation standards: GBT20234, GBT18487, NBT33008, NBT33002

Management features: power-off memory, settable rates, black and white lists, data communications, integrated card:

Safety functions: overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, overtemperature protection, lightning protection, emergency stop protection, leakage protection

Applicable environment: indoor/outdoor:

Working temperature: -20℃～+70℃

Relative humidity: 5% to 95% without condensation:

Protection level: IP54

Cooling method: natural cooling:

Reliability (MTBF): ≥18000h

Optional items: The above * options can be customized

Features

With a stylish and simple appearance, the product is highly integrated with AC charging interface, human-computer interaction interface, electrical safety design, control, measurement, safety protection and other units. It can be used with electric vehicle on-board chargers to provide multiple charging methods such as card swiping and mobile payment.

1. It has three status indicators: power, charging and fault.

2. It has functions such as emergency stop connection confirmation detection, charging door opening detection, charging gun locking, etc.

3. Simple operation: swipe the card to start charging directly/scan the QR code with your mobile phone to start charging

4. Charging function: automatic full/quantitative charging/timing charging/priced charging

5. Multi-mode operation management: local settlement operation/platform operation

6. Payment method: card payment, WeChat/Alipay payment
