Access control reader

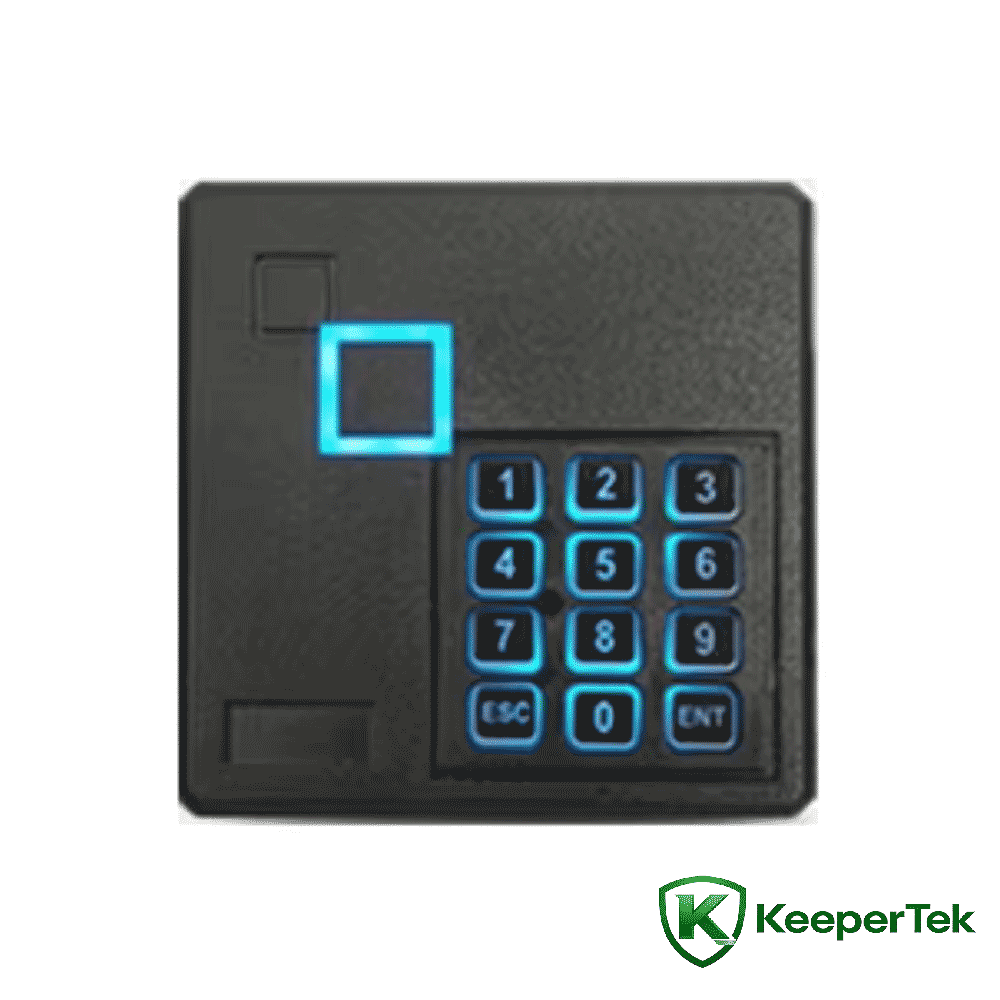

Access control password swipe card reader KT-WG05

Technical parameters

Shell material: PVC and spray plastic, black resin glue can be filled inside

Product color: black

Sensing distance: 3~15CM

Card reading speed: <0.2 seconds

Card reading type: IC card reader 125KHZ, non-contact radio frequency ID card reader

Password to open the door: supported

Support access control controller: compatible with WG26/34 access control controller

Punch interval: <0.5 seconds

Communication distance: WG≤100M, RS485≤1200M

Built-in speaker: buzzer, can control LED and buzzer

Protection against misconnection, 20CM reserved for wiring (can be extended)

Output format: WEIGAND26/WEIGAND34/RS485/RS232/ABA, etc.

Waterproof grade: IP54

Working voltage: DC9~16V

Working current: ≤100MA

Working environment: -20°C~70°C

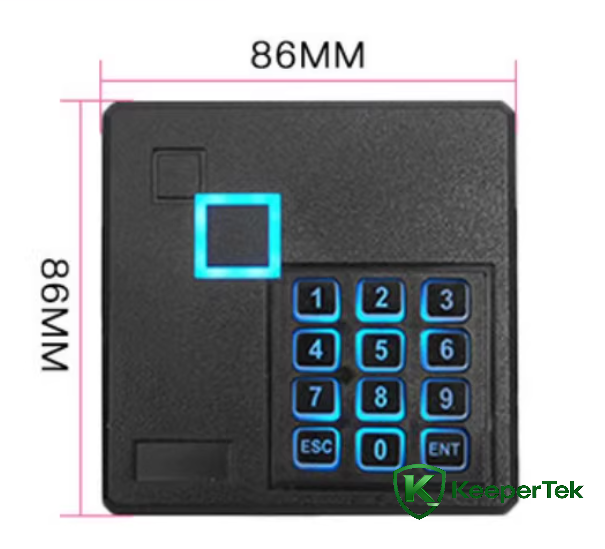

Product size: 86×86×35MM
