access controller

Single door two-way access controller KT-WG01

Technical parameters

CPU: High-speed intelligent ARM platform based on 32-bit CPU with unlimited expansion space

Number of user registration cards: 20,000

Record offline storage quantity: 100,000

Communication method: TCP/IP 10M/100/adaptive

Wiegand interface: 2 way

Door sensor input: 1 channel

Door lock unlocking: 1 way

Number of card readers that can be connected: 1 pair

Controllable door output: 1 group

Supporting power supply: 12VDC 4-7A

Circuit board power consumption: less than 200mA

Card reader input format: Wiegand 26-40 bit

Door opening delay time: 1-600 seconds adjustable

Operating environment temperature: -40 to 70 degrees Celsius

Operating environment humidity: 10-90%RH, no condensation

Function description: 1 door swipe card entry and exit button, or swipe card both in and out the door

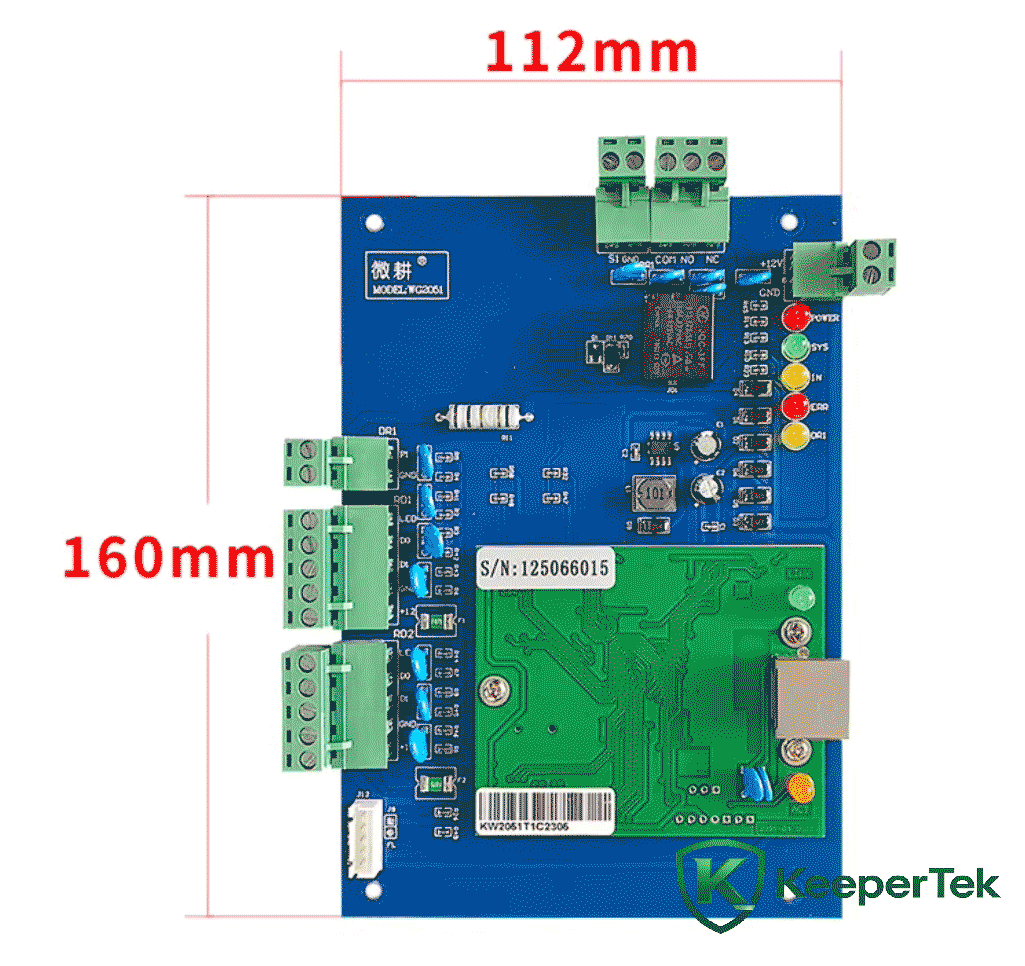

Product size: 160*112*20MM
